High-performance grade raw carbon material is used to produce this custom frame material in our own composite factory with a high stiffness-to-weight ratio. The front triangle of these framesets is assembled and molded as one continuous piece in a proprietary manufacturing process called Modified Monocoque Construction.
{{ item.Quote }}

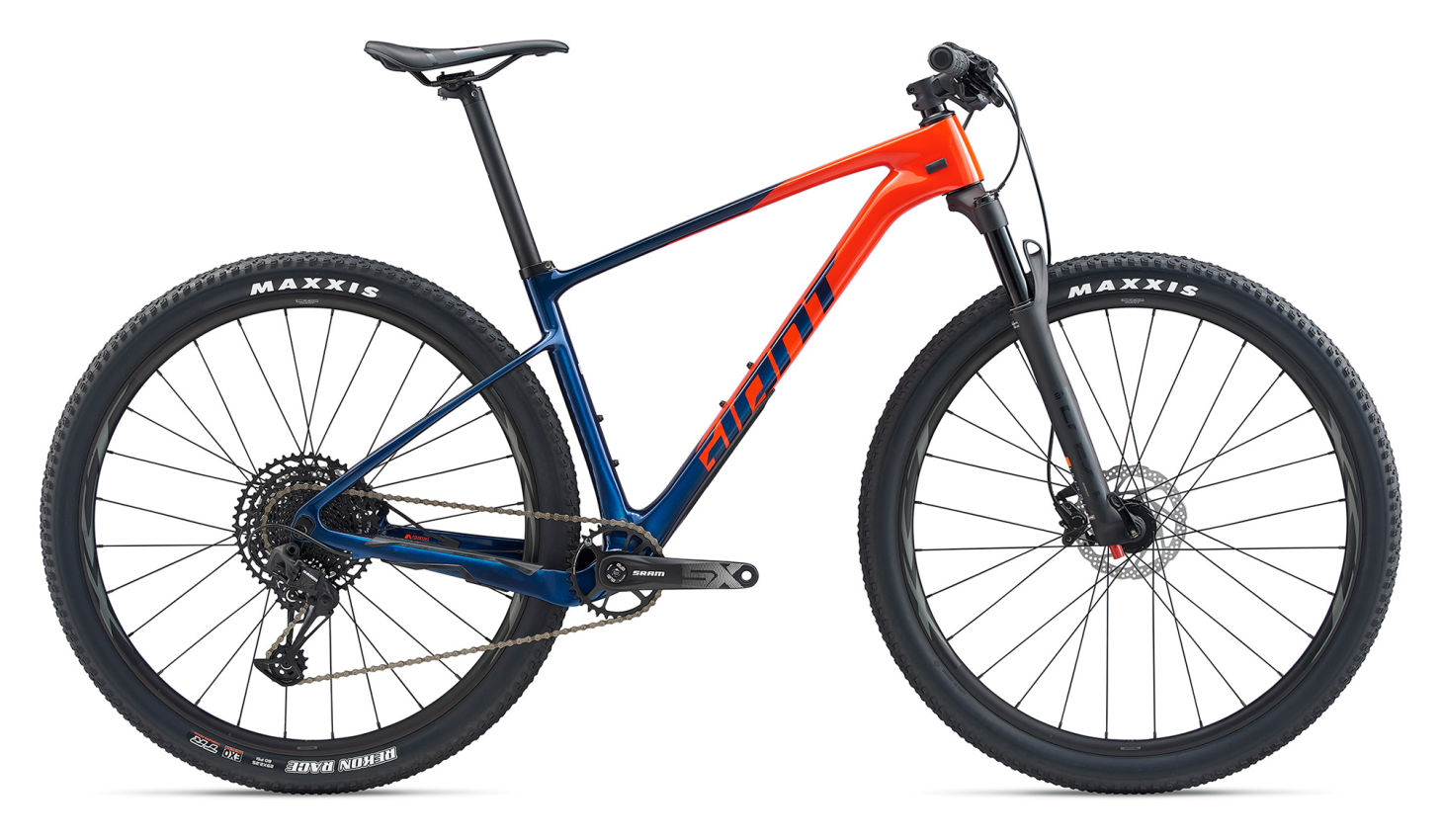

XTC
Advanced 29 3
14.999,99 kn
For pure XC speed, this composite hardtail 29er delivers responsive ride quality and maximum efficiency on fast, flowy singletrack. It’s a great choice for your weekly race series, an off-road marathon, or burning up your local XC trails.
With its large-diameter 29-inch wheels and lightweight Advanced-grade composite frame, this smooth-riding hardtail eats up XC terrain. The frameset is engineered for a 100mm fork, and it’s handcrafted with a specific composite layup schedule that varies according to frame size to create the optimal stiffness-to-weight ratio with just the right amount of vertical compliance. The result is a bike that scoots up steep climbs and gives you added confidence and control on fast, flowy singletrack. It features wider Boost hub spacing, which improves wheel stiffness and adds clearance to run larger tires, plus a host of other features that let you dial in its performance for nearly any type of terrain.
Ključni faktori
Lightweight and responsive
A hand-crafted Advanced-grade composite frameset offers XC racers and riders a competitive advantage for climbing, accelerating and sprinting.
XC efficiency
The frame is engineered with a high stiffness-to-weight-ratio, which translates to efficient pedaling power and precise handling on the trail.
Custom compliance
Each frame is custom-tuned based on its size. Individual composite lay-up schedules are created to optimize vertical compliance to produce a smoother ride quality on XC terrain.
Istaknuto
With its large-diameter 29-inch wheels and lightweight Advanced-grade composite frame, this smooth-riding hardtail eats up XC terrain. The frameset is engineered for a 100mm fork, and it’s handcrafted with a specific composite layup schedule that varies according to frame size to create the optimal stiffness-to-weight ratio with just the right amount of vertical compliance. The result is a bike that scoots up steep climbs and gives you added confidence and control on fast, flowy singletrack. It features wider Boost hub spacing, which improves wheel stiffness and adds clearance to run larger tires, plus a host of other features that let you dial in its performance for nearly any type of terrain.
1
Advanced Composite Frame
2
Optimized Tube Shaping
A completely redesigned XtC Advanced 29 frame optimizes every tube shape to shave weight, maintain stiffness and improve ride quality on XC terrain.
3
OverDrive
Giant’s original oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
4
Internal Cable Routing
Internal cable routing with fewer, yet larger ports and tool-free bottom bracket guide, ensures easy cable installation while minimizing frame weight.
5
MegaDrive
A massive rectangular downtube and oversized toptube work in unison to provide superior front end lateral and torsional steering precision. The precisely engineered, rectangular shaped downtube yields unprecedented steering and pedaling stiffness.
6
PowerCore
A massively oversized bottom-bracket/chainstay area features a fully integrated, 92-millimeter wide bottom-bracket design. Asymmetric chainstays provide additional stiffness on the driveside and stability on the non-driveside.
7
Giant Tubeless System
Integrated Tubeless WheelSystem and tires deliver improved efficiency, comfort and control in the most user-friendly and reliable system.
8
Boost Technology
Wider hub spacing (110mm front / 148mm rear) results in stiffer wheels for added control plus more tire clearance and an improved chainline for optimal drivetrain performance.
Tehnologije
OverDrive
Giant’s original oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
Tubeless System
Fewer flat tires. Greater traction. Less rolling resistance and a smoother, faster ride. Giant’s Tubeless System makes it easier than ever to experience all these benefits.
Advanced Composite Technology
Giant’s High Performance Grade raw carbon material is used to produce this custom frame material in our own composite factory with a high stiffness-to-weight ratio. The front triangle of these framesets is assembled and molded as one continuous piece in a proprietary manufacturing process called Modified Monocoque Construction.
Vodič za određivanje veličine i geometrija
Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.
- S
- 163 cm5’4”
172 cm5’8”
- M
- 171 cm5’7” 180 cm5’11”
- L
- 179 cm5’10” 188 cm6’2”
- XL
- 187 cm6’2” 198 cm6’6”
| S | M | L | XL | ||
|---|---|---|---|---|---|
| A | Dužina cijevi sjedala (mm) (inch) | 38015 | 43117 | 47518,7 | 52520,7 |
| B | Kut cijevi sjedala (degrees) | 73,5° | 73,5° | 73,5° | 73,5° |
| C | Dužina gornje cijevi (mm) (inch) | 59523,4 | 61424,2 | 63525 | 66526,2 |
| D | Dužina prednje cijevi (mm) (inch) | 953,7 | 953,7 | 1054,1 | 1154,5 |
| E | Kut vilice (degrees) | 69,5° | 69,5° | 70,0° | 70,0° |
| F | Zakrivljenost vilice (offset) (mm) (inch) | 431,7 | 431,7 | 431,7 | 431,7 |
| G | Staza (mm) (inch) | 94,93,7 | 94,93,7 | 94,93,7 | 94,93,7 |
| H | Međuosovinski razmak kotača (mm) (inch) | 108742,8 | 110643,5 | 112844,4 | 115945,6 |
| I | Dužina od osovine pogona do osovine zadnjeg kotača (CS) (mm) (inch) | 42516,7 | 42516,7 | 42516,7 | 42516,7 |
| J | Položaj osovine pogona (mm) (inch) | 582,3 | 582,3 | 582,3 | 582,3 |
| K | Vertikalna dužina od osovine pogona do glave okvira (stack) (mm) (inch) | 60423,8 | 60423,8 | 61324,1 | 63224,9 |
| L | Horizontalna dužina od osovine pogona do glave okvira (reach) (mm) (inch) | 41616,4 | 43517,1 | 43517,1 | 47718,8 |
| M | Prekoračna visina (mm) (inch) | 73729 | 76430,1 | 79131,1 | 82932,6 |
| N | Širina volana (mm) (inch) | 78030,7 | 78030,7 | 78030,7 | 78030,7 |
| O | Dužina lule volana (mm) (inch) | 602,4 | 702,8 | 803,1 | 903,5 |
| P | Dužina poluge pedale (mm) (inch) | 1706,7 | 1756,9 | 1756,9 | 1756,9 |
| Q | Veličina kotača | 29" | 29" | 29" | 29" |
Sve navedene specifikacije podložne su promjeni bez prethodne najave.
