Trance Advanced Pro 29 1

Koja je moja veličina?

Podjelite

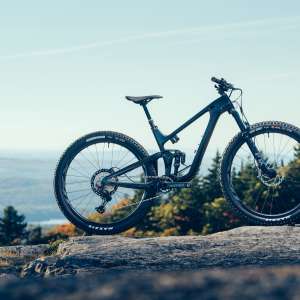

Shred hard and shred fast with this lively 29er. It’s built on an all-new full-composite frame with adjustable geometry, giving you smooth control to blitz technical trails at speed.

Ključni faktori

Adjustable frame geometry

New flip chip feature lets you change the head tube and seat tube angles, as well as the bottom bracket height, to fine-tune handling for varying trail conditions and individual riding style.

29er confidence and control

Larger 29-inch diameter wheels optimized to roll over rough terrain with balance and stability, giving you the momentum to tackle technical climbs and the confidence to fly on fast, rugged singletrack descents.

Progressive trail design

Lightweight Advanced-grade composite frameset features a longer reach and steeper seat tube for aggressive trail riding and improved climbing capabilities. Updated Maestro rear suspension features 120mm of rear wheel travel paired with a 130mm fork up front.

Specifikacije
  • Veličine
    S, M, L, XL
  • Boje
    Carbon / Black Diamond / Chrome
  • Okvir
    Advanced-Grade Composite front and rear triangles, 120mm Maestro suspension, flip chip, 12x148mm thru-axle
  • Vilica
    Fox 34 Performance Elite Live Valve, 130mm, FIT4 damper, Boost 15x110 Kabolt, 44mm offset, custom tuned for Giant
  • Amortizer
    Fox Performance Elite Live Valve, 185/50, custom tuned for Giant
  • Volan
    Giant Contact SLR TR35, composite, 780x35mm
  • Grips
    Giant Tactal Pro Single S:120mm, M:120mm, L:130mm, XL:130mm
  • Lula volana
    Giant Contact SL 35 S:40mm, M:40mm, L:50mm, XL:50mm
  • Cijev sjedala
    TranzX travel-adjustable dropper, remote S: 120-150mm travel / 30.9 x 459mm M: 140-170mm travel / 30.9 x 499mm L: 170-200mm travel / 30.9 x 525mm XL: 170-200mm travel / 30.9 x 525mm
  • Sjedalo
    Giant Romero SL
  • Pedale
    N/A
  • Ručice mjenjača
    Shimano Deore XT SL-M8100, 1x12
  • Prednji mjenjač
    N/A
  • Stražnji mjenjač
    Shimano Deore XT RD-M8100
  • Kočnice
    Shimano Deore XT BR-M8120, hydraulic, Shimano RT-66 rotors [F]180mm, [R]180mm
  • Ručice kočnica
    Shimano Deore XT BL-M8100
  • Kazeta
    Shimano Deore XT M8100, 10x51
  • Lanac
    KMC X-12
  • Pogon
    Praxis Girder Carbon, 30t S:165mm, M:170mm, L:170mm, XL:170mm
  • Osovina pogona (BB)
    Shimano, press fit
  • Obruči
    Giant TRX 2 Carbon 29 WheelSystem
  • Nabe
    Giant TRX 2 Carbon 29 WheelSystem
  • Žbice
    Giant TRX 2 Carbon 29 WheelSystem
  • Gume
    [F] Maxxis Minion DHF 29x2.5 WT, 3C MaxxTerra, EXO, TR [R] Maxxis Aggressor 29x2.5, EXO, TR, tubeless
  • Dodaci
    tubeless prepared, 2.6" max tire size, 34t max chainring size
  • Težina
    Koliko je težak ovaj bicikl? To je vrlo često i dobro pitanje. Ali, istina je, da zapravo nema pravog industrijskog standarda za definiranje težine bicikla te upravo zbog toga dolazi do raznih dezinformacija. Razlike postoje zbog različitih veličina okvira, materijala okvira, završne obrade i ostalih komponenti. Što je bicikl lakši to su ove razlike važnije. U GIANTu vjerujemo da je jedini ispravan način da saznate točnu težinu bicikla da ga izvažete kod vašeg prodavača bicikala.

Sve navedene specifikacije podložne su promjeni bez prethodne najave.

Istaknuto

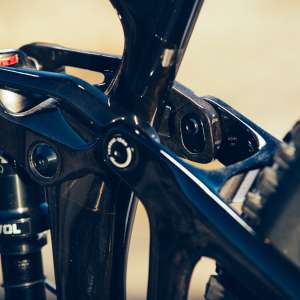

This versatile trail bike features a full composite frame fitted with a new Maestro suspension system that offers 5mm more travel than the previous generation. The Advanced Forged Composite rocker arm has a flip chip that allows you to adjust frame geometry. Choose steeper or slacker head tube and seat tube angles and either a 35mm or 45mm bottom bracket drop to adjust the handling for your riding style and terrain.

Trance Advanced Pro 29 with interactive tooltips

Vodič za određivanje veličine i geometrija

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  • S
      163 cm5’4”  to 172 cm5’8”
  • M
      171 cm5’7”  to 180 cm5’11”
  • L
      179 cm5’10”  to 188 cm6’2”
  • XL
      187 cm6’2”  to 198 cm6’6”
bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  SMLXL
  LOW | HIGHLOW | HIGHLOW | HIGHLOW | HIGH
ADužina cijevi sjedala (mm) (inch)42016,543016,946518,349619,5
BKut cijevi sjedala (degrees)77,2° | 78,0°76,3° | 77,0°76,3° | 77,0°76,3° | 77,0°
CDužina gornje cijevi (mm) (inch)56122,1 | 5592259923,6 | 59723,562624,6 | 62424,666326,1 | 66126
DDužina prednje cijevi (mm) (inch)1003,91104,31204,71305,1
EKut vilice (degrees)65,4° | 66,2°65,5° | 66,2°65,5° | 66,2°65,5° | 66,2°
FZakrivljenost vilice (offset) (mm) (inch)441,7441,7441,7441,7
GStaza (mm) (inch)1265 | 1204,71265 | 1204,71265 | 1204,71265 | 1204,7
HMeđuosovinski razmak kotača (mm) (inch)116645,9 | 116545,9119547 | 119447122448,2 | 122348,1126349,7 | 126249,7
IDužina od osovine pogona do osovine zadnjeg kotača (CS) (mm) (inch)43917,3 | 43717,243917,3 | 43717,243917,3 | 43717,243917,3 | 43717,2
JPoložaj osovine pogona (mm) (inch)451,8 | 351,4451,8 | 351,4451,8 | 351,4451,8 | 351,4
KVertikalna dužina od osovine pogona do glave okvira (stack) (mm) (inch)61024 | 60423,861924,4 | 61324,162824,7 | 62224,563725,1 | 63124,8
LHorizontalna dužina od osovine pogona do glave okvira (reach) (mm) (inch)42216,6 | 43016,944717,6 | 45517,947218,6 | 48018,950720 | 51520,3
MPrekoračna visina (mm) (inch)72928,7 | 7372972328,5 | 73228,874629,4 | 75529,775129,6 | 76029,9
NŠirina volana (mm) (inch)78030,778030,778030,778030,7
ODužina lule volana (mm) (inch)401,6401,6502502
PDužina poluge pedale (mm) (inch)1656,51706,71706,71706,7
QVeličina kotača 29"29"29"29"

Tehnologije

Advanced Composite Technology
Advanced Forged Composite Technology
Maestro Suspension Technology
OverDrive
Tubeless System
Flip Chip - Maestro
PowerCore
