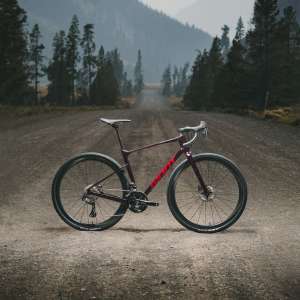

Revolt Advanced Pro 1

Koja je moja veličina?

Podjelite

Now lighter, smoother and more adaptable to variable terrain, this all-new, ready-for-anything gravel bike combines ultra-efficient performance with next-level control.

Ključni faktori

Lightweight efficiency

New Advanced composite frame and Advanced SL composite fork save a combined 200 grams compared to previous generation. Updated geometry includes a lower bottom bracket, longer reach, and steeper headtube angle for improved acceleration and climbing.

Tuned compliance

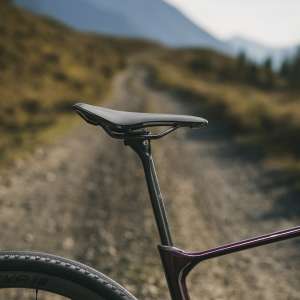

New frame features a lower seatstay junction with smaller diameter tubes to absorb road shocks and vibrations. Contact SLR D-Fuse carbon handlebar and D-Fuse seatpost work as a system to optimize compliance without sacrificing stiffness while cornering, sprinting or climbing.

Adaptable to the terrain

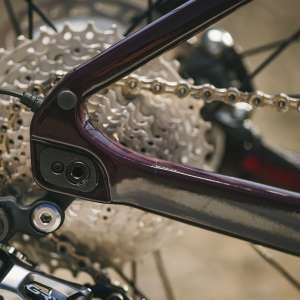

A flip chip on the rear dropout adjusts the wheelbase short for quicker handling, or long for improved stability at speed. The long setting also allows for larger diameter tires up to 53mm. You can choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.

Specifikacije
  • Veličine
    XS, S, M, M/L, L, XL
  • Boje
    Matte Carbon / Gloss Black
  • Okvir
    Advanced-Grade Composite, 12x142mm thru-axle, disc, flip chip dropout
  • Vilica
    Advanced SL-Grade Composite, full-composite OverDrive steerer, 12mm thru-axle, disc
  • Amortizer
    N/A
  • Volan
    Giant Contact SLR XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
  • Grips
    Stratus Lite 3.0
  • Lula volana
    Giant Contact, 8-degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
  • Cijev sjedala
    Giant D-Fuse SLR, composite, -5/+15mm offset
  • Sjedalo
    Giant Approach SL
  • Pedale
    N/A
  • Ručice mjenjača
    SRAM Rival eTap AXS, 2x12
  • Prednji mjenjač
    SRAM Rival eTap AXS
  • Stražnji mjenjač
    SRAM Rival eTap AXS
  • Kočnice
    SRAM Rival eTap AXS hydraulic, SRAM PaceLine rotors [F]160mm, [R]160mm
  • Ručice kočnica
    SRAM Rival eTap AXS hydraulic
  • Kazeta
    SRAM Rival, 12-speed, 10x33
  • Lanac
    SRAM Rival D1
  • Pogon

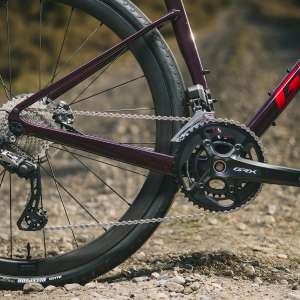

    SRAM Rival D1 DUB, 30/43 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
  • Osovina pogona (BB)
    SRAM DUB, press fit
  • Obruči
    Giant CXR 1 Carbon Disc WheelSystem
  • Nabe
    Giant CXR 1 Carbon Disc WheelSystem
  • Žbice
    Giant CXR 1 Carbon Disc WheelSystem
  • Gume
    Maxxis Receptor, 700x40c, tubeless
  • Dodaci
    tubeless prepared, 53mm max tire size in "long" flip chip position, 42mm max tire size in "short" flip chip position
  • Težina
    Koliko je težak ovaj bicikl? To je vrlo često i dobro pitanje. Ali, istina je, da zapravo nema pravog industrijskog standarda za definiranje težine bicikla te upravo zbog toga dolazi do raznih dezinformacija. Razlike postoje zbog različitih veličina okvira, materijala okvira, završne obrade i ostalih komponenti. Što je bicikl lakši to su ove razlike važnije. U GIANTu vjerujemo da je jedini ispravan način da saznate točnu težinu bicikla da ga izvažete kod vašeg prodavača bicikala.

Sve navedene specifikacije podložne su promjeni bez prethodne najave.

Istaknuto

This race-ready gravel machine is built on a lightweight Advanced-grade composite frameset with updated geometry that makes it perfect for tackling variable terrain with greater efficiency and control. The all-new, lighter weight Advanced SL composite fork eats up bumps. The latest Revolt range is now more adaptable to your riding style and routes, with a new flip chip feature on the rear dropout that makes it quick and easy to adjust wheelbase and tire clearance. With its new seatpost adaptor, you can now choose to ride with the included D-Fuse composite seatpost for maximum compliance, or switch to a 30.9mm round seatpost or dropper post.

Revolt Advanced Pro with interactive tooltips

Vodič za određivanje veličine i geometrija

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  • XS
      155 cm5’1”  to 166 cm5’5”
  • S
      159 cm5’3”  to 171 cm5’7”
  • M
      169 cm5’7”  to 181 cm5’11”
  • ML
      174 cm5’9”  to 186 cm6’1”
  • L
      179 cm5’10”  to 191 cm6’3”
  • XL
      189 cm6’2”  to 200 cm6’7”
bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  XSSMMLLXL
  SHORT | LONGSHORT | LONGSHORT | LONGSHORT | LONGSHORT | LONGSHORT | LONG
ADužina cijevi sjedala (mm) (inch)43016,945017,747018,549019,351020,153020,9
BKut cijevi sjedala (degrees)74,0°73,5°73,5°73,0°73,0°73,0°
CDužina gornje cijevi (mm) (inch)54021,355021,75602257522,65852360023,6
DDužina prednje cijevi (mm) (inch)1254,91355,31505,91656,51807,11957,7
EKut vilice (degrees)70,0°71,0°71,5°72,0°72,0°72,0°
FZakrivljenost vilice (offset) (mm) (inch)502502502502502502
GStaza (mm) (inch)783,1 | 823,2722,8 | 753682,7 | 722,8652,6 | 682,7652,6 | 682,7652,6 | 682,7
HMeđuosovinski razmak kotača (mm) (inch)102440,3 | 103440,7102040,2 | 103040,6102640,4 | 103640,8103140,6 | 104141104141 | 105141,4105641,6 | 106642
IDužina od osovine pogona do osovine zadnjeg kotača (CS) (mm) (inch)42516,7 | 43517,142516,7 | 43517,142516,7 | 43517,142516,7 | 43517,142516,7 | 43517,142516,7 | 43517,1
JPoložaj osovine pogona (mm) (inch)803,1 | 813,2803,1 | 813,2803,1 | 813,2803,1 | 813,2803,1 | 813,2803,1 | 813,2
KVertikalna dužina od osovine pogona do glave okvira (stack) (mm) (inch)55621,957022,458623,160223,761624,363024,8
LHorizontalna dužina od osovine pogona do glave okvira (reach) (mm) (inch)381153811538715,239115,439715,640716
MPrekoračna visina (mm) (inch)72428,5 | 73128,874029,1 | 74729,475729,8 | 76430,177430,5 | 78030,779131,1 | 79731,480731,8 | 81432
NŠirina volana (mm) (inch)42016,542016,544017,344017,346018,146018,1
ODužina lule volana (mm) (inch)502602,4702,8803,1803,1903,5
PDužina poluge pedale (mm) (inch)1706,71706,7172,56,8172,56,81756,91756,9
QVeličina kotača 700C700C700C700C700C700C

Tehnologije

Advanced Composite Technology
D-Fuse Technology
OverDrive
Tubeless System
MegaDrive
PowerCore
Flip Chip - Dropout

Sve navedene specifikacije podložne su promjeni bez prethodne najave.
