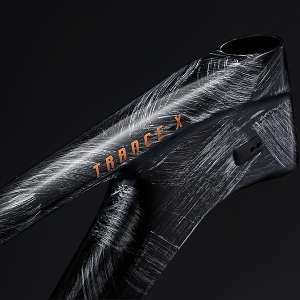

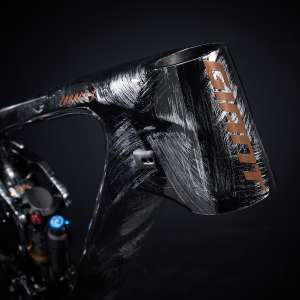

High-performance grade raw carbon fiber and custom resin is used to produce this high-quality frame in Giant’s own composite factory. Handcrafted monocoque construction makes it extremely lightweight, stiff and compliant.
{{ productAwardLocalized.Quote }}
Extra travel, extra fun. From rowdy enduro runs to backcountry missions on steep, chunky singletrack, this new composite 29er builds on the Trance 29 platform with beefed up suspension and adjustable frame geometry.

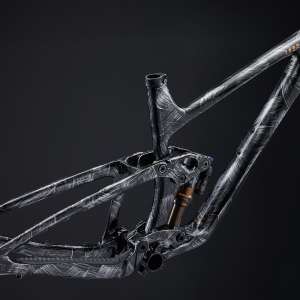

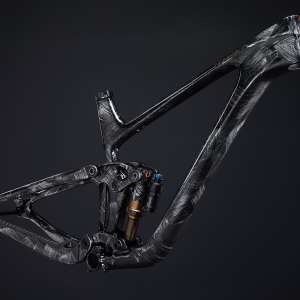

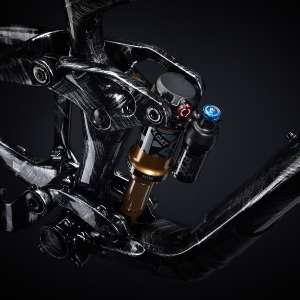

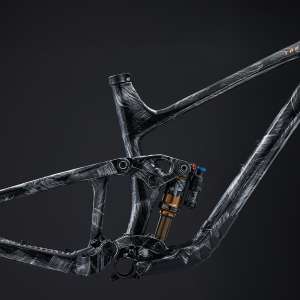

This new member of the Trance family is designed with a longer travel suspension setup for added control on the most challenging trails. The full composite frame is engineered for 135mm of rear travel and 150mm up front. The Maestro rear suspension has a two-stage adjustable Advanced Forged Composite rocker arm with a trunnion-mount shock. The flip-chip equipped rocker arm lets you adjust frame geometry for your own riding style and terrain. To fine tune the ride, you can choose a steeper or slacker headtube angle (66.2 or 65.5 degrees) and seattube angle (77.9 or 77.2 degrees), which results in either a 30mm or 40mm bottom bracket drop. And it’s all built around 29-inch wheels for added stability on rugged terrain.
Key Performance Factors
29er Confidence and Control
Optimized Maestro suspension for 29-inch wheels with 135mm rear/ 150mm front travel to roll over rough terrain with balance and stability, giving you more momentum for technical climbs and the confidence to fly on fast, rugged singletrack descents. Added clearance for up to 2.5-inch tires.
Full Composite Construction
Mainframe and rear swingarm are engineered with proprietary material featuring high-performance carbon fiber and resin. Handcrafted monocoque construction makes it lightweight, stiff and compliant.
Adjustable Frame Geometry
Flip chip lets you change the headtube and seattube angles, along with the bottom bracket height, to fine-tune the handling. You can choose the low position (65.5/77.2 head/seattube angle and 40mm BB drop) for faster, open terrain or high (66.2/77.9 head/seattube angle and 30mm drop) for slower, tighter singletrack.
Highlights
This full-composite, fully capable trail frame is engineered with a longer-travel Maestro suspension system and progressive geometry that you can fine tune with a flip chip to suit your riding style and terrain. Here’s a look at the key technologies in the new Trance X Advanced Pro 29 frame.
Sizing Guide and Geometry
Sizing to be used as a reference only. Please check with a local authorized Liv or Giant dealer to determine the correct size.
Available sizes may vary from country to country.
- S
- 163 cm5’4”
172 cm5’8”
- M
- 171 cm5’7” 180 cm5’11”
- L
- 179 cm5’10” 188 cm6’2”
- XL
- 187 cm6’2” 196 cm6’5”
| S | M | L | XL | ||
|---|---|---|---|---|---|
| LOW | HIGH | LOW | HIGH | LOW | HIGH | LOW | HIGH | ||
| A | Seat Tube Length (mm) (inch) | 43016,9 | 43016,9 | 46518,3 | 49619,5 |
| B | Seat Tube Angle (degrees) | 77,2° | 77,9° | 77,2° | 77,9° | 77,2° | 77,9° | 77,2° | 77,9° |
| C | Top Tube Length (mm) (inch) | 56622,3 | 56422,2 | 59723,5 | 59523,4 | 62924,8 | 62724,7 | 65625,8 | 65425,7 |
| D | Head Tube Length (mm) (inch) | 953,7 | 1003,9 | 1104,3 | 1204,7 |
| E | Head Tube Angle (degrees) | 65,5° | 66,2° | 65,5° | 66,2° | 65,5° | 66,2° | 65,5° | 66,2° |
| F | Fork Rake (mm) (inch) | 441,7 | 441,7 | 441,7 | 441,7 |
| G | Trail (mm) (inch) | 125,14,9 | 119,54,7 | 125,14,9 | 119,54,7 | 125,14,9 | 119,74,7 | 125,14,9 | 119,54,7 |
| H | Wheelbase (mm) (inch) | 117346,2 | 117146,1 | 120547,4 | 120347,4 | 123948,8 | 123848,7 | 126849,9 | 126649,8 |
| I | Chain Stay Length (mm) (inch) | 43817,2 | 43517,1 | 43817,2 | 43517,1 | 43817,2 | 43517,1 | 43817,2 | 43517,1 |
| J | Bottom Bracket Drop (mm) (inch) | 401,6 | 301,2 | 401,6 | 301,2 | 401,6 | 301,2 | 401,6 | 301,2 |
| K | Stack (mm) (inch) | 61724,3 | 61124,1 | 62124,4 | 61524,2 | 63124,8 | 62424,6 | 64025,2 | 63425 |
| L | Reach (mm) (inch) | 42616,8 | 43417,1 | 45618 | 46418,3 | 48619,1 | 49419,4 | 51020,1 | 51920,4 |
| M | Stand Over Height (mm) (inch) | 72928,7 | 73829,1 | 72928,7 | 73729 | 75229,6 | 76130 | 76029,9 | 77030,3 |
| N | Handlebar Width (mm) (inch) | 80031,5 | 80031,5 | 80031,5 | 80031,5 |
| O | Stem Length (mm) (inch) | 401,6 | 401,6 | 502 | 502 |
| P | Crank Length (mm) (inch) | 1656,5 | 1706,7 | 1706,7 | 1706,7 |
| Q | Wheel Size | 29" | 29" | 29" | 29" |
