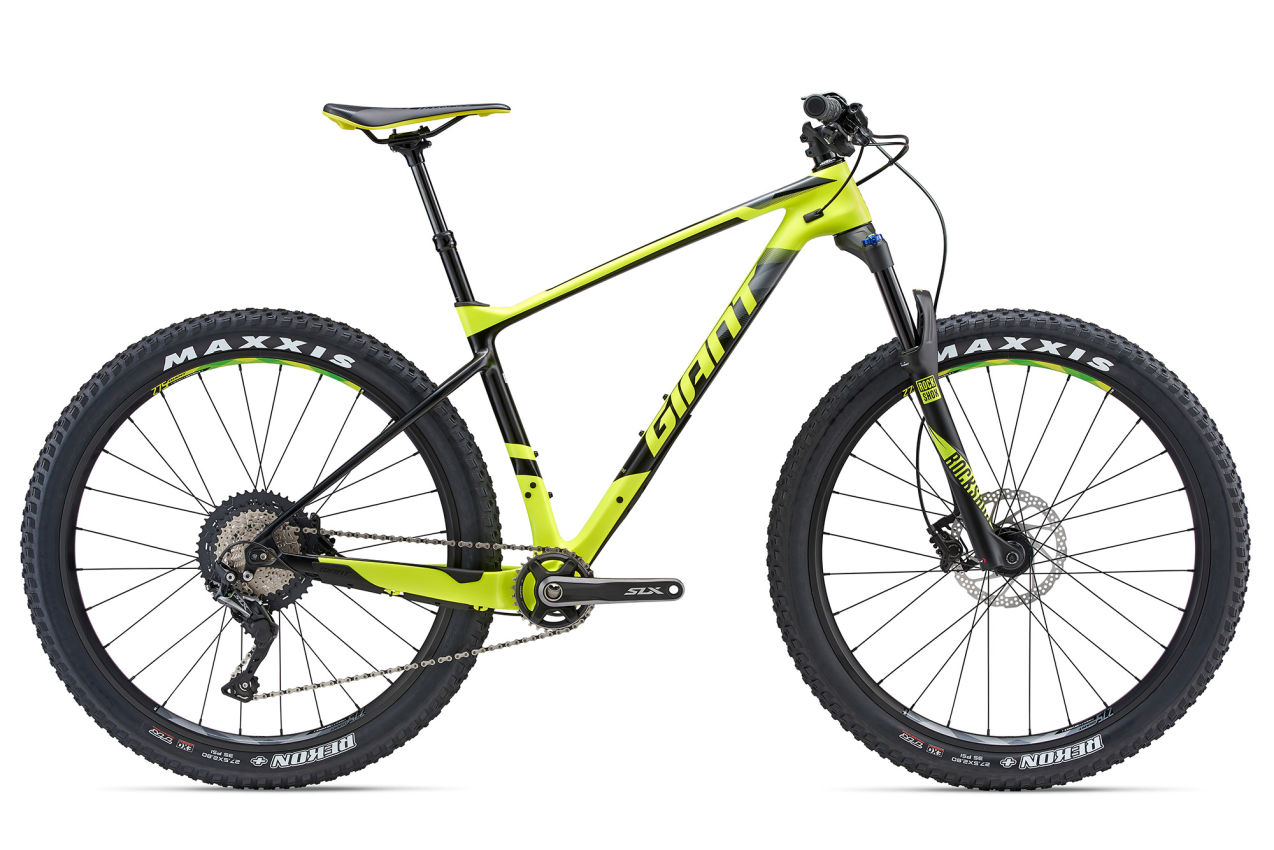

XTC Advanced + 2

2018

UNLIMITED OPTIONS FOR XC AND TRAIL ADVENTURES. THIS HARDTAIL COMBINES SPEED AND EFFICIENCY WITH THE ADDED CONTROL OF 27.5+.

Handcrafted with superlight Advanced grade composite, this versatile hardtail opens a world of opportunity for off-road performance. With its 27.5+ wheel setup, it’s perfect for rough and rowdy singletrack adventures. It can also be transformed into a race-oriented 29er, or even a singlespeed setup*. It’s designed with quick and stable frame geometry that’s optimized for a 120mm suspension fork, and features wider Boost hub spacing to improve wheel stiffness and add tyre clearance. Tubeless ready.

* Fork compatibility may vary. Please check with your local Giant authorized dealer.

  • Advanced-grade carbon composite frame with horizontal dropouts
  • RockShox Judy Gold RL 120mm-travel fork with Boost thru-axle
  • Shimano SLX 1x11-speed drivetrain
  • Shimano MT500 hydraulic disc brakes
  • Giant GE35 wheelset with Maxxis Rekon+ 27.5x2.8 tubeless tires
  • Colour: Satin/Neon Yellow/Black

Techs & Features

Advanced Composite Technology
OverDrive

Geometry

bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  SMLXL
ASeat Tube Length (mm) (inch)39015.444017.349019.353521.1
BSeat Tube Angle (degrees)72.0°71.5°71.0°71.0°
CTop Tube Length (mm) (inch)58823.160823.962824.764825.5
DHead Tube Length (mm) (inch)953.7953.71054.11154.5
EHead Tube Angle (degrees)69.0°69.0°69.0°69.0°
FFork Rake (mm) (inch)512512512512
GTrail (mm) (inch)883.5883.5883.5883.5
HWheelbase (mm) (inch)109343110743.6112144.1114245
IChain Stay Length (mm) (inch)43317433174331743317
JBottom Bracket Drop (mm) (inch)552.2552.2552.2552.2
KStack (mm) (inch)61824.361824.362824.763725.1
LReach (mm) (inch)38815.340315.941416.343117
MStand Over Height (mm) (inch)74029.176430.179631.382632.5
NHandlebar Width (mm) (inch)78030.778030.778030.778030.7
OStem Length (mm) (inch)401.6502602.4702.8
PCrank Length (mm) (inch)1706.71756.91756.91756.9
QWheel Size 27.5+27.5+27.5+27.5+
Specs
  • Sizes
    S, M, L, XL
  • Colours
    Satin Neon Yellow / Satin Carbon Smoke* / Satin Black (*Carbon 'Smoke' paint finish = semiopaque coating for subtler carbon detail)
  • Frame
    Giant Advanced-Grade Composite with Horizontal Dropouts
  • Fork
    RockShox Judy Gold RL 29", 120mm Travel, Boost 15X110 Maxle Stealth, Tapered
  • Handlebar
    Giant Connect Trail, 780mm
  • Stem
    Giant Connect
  • Seatpost
    Tranz X YSP-11 Dropper Post, 27.2x400mm, 100mm Drop with Under Bar Remote
  • Saddle
    Giant Contact (Neutral)
  • Pedals
    Not Included
  • Shifters
    Shimano SLX, 1x11, I-Spec II
  • Rear Derailleur
    Shimano SLX
  • Brakes
    Shimano BR-MT500 [F] 180mm [R] 160mm, Hydraulic Disc
  • Brake Levers
    Shimano MT500 I-Spec II
  • Cassette
    Shimano SLX, 11-46t
  • Chain
    KMC X11-1
  • Crankset
    Shimano SLX, 30t
  • Bottom Bracket
    Shimano PressFit
  • Rims
    Giant GE35 27.5+, 35mm Inner Width, Tubeless Ready
  • Hubs
    [F] Giant Tracker Boost 15x110, Sealed Bearing [R] Giant Tracker Boost 12x148, Sealed Bearing
  • Spokes
    Stainless 14G
  • Tyres
    Maxxis Rekon+ 27.5x2.8, 60 TPI, EXO, TR, Tubeless
  • Extras
    Factory Tubeless
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Every effort has been made to ensure accuracy throughout this website. However, Giant reserves the right to change bike specifications, features, prices and colours without prior notice.
