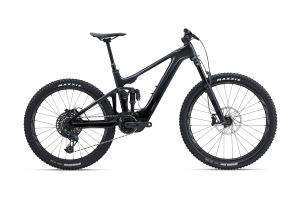

Trance X Advanced E+ Elite 1

Original price: £6,299 £8,999

Similar Products

Best For: Trail

Trance X Advanced E+ Elite 0

£9,099 Original price: £12,999

Best For: Trail

Trance X Advanced E+ Elite 2

£4,549 Original price: £6,499

Best For: Trail

Trance X Advanced E+ Elite 3

£3,849 Original price: £5,499

Accelerate up climbs, float through rock gardens, experience more power, agility and control with this lightweight, full-suspension E-MTB. A new ultra-slim battery minimises weight so you can ride technical trails the way you always dreamed of.

Key Performance Factors

Lighter weight

New EnergyPak 400 battery is designed to be ultra slim. You get all the power but in a smaller package that’s cleanly integrated with the composite frameset.

Advanced cockpit control

RideControl Ergo 3 remote attaches to the all-new composite Giant Contact SLR integrated handlebar. The control can be mounted to either side of the handlebar so you can customise your controls for a clean, uncluttered cockpit.

More power

New SyncDrive Pro motor, co-developed with Yamaha, puts out a powerful 85Nm of torque and weighs just 2.7kg. The result is quicker acceleration and climbing capabilities on technical trails.

Range

How far can I expect to ride on a single battery charge?

The range for a single battery charge can vary greatly depending on conditions such as the combined weight of the rider and cargo; wind resistance; tyre pressure and tread profile; terrain and elevation changes; road or trail surface; outdoor temperature; maintenance of the E-Bike; and the condition of the battery.

The bar below gives an approximate range. Conditions are categorized as extreme, good and ideal. Extreme conditions typically occur when riding with a heavy load, strong headwinds or excessive climbs.

Energypak 400 / SyncDrive Pro

  • Range
  • Extreme: 35 km 21 miles
  • Good: 70 km 43 miles
  • Ideal: 130 km 80 miles

Highlights

All-new composite frame features adjustable geometry with a new flip chip feature. The SyncDrive Pro motor delivers 85Nm of torque for a seamless boost of power even at low speeds and on technical trails. The new composite Giant Contact SLR Trail integrated handlebar has a sleek design for precision off-road control. It comes with two control centres, the RideControl Go multifunctional on/off button on the top tube, and the new RideControl Ergo 3 handlebar-mounted remote.

Trance X Advanced E+ Elite with interactive tooltips

Techs & Features

Advanced Composite Technology
E+ System
Maestro Suspension Technology
SyncDrive Pro
Smart Assist
Energypak
RideControl Go
RideControl Ergo 3
Flip Chip - Maestro

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  • S
      163 cm5’4”  to 174 cm5’9”
  • M
      171 cm5’7”  to 182 cm6’0”
  • L
      176 cm5’9”  to 186 cm6’1”
  • XL
      183 cm6’0”  to 193 cm6’4”
bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  SMLXL
  LOW | HIGHLOW | HIGHLOW | HIGHLOW | HIGH
ASeat Tube Length (mm) (inch)40015.742516.745017.747518.7
BSeat Tube Angle (degrees)77.2° | 78.0°76.0° | 76.7°76.0° | 76.7°76.0° | 76.7°
CTop Tube Length (mm) (inch)57722.7 | 57522.660723.9 | 60523.863625 | 6342566526.2 | 66326.1
DHead Tube Length (mm) (inch)953.71003.91154.51305.1
EHead Tube Angle (degrees)65.7° | 66.5°65.8° | 66.5°65.8° | 66.5°65.8° | 66.5°
FFork Rake (mm) (inch)441.7441.7441.7441.7
GTrail (mm) (inch)113.14.4 | 1084.3113.14.4 | 1084.3113.14.4 | 1084.3113.14.4 | 1084.3
HWheelbase (mm) (inch)119447 | 119547121547.8 | 121247.7124449 | 124449127550.2 | 127550.2
IChain Stay Length (mm) (inch)44717.6 | 44717.644717.6 | 44717.644717.6 | 44717.644717.6 | 44717.6
JBottom Bracket Drop (mm) (inch)100.4100.4100.4100.4
KStack (mm) (inch)60723.9 | 60123.761124.1 | 60523.862524.6 | 61924.463925.2 | 63324.9
LReach (mm) (inch)43917.3 | 44717.645718 | 46218.248018.9 | 48719.250519.9 | 51320.2
MStand Over Height (mm) (inch)72628.6 | 73528.973328.9 | 74229.273228.8 | 74129.274129.2 | 75029.5
NHandlebar Width (mm) (inch)78030.778030.778030.778030.7
OStem Length (mm) (inch)401.6401.6502502
PCrank Length (mm) (inch)1606.31656.51656.51706.7
QWheel Size R27.5" / FR27.5" / FR27.5" / FR27.5" / F
Specs
  • Motor
    Giant SyncDrive Pro2 85Nm, powered by Yamaha, PedalPlus 6-Sensor technology
  • Controller
    Giant RideControl Ergo3, grip integrated remote
  • Display
    Giant RideControl GO, frame integrated LED console Optional wireless ANT+ display"
  • Battery
    Giant EnergyPak 400Wh, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production, Giant EnergyPak Plus 200 range extender compatible
  • Charger
    Giant EnergyPak 4A smart charger, 60% in 1:45
  • Connectivity
    Giant RideControl App enabled ANT+ wireless display signal with E-bike profile
  • Sizes
    S, M, L, XL
  • Colours
    Gunmetal Black/Black
  • Frame
    Advanced-grade composite frame, Advanced-grade rear triangle, Advanced forged composite upper rocker, 140mm Maestro suspension system
  • Fork
    Fox 36 Performance Elite Live Valve, 150mm travel, 44mm offset, Boost 110x15QR, electronic adaptive suspension, E-bike integrated
  • Shock
    Fox Float Performance Elite Live Valve, 185x52.5mm Trunnion mount, electronic suspension, e-bike integrated
  • Handlebar
    Giant Contact SLR Trail Integrated, Advanced Composite, 5-position adjustable, 800mm, meets DH test standard
  • Grips
    Giant Tactal Pro-E, tapered design, 135mm Ø28~30mm (S/M) 142mm Ø29~32mm (L/XL), Integrated for Ergo3 remote button left or right (optional)
  • Stem
    Giant Contact SLR Trail Integrated, Advanced Composite, 5-position adjustable, 40/45/50mm Reach, +3°/0°/-3° Adjust System
  • Seatpost
    Tranz-X Rad+ dropper, 30,9mm, 30mm travel adjustable (S:120-150mm, M:140-170mm, L/XL:170-200mm)
  • Saddle
    Giant Romero, Neutral
  • Pedals
    PEDALS NOT SUPPLIED
  • Shifters
    SRAM AXS Rocker Paddle, wireless electronic shifting
  • Front Derailleur
    MRP HD2 co-moulded chain guide
  • Rear Derailleur
    SRAM GX Eagle AXS
  • Brakes
    SRAM Code R, hydraulic disc, 220mm[F] /200mm[R]
  • Brake Levers
    SRAM Code R
  • Cassette
    SRAM XG-1275, 10-52T, 12-speed
  • Chain
    SRAM GX Eagle PowerLock
  • Crankset
    Praxis Performance Carbon e-crank arms, (S:160,M/L:165, XL:170) SRAM X-SYNC Eagle 36T chain ring
  • Bottom Bracket
    n/a
  • Rims
    TRX 2 Hookless Clincher, 29" [F] / 27.5" [R], 30mm inner width
  • Hubs
    TRX 2 MTB Alloy Hub, 6 Bolt, Pawl Driver (3 Pawl 30T) SRAM XD, 110 x 15 [F] / 148 x 12 [R] Thru-axle
  • Tyres
    Maxxis Minion DHF 29X2.50" Foldable, TLR, EXO [F] Maxxis Dissector 27.5x2.4" Foldable, TLR, EXO [R]
  • Extras
    Tubeless kit (liquid, valves, levers, manual, tool) Inner tube supplied
  • Lighting
    Optional: Giant Recon series E-bike lights available and direct connectable
  • Carrier
    -
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Every effort has been made to ensure accuracy throughout this website. However, Giant reserves the right to change bike specifications, features, prices and colours without prior notice.
