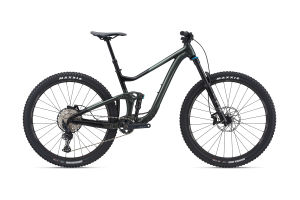

Trance X 29 2

2021

£3,299

Chunky rock gardens, gnarly roots and steep, technical climbs. The all-new Trance X 29 is for those who consider the hardest section of trail their favourite part of the ride. With longer suspension travel and adjustable geometry, this aluminium trail slayer delivers hard-charging singletrack fun.

Engineered to help you ride faster and smoother on the toughest trails, this all-new 29er has a lightweight, strong and stiff aluminum chassis with 29er-specific geometry and a plush ride thanks to its advanced new suspension setup. Longer travel Maestro suspension delivers 135mm of active rear travel that pairs perfectly with a 150mm fork. The Advanced Forged Composite rocker arm has a flip-chip that allows you to adjust frame geometry and tailor the bike’s handling to your riding style and terrain. Choose steeper or slacker headtube/seattube angles and either a 30mm or 40mm bottom bracket drop to adjust the handling for your riding style and terrain. It’s all built around 29-inch wheels and lots of clearance (up to 2.5-inch tyres) for maximum control on rugged trails.

Key Performance Factors

29er confidence and control

29-inch wheels roll over rough terrain with balance and stability, giving you more momentum for technical climbs and the confidence to fly on fast, rugged singletrack descents. Added clearance for up to 2.5-inch tyres.

Progressive suspension

New Maestro rear suspension features a trunnion mount shock with a longer stroke and smoother feel. With 135mm of full rear-wheel travel (and 150mm up front), it features a two-position adjustable Advanced Forged Composite flip-chip equipped upper rocker arm for increased stiffness and strength plus lower overall frame weight.

Adjustable frame geometry

Lightweight ALUXX-SL frameset features adjustable geometry that offers 66.2 or 65.5-degree headtube and 77.9 or 77.2-degree seattube angles, resulting in 30mm or 40mm bottom bracket drop options for aggressive trail configurations.

Techs & Features

Advanced Forged Composite Technology
ALUXX SL Aluminium Technology
Flip Chip - Maestro
Maestro Suspension Technology
OverDrive
PowerCore
Tubeless System

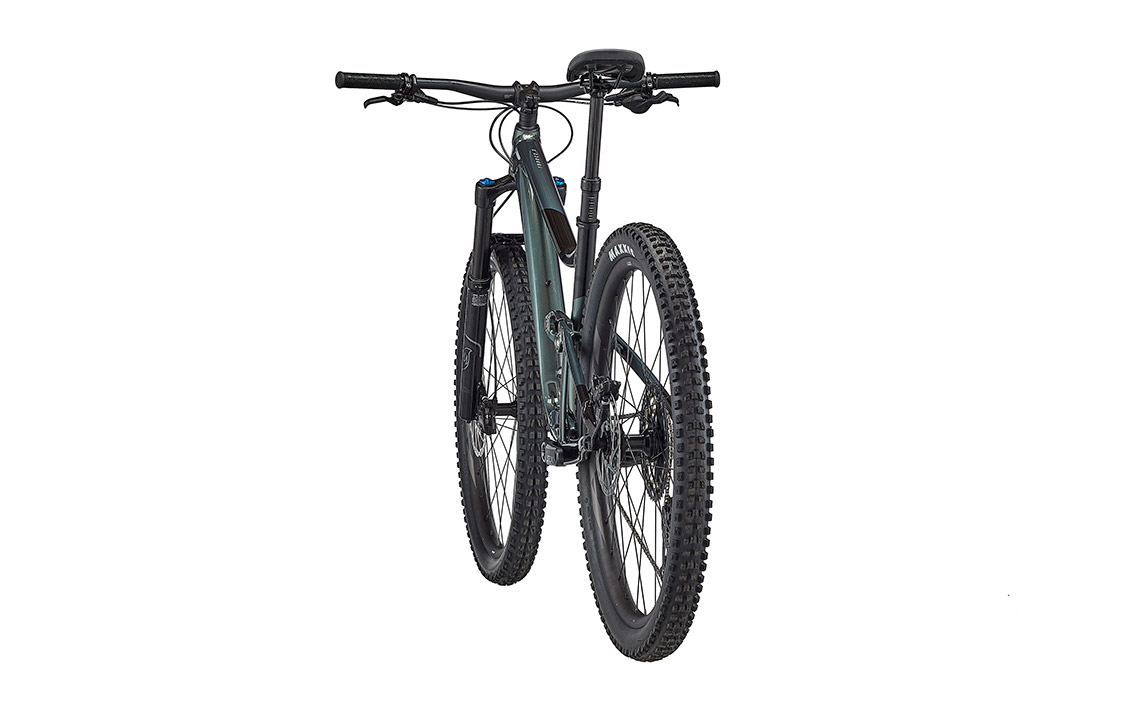

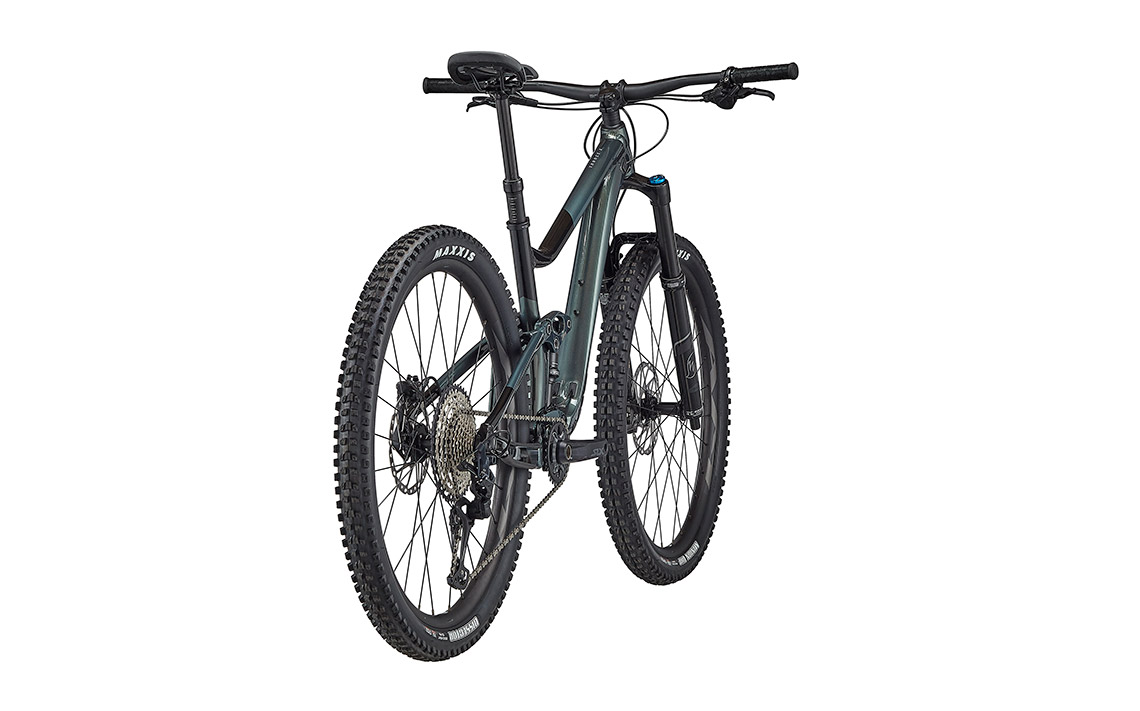

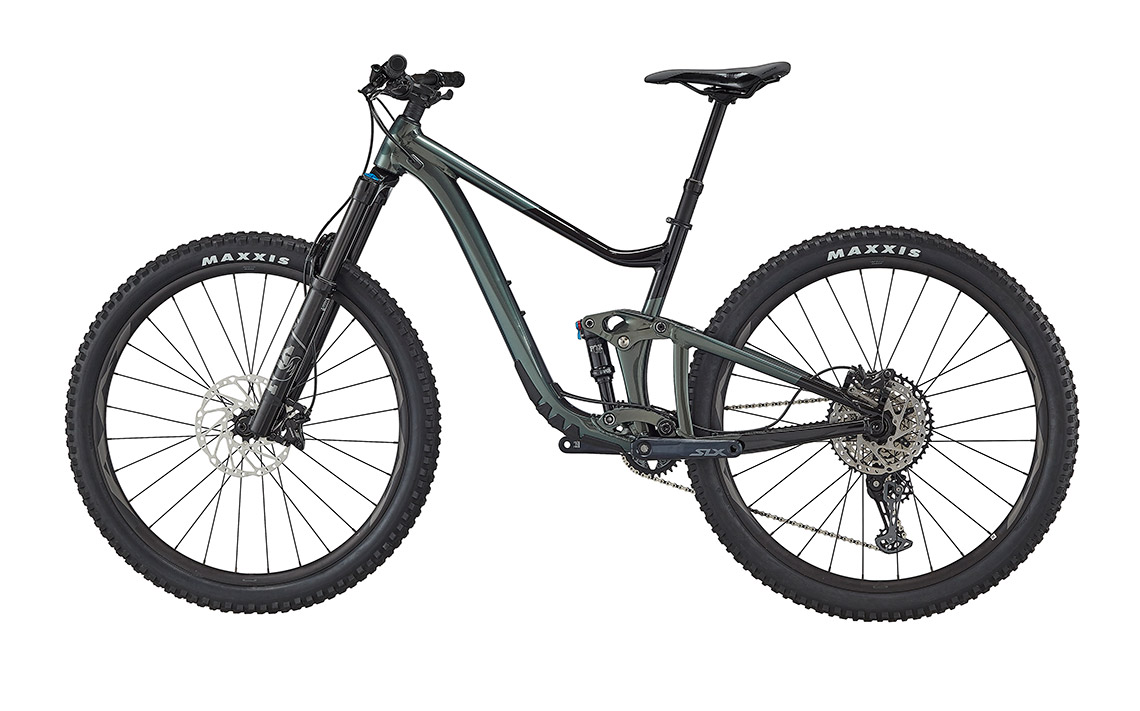

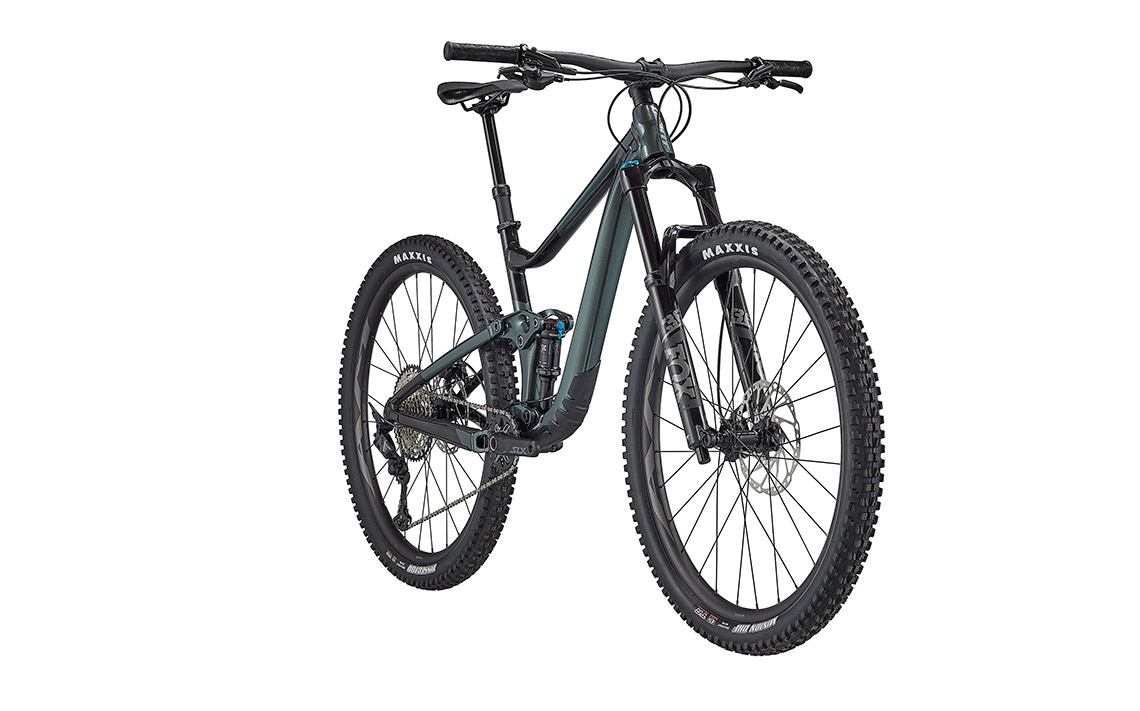

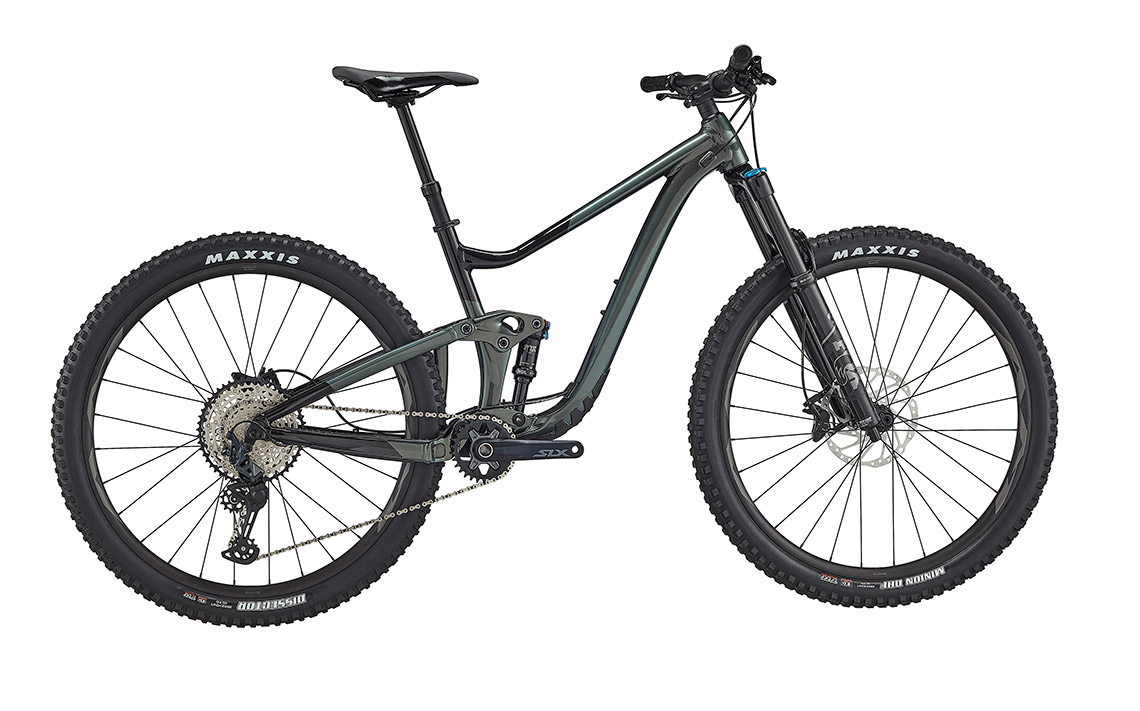

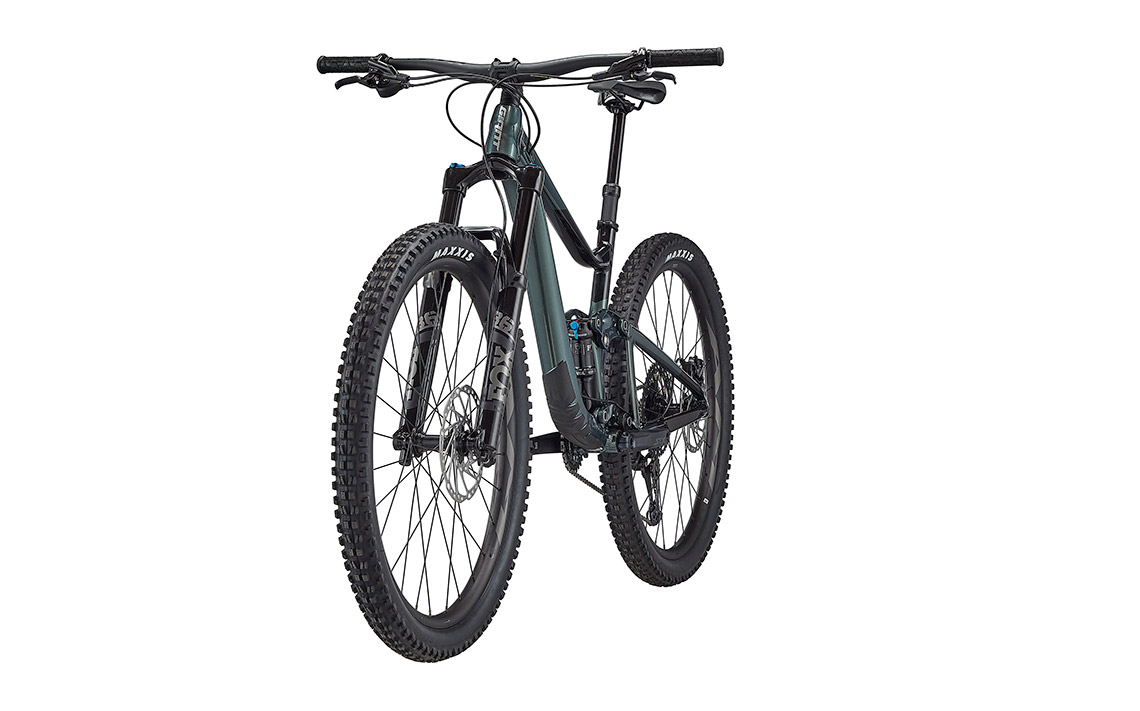

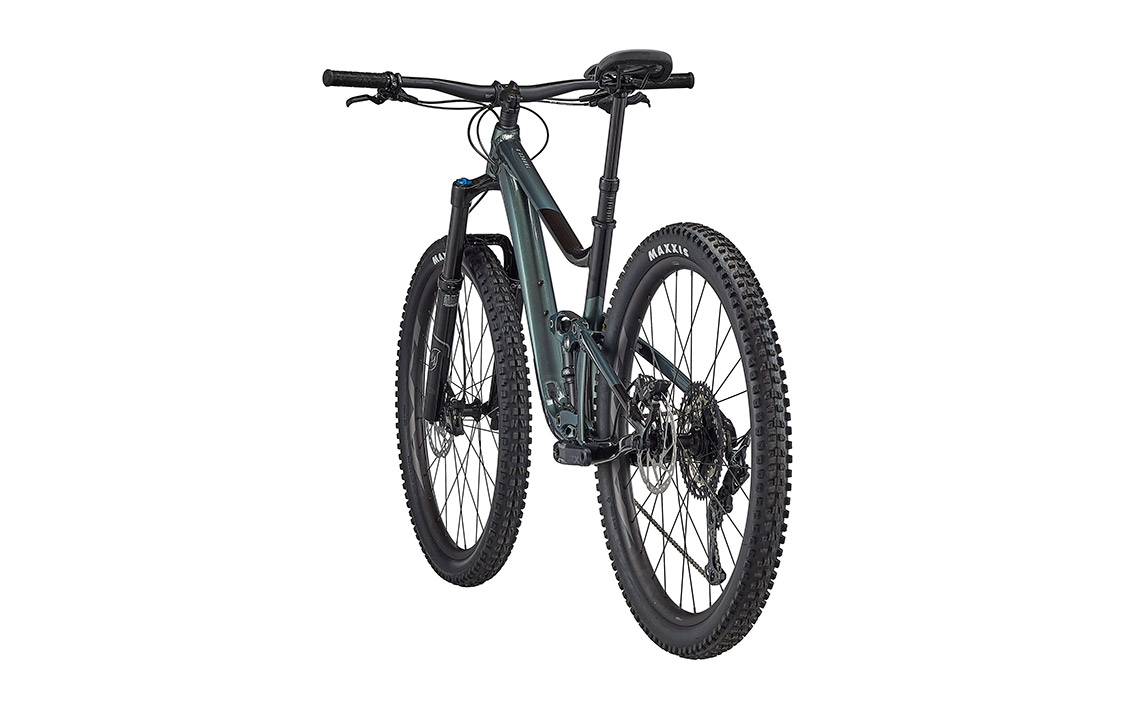

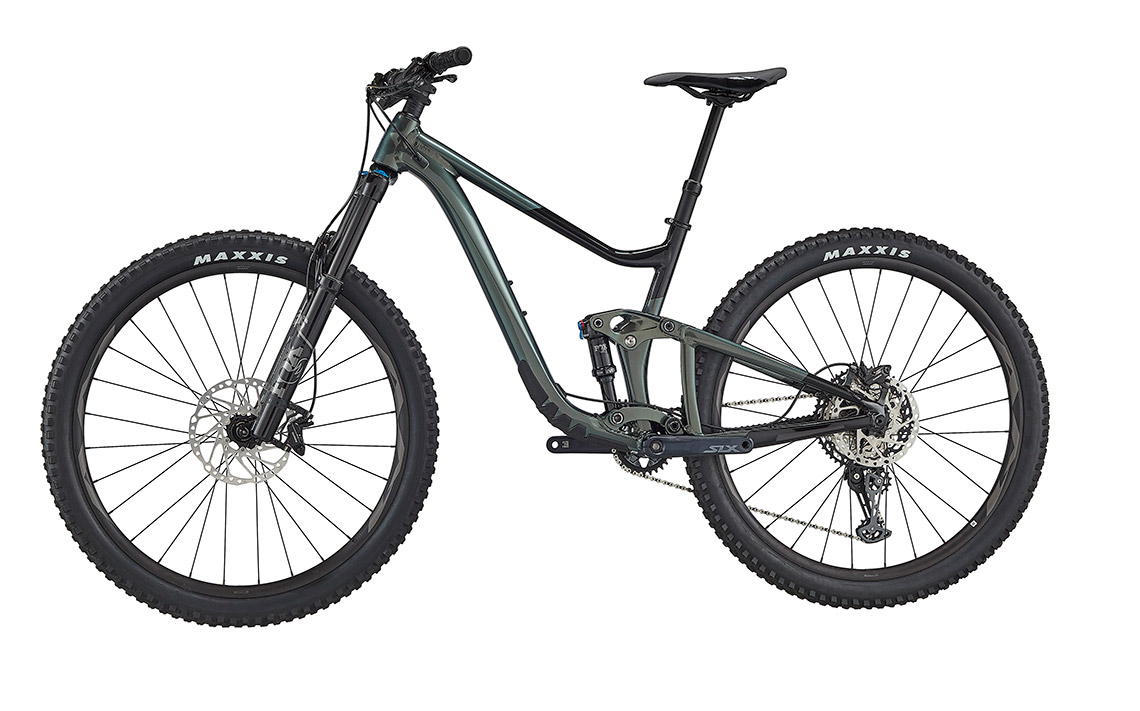

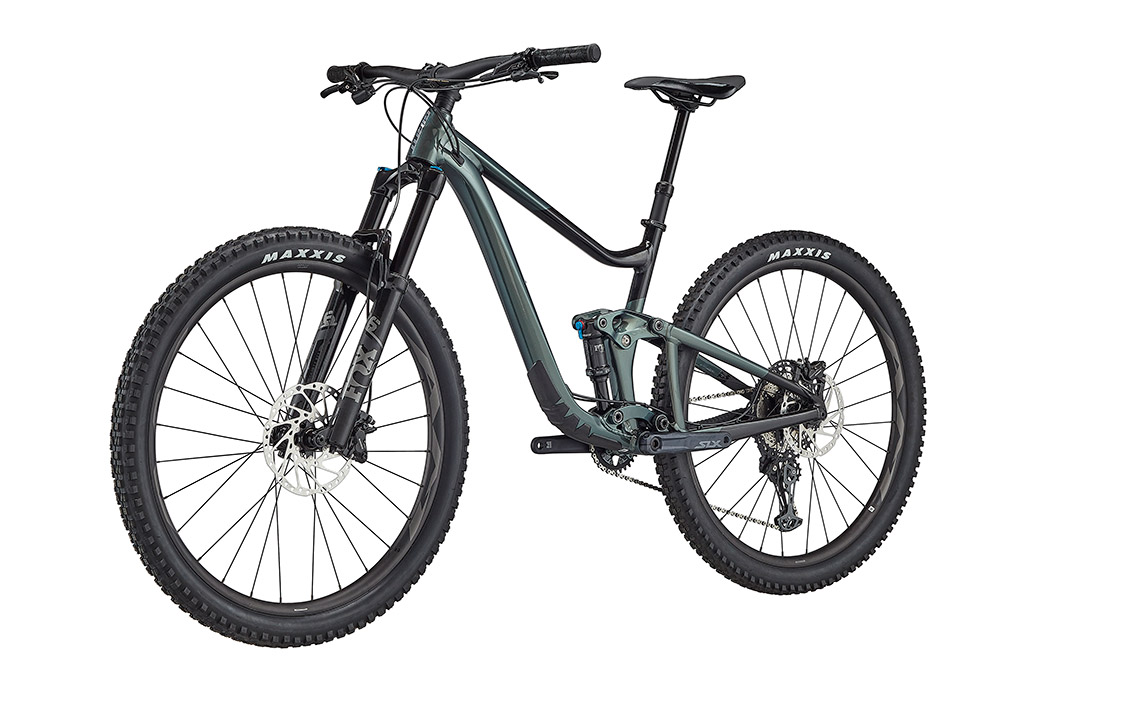

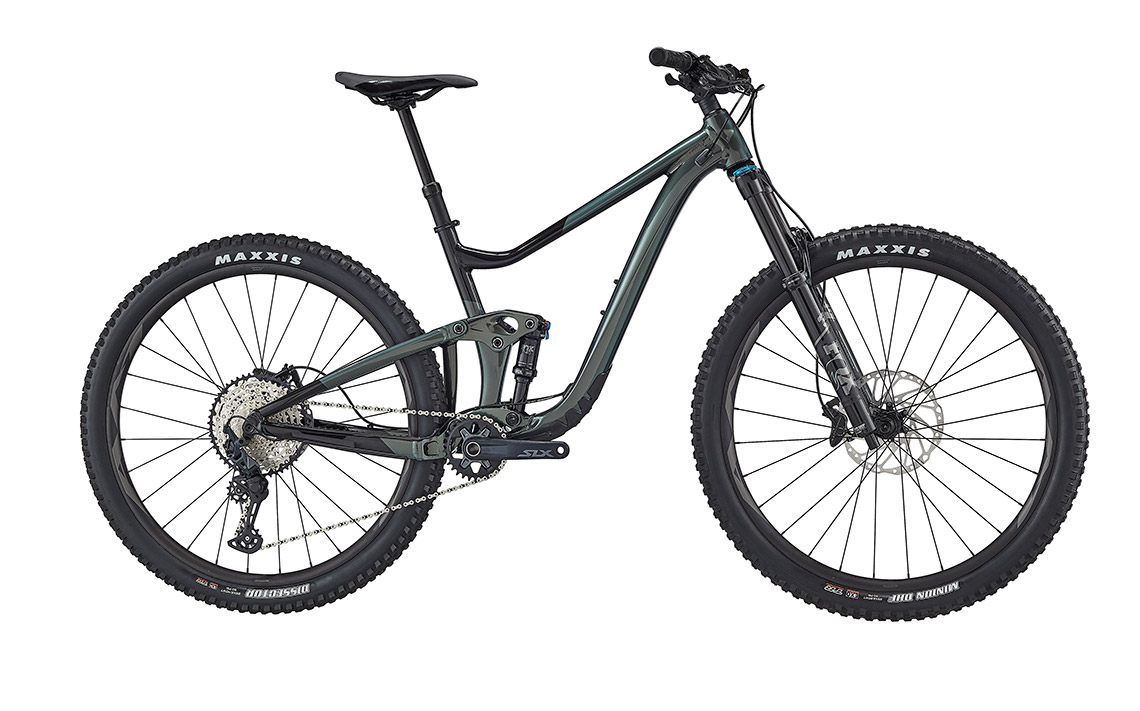

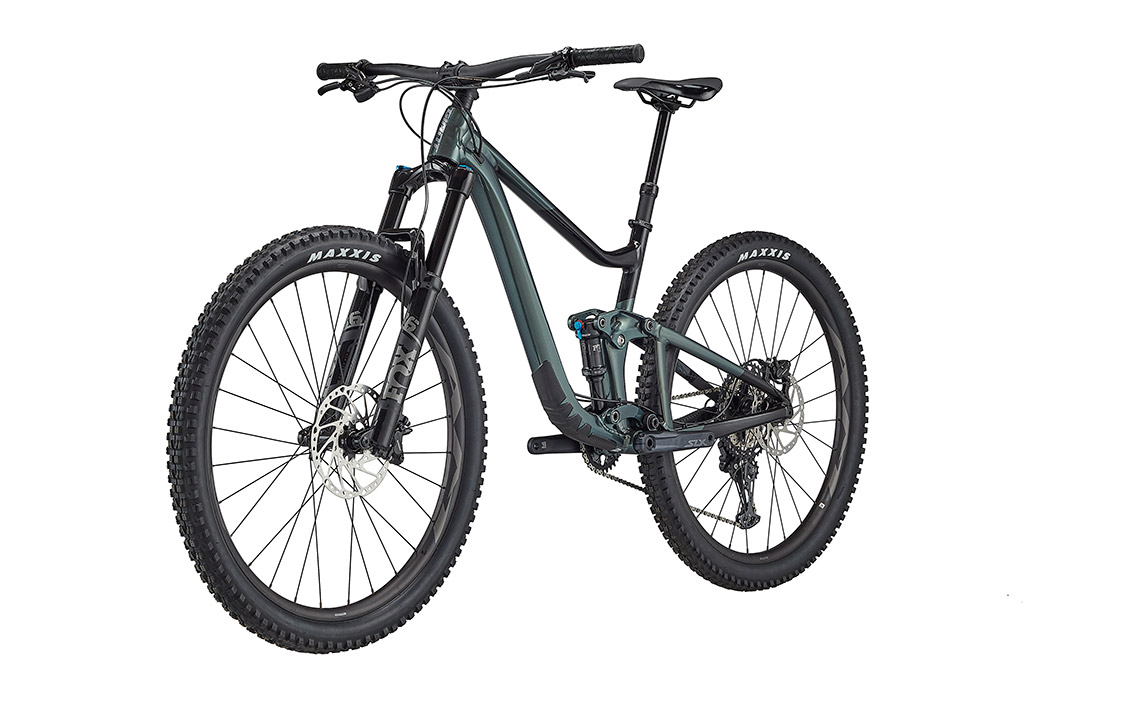

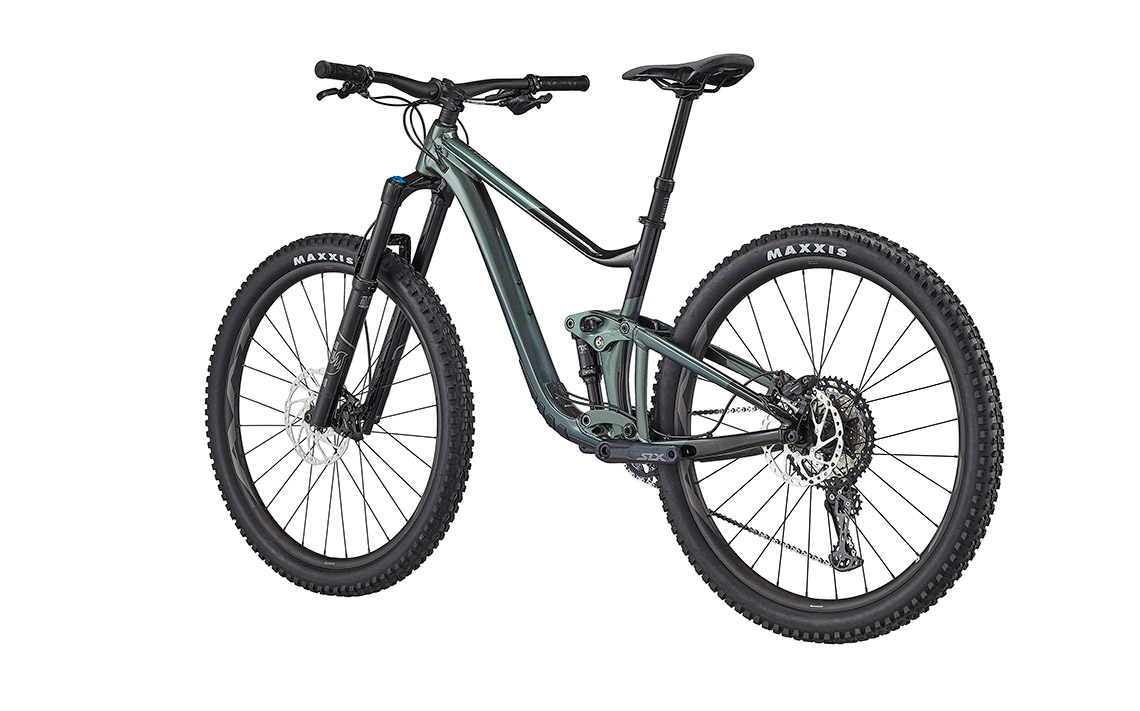

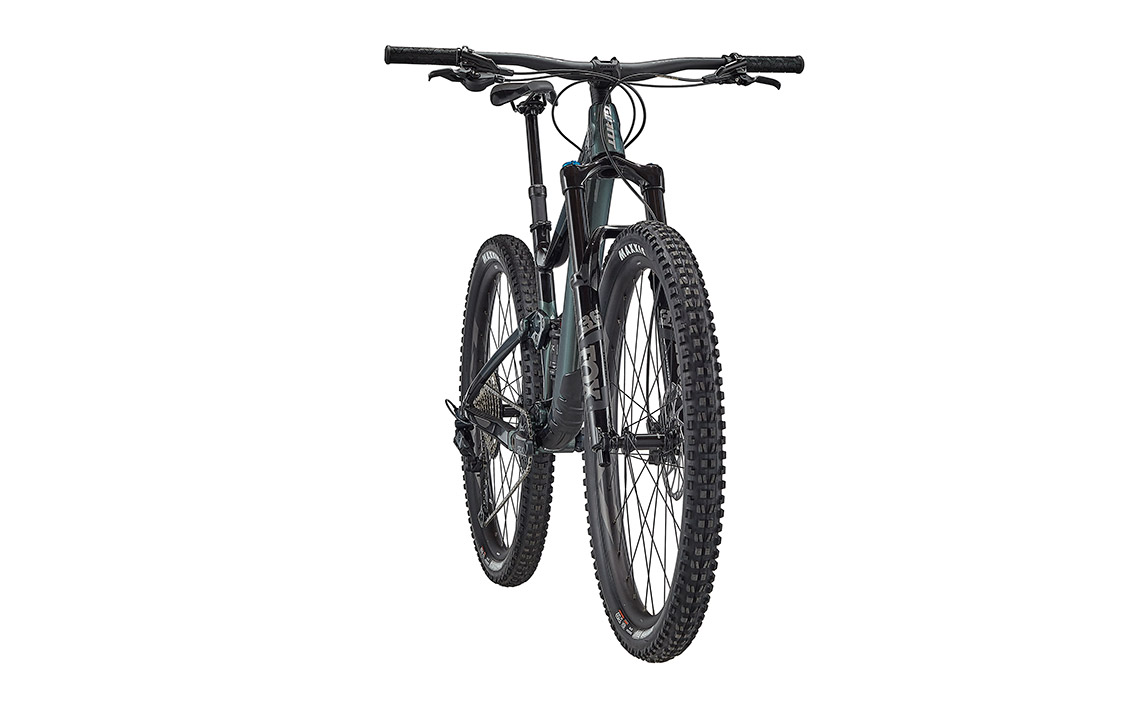

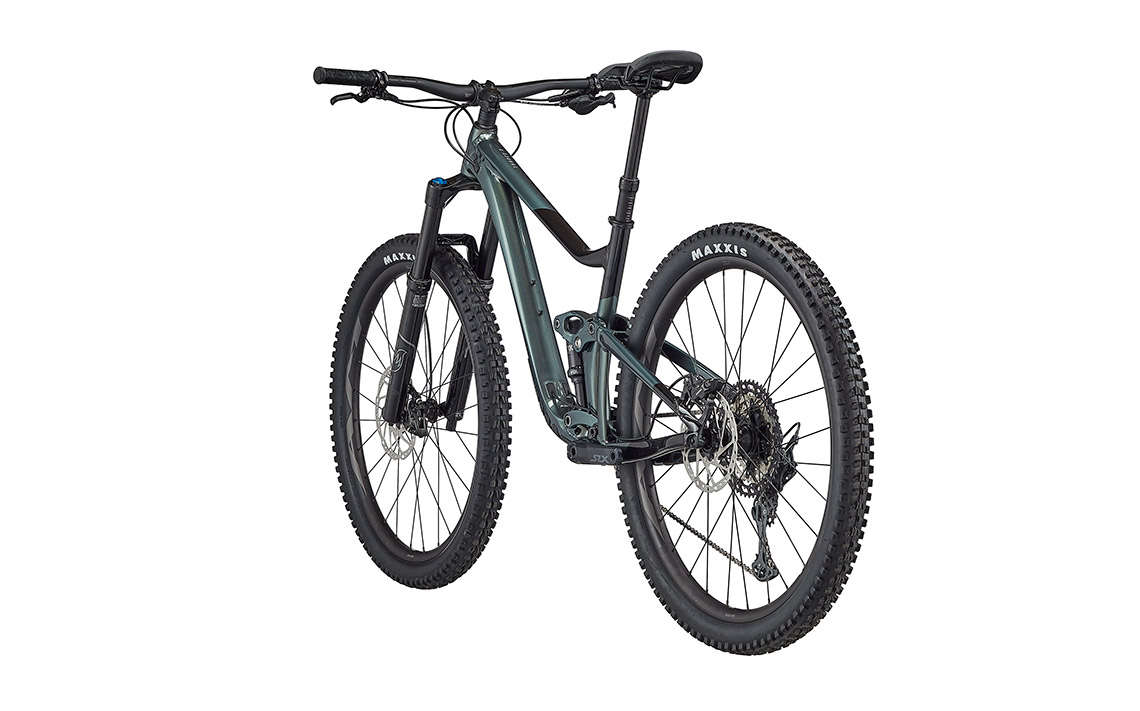

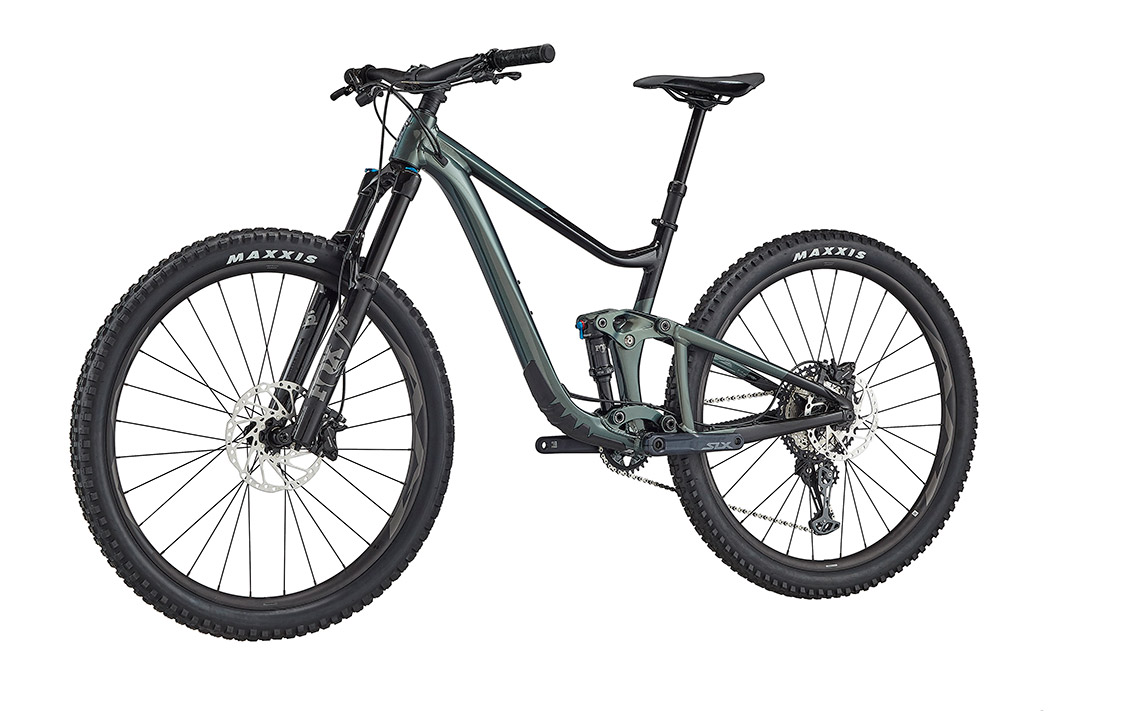

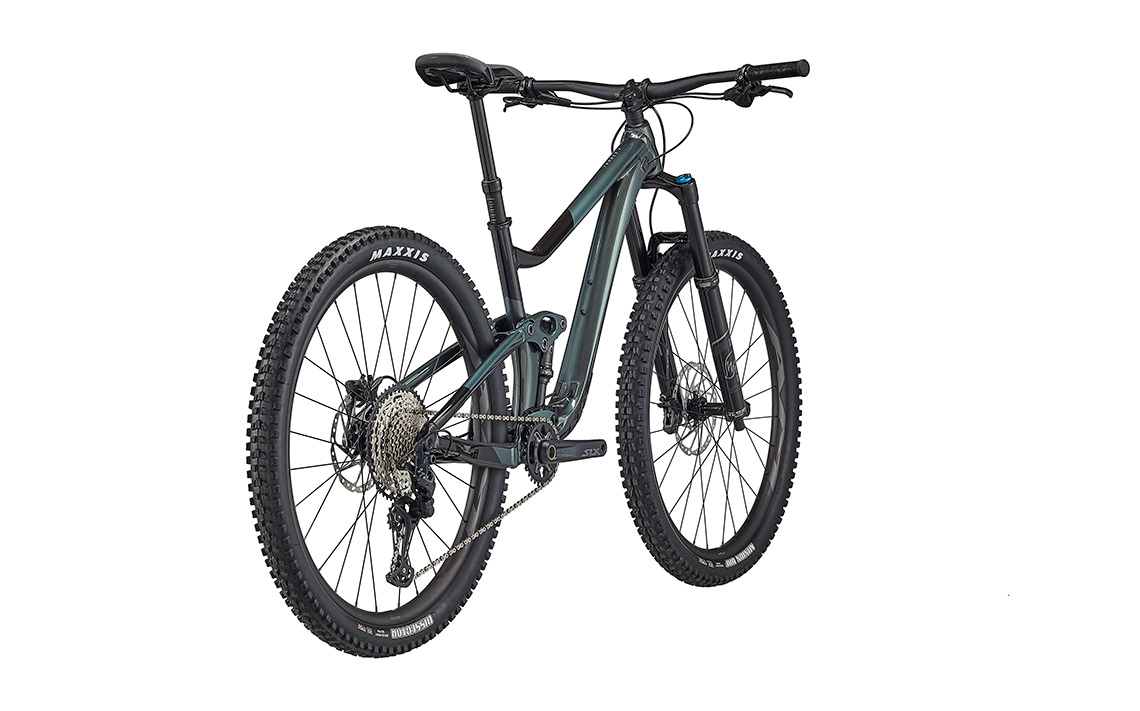

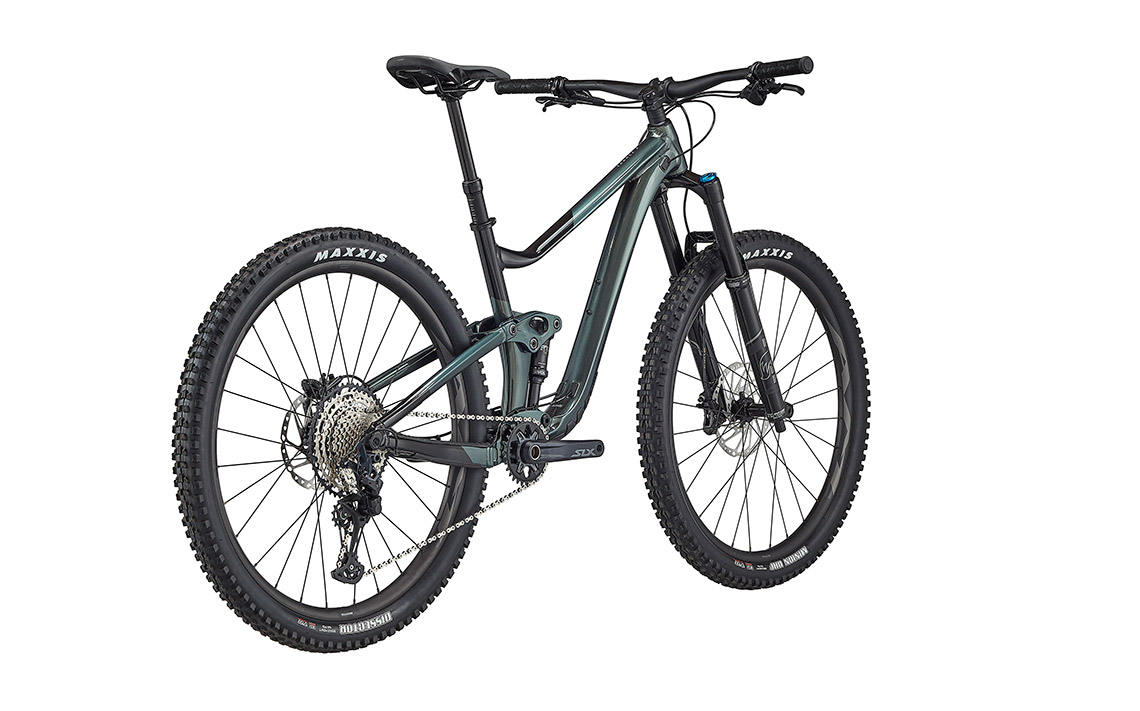

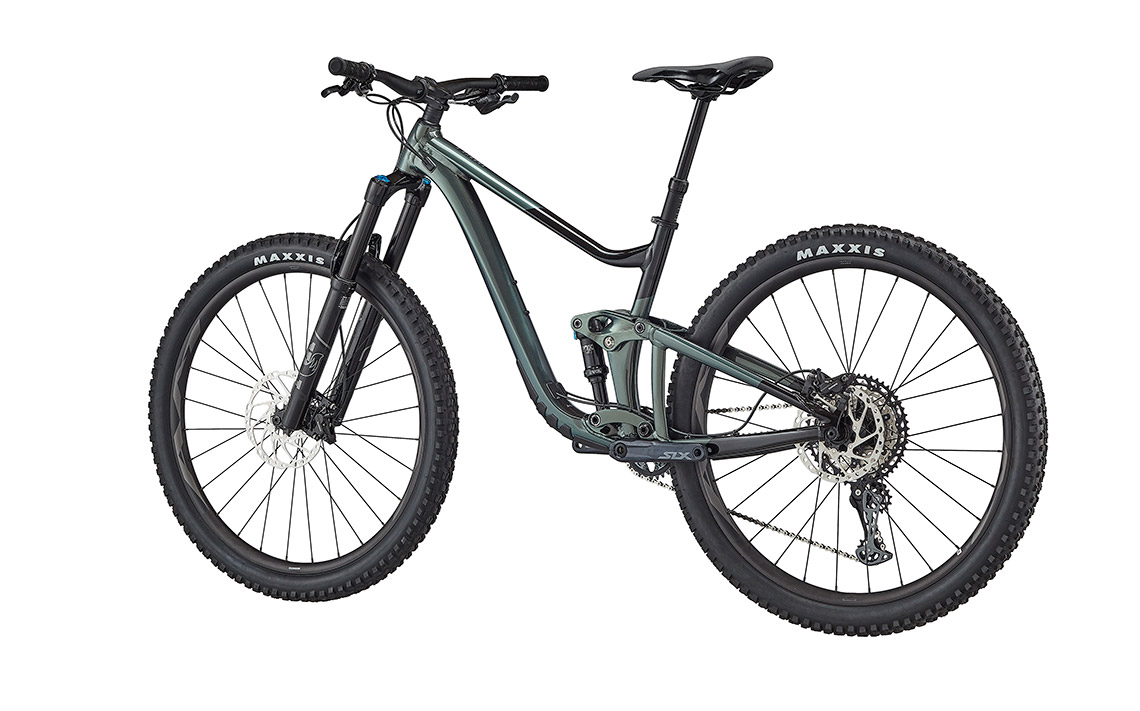

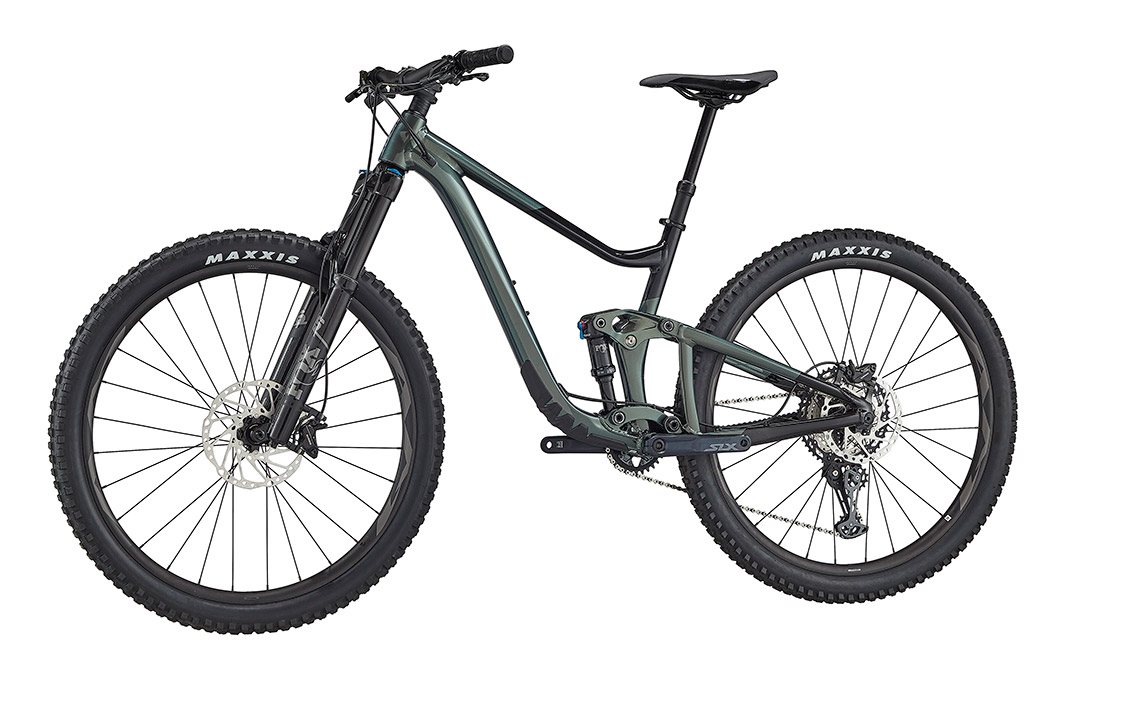

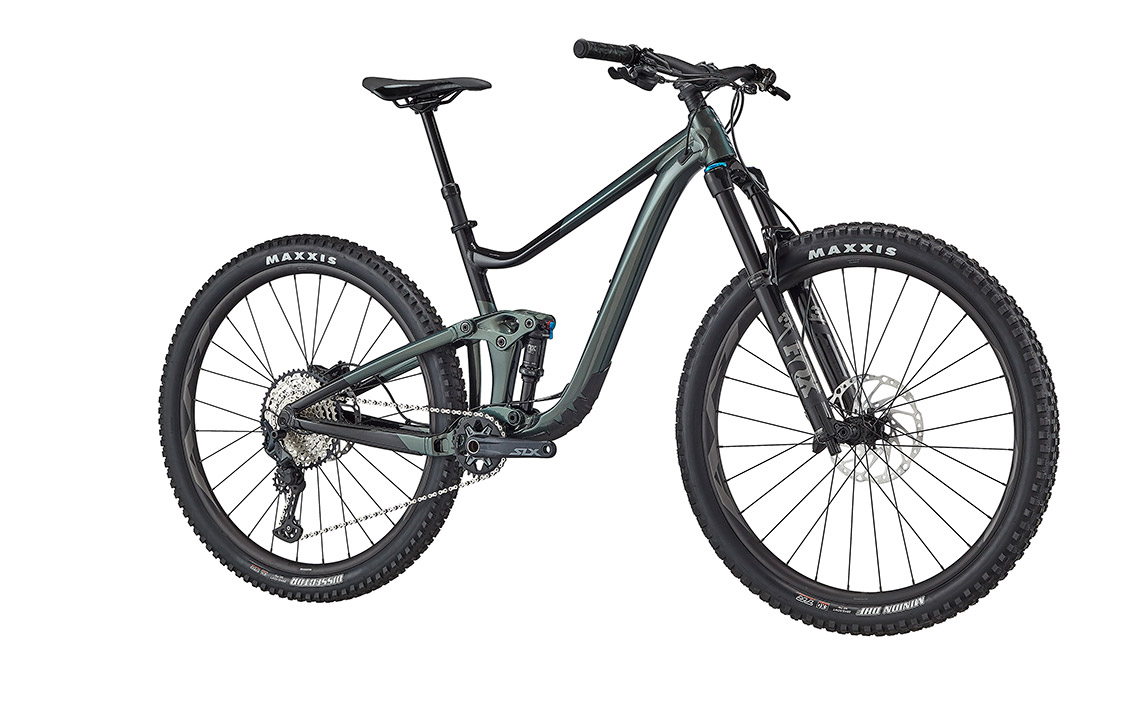

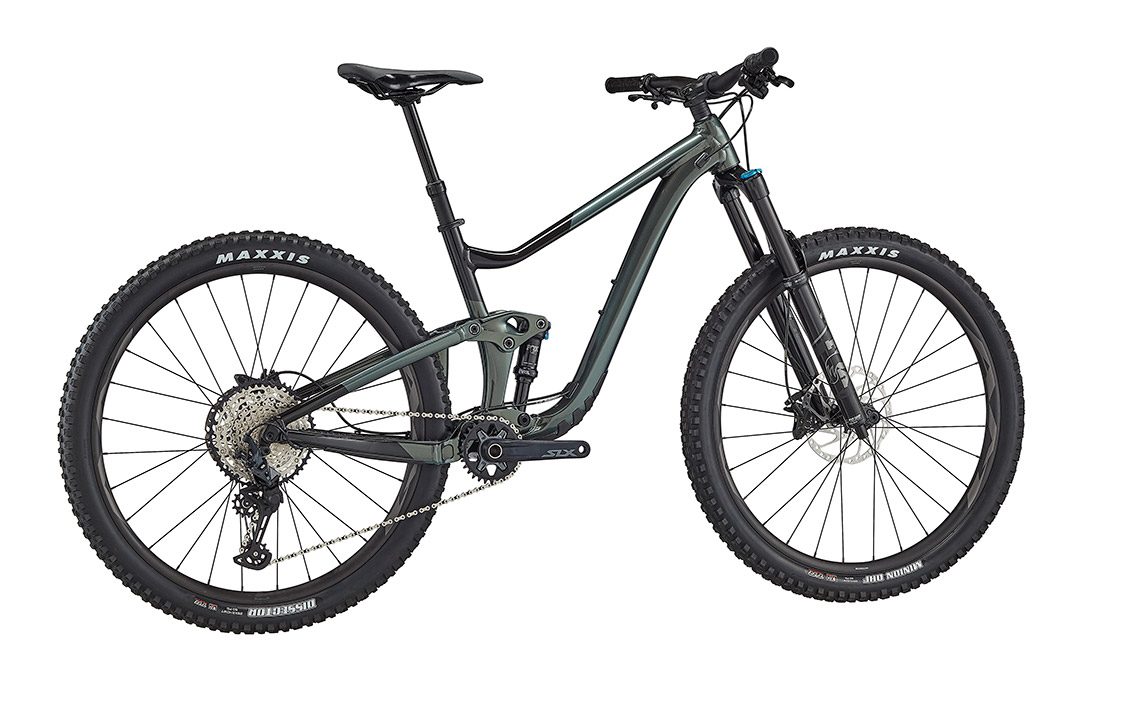

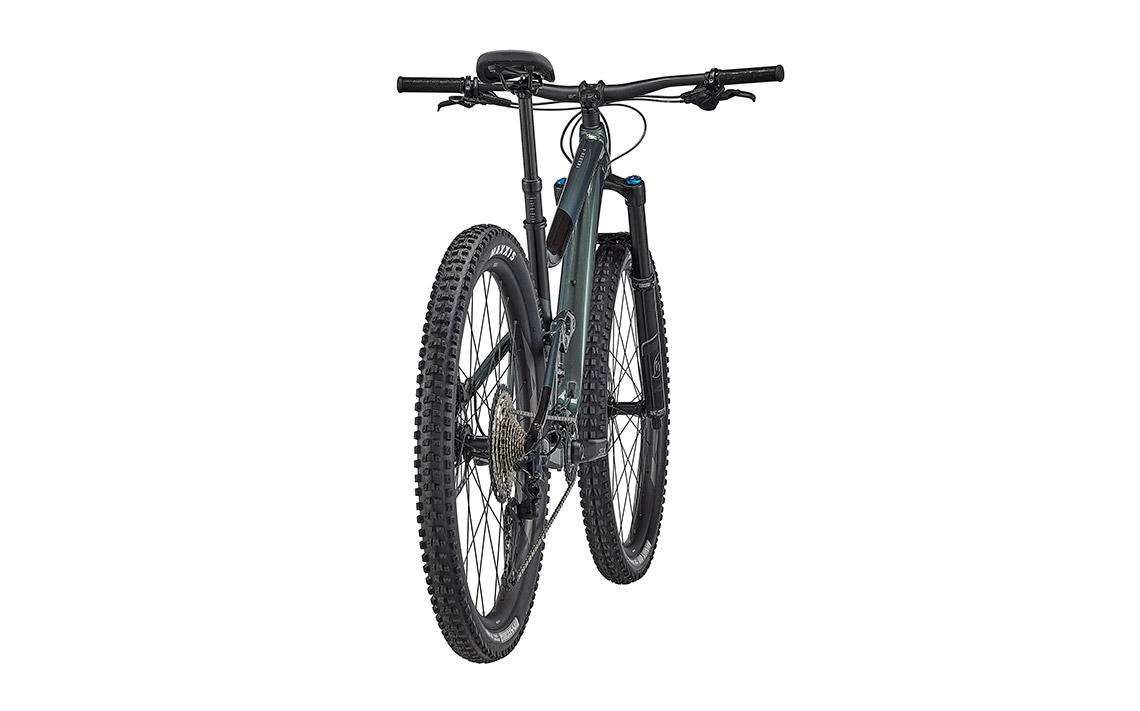

360-View
Trance X 29 2

Geometry

bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  SMLXL
  LOW | HIGHLOW | HIGHLOW | HIGHLOW | HIGH
ASeat Tube Length (mm) (inch)43016.943016.946518.349619.5
BSeat Tube Angle (degrees)77.2° | 77.9°77.2° | 77.9°77.2° | 77.9°77.2° | 77.9°
CTop Tube Length (mm) (inch)56622.3 | 56422.259723.5 | 59523.462924.8 | 62724.765625.8 | 65425.7
DHead Tube Length (mm) (inch)953.71003.91104.31204.7
EHead Tube Angle (degrees)65.5° | 66.2°65.5° | 66.2°65.5° | 66.2°65.5° | 66.2°
FFork Rake (mm) (inch)441.7441.7441.7441.7
GTrail (mm) (inch)125.14.9 | 119.54.7125.14.9 | 119.54.7125.14.9 | 119.74.7125.14.9 | 119.54.7
HWheelbase (mm) (inch)117346.2 | 117146.1120547.4 | 120347.4123948.8 | 123848.7126849.9 | 126649.8
IChain Stay Length (mm) (inch)43817.2 | 43517.143817.2 | 43517.143817.2 | 43517.143817.2 | 43517.1
JBottom Bracket Drop (mm) (inch)401.6 | 301.2401.6 | 301.2401.6 | 301.2401.6 | 301.2
KStack (mm) (inch)61724.3 | 61124.162124.4 | 61524.263124.8 | 62424.664025.2 | 63425
LReach (mm) (inch)42616.8 | 43417.145618 | 46418.348619.1 | 49419.451020.1 | 51920.4
MStand Over Height (mm) (inch)73428.9 | 74329.372928.7 | 73829.175429.7 | 7633077730.6 | 78630.9
NHandlebar Width (mm) (inch)80031.580031.580031.580031.5
OStem Length (mm) (inch)401.6401.6502502
PCrank Length (mm) (inch)1656.51706.71706.71706.7
QWheel Size 29"29"29"29"
Specs
  • Sizes
    S, M, L, XL
  • Colours
    Gloss Balsam Green/Black
  • Frame
    ALUXX SL-Grade AluminIum front and rear triangles, 135mm Maestro suspension, flip chip
  • Fork
    Fox 36 Float Rhythm, 150mm, GRIP damper, Boost 15x110 QR, 44mm offset, custom tuned for Giant
  • Shock
    Fox Float DPS Performance, 185/55, custom tuned for Giant
  • Handlebar
    Giant Contact TR35, 780x35mm, 20mm rise
  • Stem
    Giant Contact SL 35
  • Seatpost
    Giant Contact Switch dropper with remote, 30.9
  • Saddle
    Giant Romero
  • Pedals
    PEDALS NOT SUPPLIED
  • Shifters
    Shimano SLX
  • Front Derailleur
    N/A
  • Rear Derailleur
    Shimano SLX
  • Brakes
    Shimano MT520
  • Brake Levers
    Shimano MT501
  • Cassette
    Shimano SLX, 10x51
  • Chain
    KMC X-12
  • Crankset
    Shimano MT510, 30t
  • Bottom Bracket
    Shimano, press fit
  • Rims
    Giant AM 29, alloy
  • Hubs
    Shimano, sealed bearing
  • Spokes
    Sapim
  • Tyres
    [F] Maxxis Minion DHF 29x2.5, 3C, EXO, TR [R] Maxxis Dissector 29x2.4, 3C, EXO, TR, tubeless
  • Extras
    tubeless prepared
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Every effort has been made to ensure accuracy throughout this website. However, Giant reserves the right to change bike specifications, features, prices and colours without prior notice.
