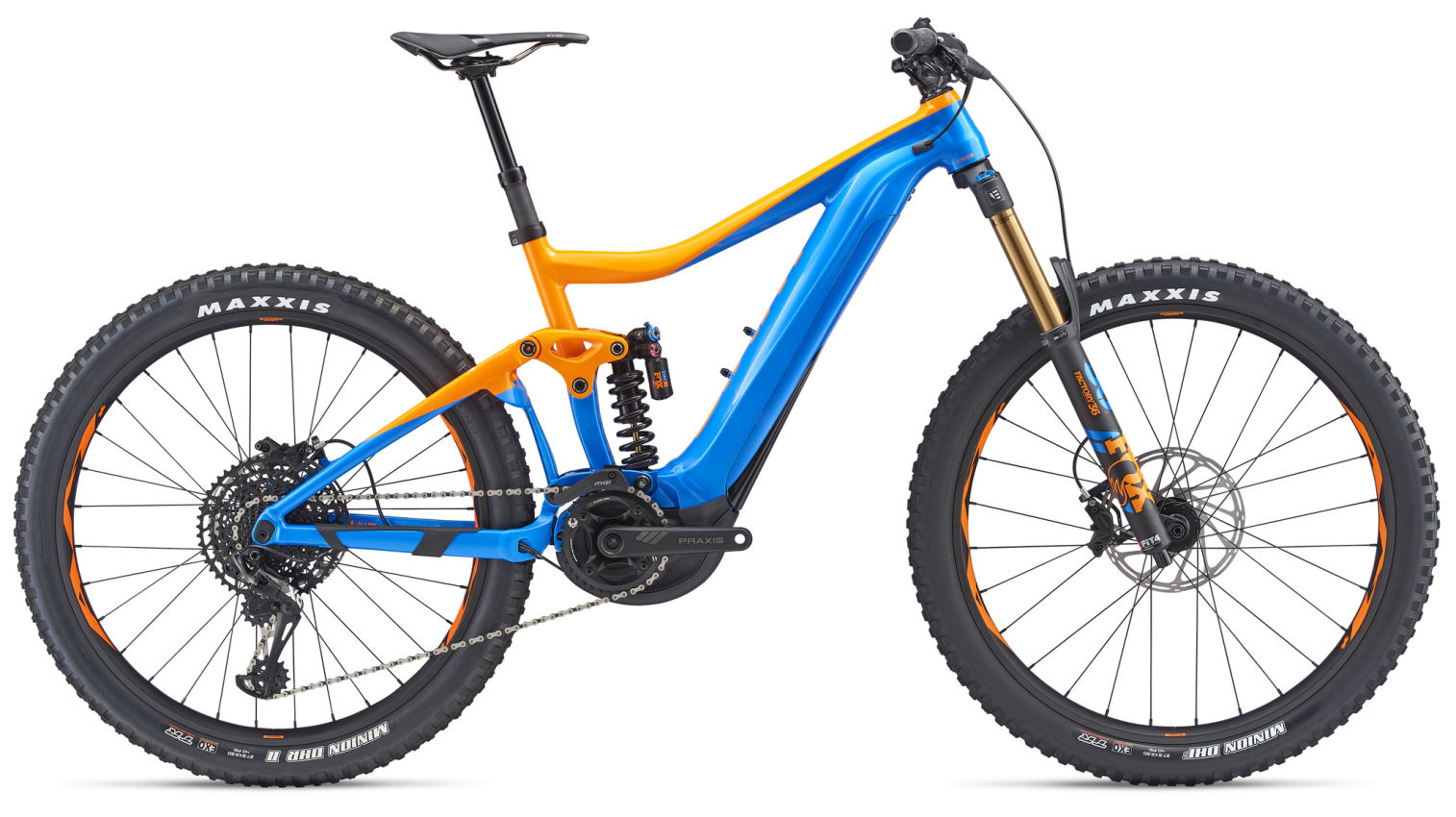

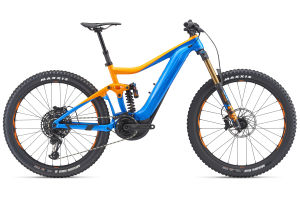

Trance SX E+ 0 Pro Electric Bike

2019

With a high-performance frame and tunable power, this premium full-suspension trail electric bike gives you the power, confidence and control to take your off-road adventures to a new level.

This premium level full-suspension bike is made for trail and enduro riding. The Trance E+ SX Pro features 140mm of Maestro rear suspension technology,160mm travel in the front, and Giant’s SyncDrive Pro motor technology, delivering 360 percent support. The lightweight yet strong ALUXX aluminum frame is seamlessly integrated with the updated 500Wh downtube EnergyPak. The RideControl ONE features user-friendly buttons that are easy to use and out of the way.
  The range figures are a guide and can vary depending on a variety of external factors, such as rider weight, riding style, conditions, weather, tyre pressure, set up and gear selection.

Key Performance Factors

High performance

Proven Maestro suspension and tunable SyncDrive Pro motor technology offer a high-performance trail riding experience.

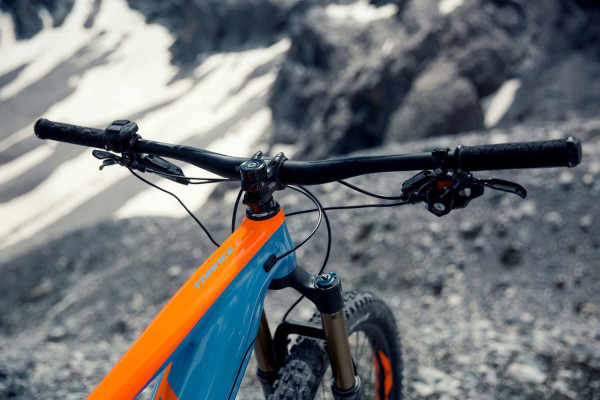

RideControl One

Handlebar-integrated control unit for a clean and high end design.

Integrated

Downtube integrated EnergyPak with 500Wh of capacity features a clean, out of the way design.

Techs & Features

ALUXX SL Aluminium Technology
Maestro Suspension Technology
E+ System
SyncDrive
RideControl ONE

Geometry

bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
 XSSMLXL
A Seat Tube Length (mm) (inch)380154061644517.54821950720
B Seat Tube Angle (degrees)73.5°73.5°73.5°73.5°73.5°
C Top Tube Length (mm) (inch)57022.4585236102463024.865525.8
D Head Tube Length (mm) (inch)953.7953.71003.91104.31305.1
E Head Tube Angle (degrees)66.0°66.0°66.0°66.0°66.0°
F Fork Rake (mm) (inch)441.7441.7441.7441.7441.7
G Trail (mm) (inch)1134.41134.41134.41134.41134.4
H Wheelbase (mm) (inch)117746.3118546.7121147.7123348.5126049.6
I Chain Stay Length (mm) (inch)469.518.5469.518.5469.518.5469.518.5469.518.5
J Bottom Bracket Drop (mm) (inch)110.4110.4110.4110.4110.4
K Stack (mm) (inch)58222.958623.159023.259923.661824.3
L Reach (mm) (inch)40315.941116.243517.145217.847218.6
M Stand Over Height (mm) (inch)73128.874329.374429.377430.579631.3
N Handlebar Width (mm) (inch)80031.580031.580031.580031.580031.5
O Stem Length (mm) (inch)401.6401.6401.6502502
P Crank Length (mm) (inch)1656.51656.51706.71706.71706.7
Q Wheel Size 27.527.527.527.527.5
Specs
  • Motor
    Giant SyncDrive Pro, 360% tuneable support, powered by YAMAHA
  • Sensors
    Giant PedalPlus 4-sensor technology
  • Display
    Giant RideControl One
  • Battery
    Giant EnergyPak 500, 36V 13.8Ah integrated Lithium-Ion Panasonic
  • Sizes
    S, M, L
  • Colours
    Gloss Neon Orange / Gloss Metallic Blue
  • Frame
    ALUXX SL-grade aluminum, 140mm Maestro suspension system, 'Boost' 148x12QR
  • Fork
    Fox 36 Factory 27,5+ 160mm, EVOL, Fit4 3-position Micro Adjust Grip Damper, Boost 110x15QR, e-Bike optimized
  • Shock
    Fox Factory DHX2 Coil, 2-position lever, 185x52.5mm Trunnion mount
  • Handlebar
    Giant Contact SL 35 Trail, 35x800mm
  • Stem
    Giant Contact SL 35
  • Seatpost
    Giant Contact Switch, dropper, 30,9mm, under bar remote lever
  • Saddle
    Giant Contact SL, Neutral
  • Shifters
    SRAM XO1 Eagle
  • Front Derailleur
    MRP 1X V3 custom full-size HD upper
  • Rear Derailleur
    SRAM XO1 Eagle
  • Brakes
    SRAM Code R, hydraulic disc, 200mm
  • Brake Levers
    SRAM Code R
  • Cassette
    SRAM PG-1230, 11-50T, 12-Speed
  • Chain
    SRAM GX Eagle PowerLock, 12-Speed
  • Crankset
    SRAM X-Sync Eagle 36T 104BCD chainringPraxis e-Cadet+ custom forged crankarm set
  • Rims
    Giant AM 27.5+, Tubeless ready, 35mm inner width, e-bike optimised
  • Hubs
    Giant eTracker Boost, Sealed cartridge bearing, 6-bolt, [F] 110x15 [R] 148x12mm Thru-axle, e-bike optimised
  • Spokes
    Sapim E-Lite [r] Race [f], e-bike optimised
  • Tyres
    Maxxis Minion DHF 27.5x2.6" foldable, Tubeless, EXO protect, Dual Compound[F], Maxxis Minion DHR II 27.5x2.6" foldable, Tubeless, EXO, Dual Compound [R]
  • Extras
    Giant EnergyPak 6A Smart charger (60% charge in 60minutes)Tubeless kit
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Every effort has been made to ensure accuracy throughout this website. However, Giant reserves the right to change bike specifications, features, prices and colours without prior notice.
