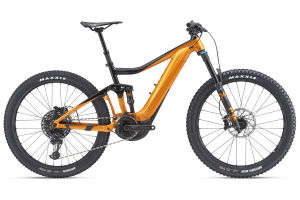

Trance E+ 1 Pro Electric Bike

2019

Faster up the climbs, longer loops, more singletrack fun on any given day. Give yourself the power and freedom to extend your trail-riding adventures.

The SyncDrive Pro motor gives the Trance E+ Pro a massive 80Nm of torque and 360 percent support, all controlled by RideControl One. Featuring 140mm of smooth Maestro suspension travel in the rear, 150mm in the front, and frame geometry that’s designed for 27.5 wheels, this is a whole new way to tackle technical singletrack trails. Enjoy E-bike riding just the way you want—ride with full power or tune it less aggressively. The EnergyPak is cleanly integrated into the downtube of the lightweight ALUXX SL frame and gives you 500Wh of capacity. The RideControl ONE offers an easy to operate button control for a comfortable ride. It all adds up to a fun day out on the trails.
  The range figures are a guide and can vary depending on a variety of external factors, such as rider weight, riding style, conditions, weather, tyre pressure, set up and gear selection.

Key Performance Factors

Total control

ALUXX SL frameset, 27.5 wheels, and 140mm of smooth Maestro suspension travel give you superior control for riding technical terrain.

Powerful motor

High-performance SyncDrive Pro motor with 80Nm of torque and support ratios up to 360 percent lets you ride farther and master all terrain.

RideControl One

Handlebar-integrated control unit for a clean and high end design.

Techs & Features

ALUXX SL Aluminium Technology
Maestro Suspension Technology
Hybrid Cycling Technology
SyncDrive Pro
RideControl ONE

Geometry

bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  XSSMLXL
ASeat Tube Length (mm) (inch)380154061644517.54821950720
BSeat Tube Angle (degrees)74.0°74.0°74.0°74.0°74.0°
CTop Tube Length (mm) (inch)57022.4585236102463024.865525.8
DHead Tube Length (mm) (inch)953.7953.71003.91104.31305.1
EHead Tube Angle (degrees)66.5°66.5°66.5°66.5°66.5°
FFork Rake (mm) (inch)461.8461.8461.8461.8461.8
GTrail (mm) (inch)1094.31094.31094.31094.31094.3
HWheelbase (mm) (inch)116946118446.6121047.6123148.5125949.6
IChain Stay Length (mm) (inch)47018.547018.547018.547018.547018.5
JBottom Bracket Drop (mm) (inch)150.6150.6150.6150.6150.6
KStack (mm) (inch)57922.857922.85842359323.361124.1
LReach (mm) (inch)40315.941816.544217.446018.147918.9
MStand Over Height (mm) (inch)72828.773929.174029.177230.479231.2
NHandlebar Width (mm) (inch)78030.778030.778030.778030.778030.7
OStem Length (mm) (inch)401.6401.6502502602.4
PCrank Length (mm) (inch)1656.51656.51706.71706.71706.7
QWheel Size 27.5+27.5+27.5+27.5+27.5+
Specs
  • Motor
    Giant SyncDrive Pro, 360% tuneable support, powered by YAMAHA
  • Sensors
    Giant PedalPlus 4-sensor technology
  • Display
    Giant RideControl ONE, remote button
  • Battery
    Giant EnergyPak 500, 36V 13.8Ah integrated Lithium-Ion Panasonic
  • Sizes
    S, M, L
  • Colours
    Gloss Metallic Black/ Gloss Orange
  • Frame
    ALUXX SL-grade aluminum, Advanced forged composite upper rocker, 140mm Maestro suspension system
  • Fork
    Fox 36 Float Performance 27.5+ 150mm, EVOL, 3-position Micro Adjust Grip Damper, Boost 110x15QR, e-Bike optimized
  • Shock
    Fox Float DPS Performance, EVOL Large Volume sleeve, 3-position lever, 185x52.5mm Trunnion mount, custom tuned
  • Handlebar
    Giant Contact 35 Trail, 35x800mm
  • Stem
    Giant Contact SL 35
  • Seatpost
    Giant Contact Switch, dropper, 30,9mm, under bar remote lever
  • Saddle
    Giant Contact, Neutral
  • Shifters
    SRAM GX Eagle
  • Front Derailleur
    MRP 1X V3 custom
  • Rear Derailleur
    SRAM GX Eagle, Type 2
  • Brakes
    SRAM Code R, hydraulic disc, 200mm
  • Brake Levers
    SRAM Code R
  • Cassette
    SRAM PG-1230, 11-50T, 12-Speed
  • Chain
    SRAM GX Eagle PowerLock 12-Speed
  • Crankset
    SRAM X-Sync Eagle 36T 104BCD chainringPraxis e-Cadet+ custom forged crankarm set
  • Rims
    Giant AM 27.5+, Tubeless ready, 35mm inner width, e-bike optimized
  • Hubs
    Giant eTracker Boost, Sealed cartridge bearing, 6-bolt, [F] 110x15 [R] 148x12mm Thru-axle, e-bike optimised
  • Spokes
    Sapim E-Lite [r] Race [f], e-bike optimised
  • Tyres
    Maxxis Minion DHF 27.5x2.6" Foldable, Tubeless, EXO, Dual compound [F] Maxxis Rekon 27.5x2.6" Foldable, Tubeless, EXO, Dual Compound [R]
  • Extras
    Giant EnergyPak 6A Smart charger (60% charge in 60minutes)Tubeless kit
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Every effort has been made to ensure accuracy throughout this website. However, Giant reserves the right to change bike specifications, features, prices and colours without prior notice.
