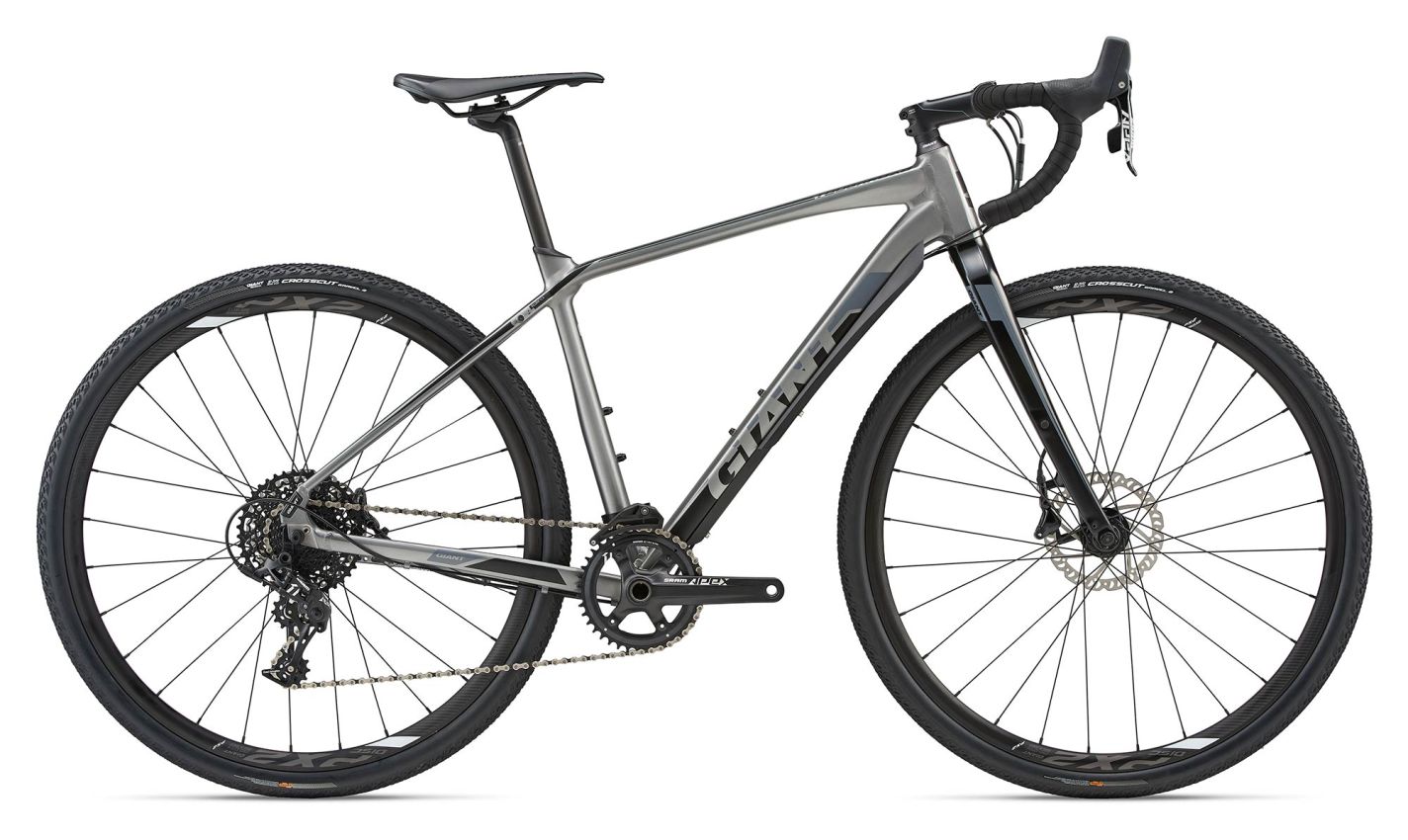

ToughRoad SLR GX 0

2018

ADVENTURES AREN’T ALWAYS SMOOTH AND EASY. THIS LIGHTWEIGHT DROP-BAR BIKE MAKES IT FUN TO RIDE ROUGH ROADS, GRAVEL AND DIRT.

A lightweight ALUXX SLR aluminum frame, smooth-handling composite fork, and drop-bar positioning make ToughRoad SLR GX the right choice for adventuring into the unknown. When the pavement ends, your ride doesn’t have to. The fast-rolling 700c wheels are fitted with high-volume Giant tubeless tires. These allow you to run lower tire pressure for comfort and traction, and they also reduce the risk of flat tires. The D-Fuse seatpost absorbs road vibration and shocks to help minimize fatigue on long rides. And powerful disc brakes with 160mm rotors give you added confidence and control on rough roads and in all types of weather. Thoughtful details including integrated rack mounts and the X-Defender downtube complete the package, making ToughRoad SLR GX the perfect machine for tackling imperfect roads. Tubeless ready.

  • ALUXX SLR-grade aluminum frame with D-Fuse carbon composite seatpost
  • Giant carbon composite fork with alloy/composite OverDrive hybrid steerer
  • SRAM Apex 1x11-speed drivetrain
  • SRAM Apex HRD hydraulic disc brakes
  • Giant P-X2 Disc wheelset with Giant CrossCut Gravel 2 tubeless tyres
  • Colour: Brush Aluminum/Black

Techs & Features

ALUXX SLR Aluminium Technology
D-Fuse Technology
OverDrive

Geometry

bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  XSSMM/LLXL
ASeat Tube Length (mm) (inch)39015.442016.546018.149019.352020.555021.7
BSeat Tube Angle (degrees)74.0°73.5°73.5°73.0°72.5°72.5°
CTop Tube Length (mm) (inch)53020.954021.355021.756522.258022.859023.2
DHead Tube Length (mm) (inch)1003.91104.31254.91405.51556.11756.9
EHead Tube Angle (degrees)70.5°70.5°70.5°71.0°71.0°71.0°
FFork Rake (mm) (inch)421.7421.7421.7421.7421.7421.7
GTrail (mm) (inch)833.3833.3833.3793.1793.1793.1
HWheelbase (mm) (inch)103140.6103740.8104841.3105341.5106241.8107342.2
IChain Stay Length (mm) (inch)45017.745017.745017.745017.745017.745017.7
JBottom Bracket Drop (mm) (inch)702.8702.8702.8702.8702.8702.8
KStack (mm) (inch)55121.75602257422.659123.360523.862424.6
LReach (mm) (inch)37214.637414.73801538415.138915.339315.5
MStand Over Height (mm) (inch)69727.472028.375329.677730.680231.682832.6
NHandlebar Width (mm) (inch)40015.742016.544017.344017.346018.146018.1
OStem Length (mm) (inch)702.8803.1903.5903.51003.91003.9
PCrank Length (mm) (inch)1656.51706.71706.7172.56.8172.56.81756.9
QWheel Size 700C700C700C700C700C700C
Specs
  • Sizes
    S, M, ML, L
  • Colours
    Satin Brushed Aluminium / Blast* Black / Blast* Charcoal / Carbon Smoke** Fork (*Blast = rough/fine grit textured finish) (**Carbon 'Smoke' paint finish = semiopaque coating for subtler carbon detail)
  • Frame
    ALUXX SLR-Grade Aluminum
  • Fork
    Advanced-Grade Composite, Alloy OverDrive Steerer
  • Handlebar
    Giant Connect XR Ergo-Control
  • Stem
    Giant Connect
  • Seatpost
    Giant D-Fuse Composite
  • Saddle
    Giant Contact (Neutral)
  • Pedals
    Not Included
  • Shifters
    SRAM Apex 1 11 speed
  • Rear Derailleur
    SRAM Apex 1
  • Brakes
    SRAM Apex 1 Hydraulic Disc
  • Brake Levers
    SRAM Apex 1
  • Cassette
    SRAM PG 1130, 11x42
  • Chain
    KMC X11-1
  • Crankset
    SRAM Apex 1, 40t
  • Bottom Bracket
    SRAM GXP
  • Rims
    Giant P-X2 Wheelset
  • Hubs
    Giant Performance Tracker Disc, Sealed Bearing
  • Spokes
    Sapim Race
  • Tyres
    Giant CrossCut Gravel 2, 700x40 Tubeless
  • Extras
    X-DeFender Downtube and ChainStay Protector, Tyre Sealant
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Every effort has been made to ensure accuracy throughout this website. However, Giant reserves the right to change bike specifications, features, prices and colours without prior notice.
