TCX Advanced Pro Frameset

2022

Fast starts, tight corners, a blur of speed through dirt, sand and mud. Proven by elite cyclocross pros for years, the latest TCX Advanced Pro is built to win.

Key Performance Factors

Elite level efficiency

Advanced-grade composite frameset is 17.5 percent lighter than the previous generation while retaining its best-in-class torsional/pedalling stiffness.

Total Control

Integrated disc brake technology with flat mounts and thru-axles delivers added control in variable conditions and all types of weather.

Smooth ride quality

D-Fuse composite seatpost helps absorb bumps and vibrations, and you also have the option to switch to a standard 30.9mm round or dropper post depending on your riding style and terrain.

Highlights

The superlight composite frame is handcrafted with race-proven geometry and asymmetrical chainstays for optimal power transfer. The D-Fuse composite seatpost helps smooth out bumps and vibrations, and you also have the option to use a 30.9mm round standard or dropper seatpost.

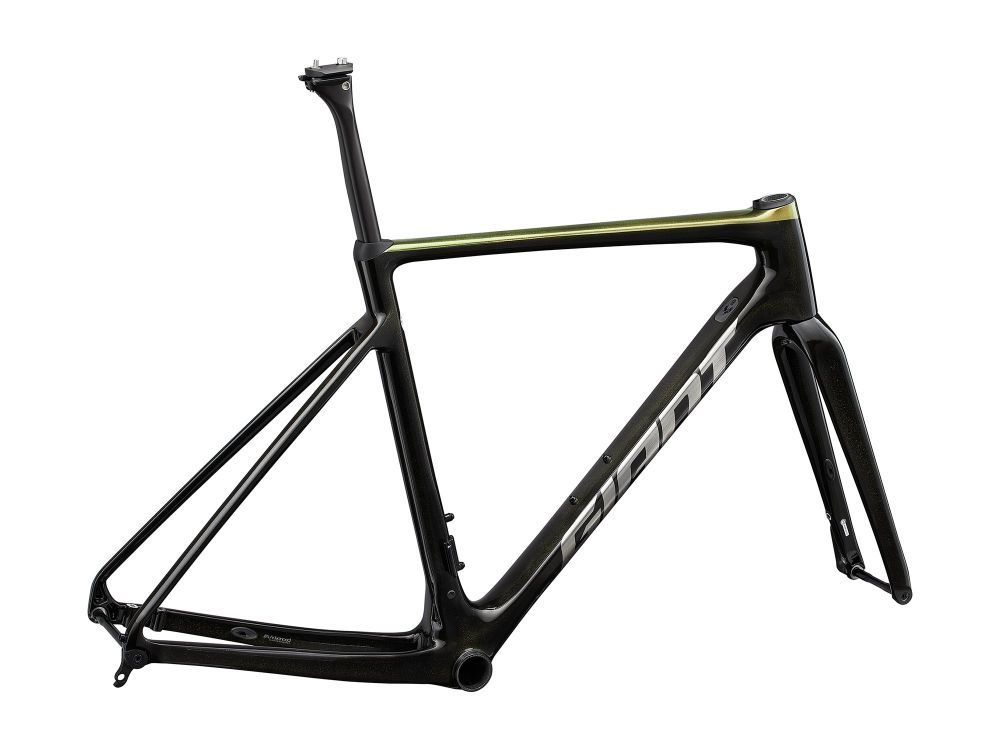

TCX Advanced Pro Frameset with interactive tooltips

Geometry

bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
 XSSMMLLXL
A Seat Tube Length (mm) (inch)49019.350519.952520.754521.555521.956522.2
B Seat Tube Angle (degrees)74.0°73.5°73.0°73.0°73.0°73.0°
C Top Tube Length (mm) (inch)51520.353020.954521.55602257522.659023.2
D Head Tube Length (mm) (inch)1184.61335.21485.81636.417871937.6
E Head Tube Angle (degrees)70.7°71.0°71.5°72.0°72.5°72.5°
F Fork Rake (mm) (inch)502502502502502502
G Trail (mm) (inch)70.32.868.32.765.12.661.82.458.62.358.62.3
H Wheelbase (mm) (inch)100639.6101439.9102040.2103040.6104040.9105541.5
I Chain Stay Length (mm) (inch)43016.943016.943016.943016.943016.943016.9
J Bottom Bracket Drop (mm) (inch)602.4602.4602.4602.4602.4602.4
K Stack (mm) (inch)52520.752520.755621.957222.558923.260323.7
L Reach (mm) (inch)36514.437014.637514.838515.239515.640616
M Stand Over Height (mm) (inch)77530.57883180731.882632.583232.884533.3
N Handlebar Width (mm) (inch)40015.740015.742016.542016.544017.344017.3
O Stem Length (mm) (inch)702.8803.1903.51003.91003.91104.3
P Crank Length (mm) (inch)1706.71706.7172.56.8172.56.81756.91756.9
Q Wheel Size 700C700C700C700C700C700C
Specs
  • Sizes
    XS, S, M, M/L, L
  • Colours
    Gloss Panther Black / Chameleon Saturn
  • Frame
    Advanced-Grade Composite, disc
  • Fork
    Advanced-Grade Composite, full-composite OverDrive 2 steerer, disc
  • Shock
    N/A
  • Seatpost
    Giant D-Fuse SLR, composite, -5/+15mm offset
  • Extras
    Thru-axles, headset plus spacers
  • Max Tyre Clearance
    45mm
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Every effort has been made to ensure accuracy throughout this website. However, Giant reserves the right to change bike specifications, features, prices and colours without prior notice.
