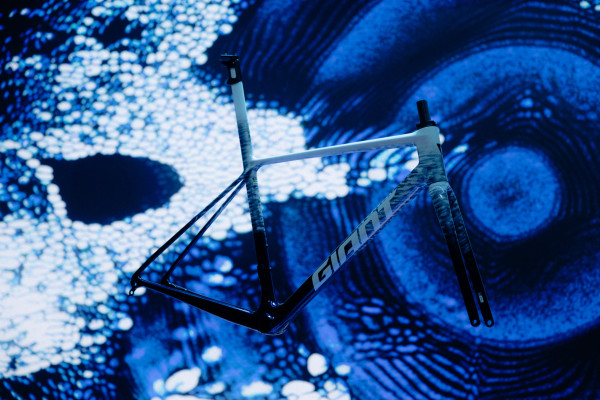

TCR Advanced SL Frameset

£3,499

From hors categorie climbs to rollers and flats, this WorldTour level race bike is the pro’s choice for all-rounder performance. The all-new flagship TCR uses system integration and innovative construction methods to deliver a clear advantage on the road.

Key Performance Factors

SYSTEM OPTIMIZATION

The frame, fork and integrated seatpost are engineered, developed and tested to perform as a system. The fork features a D-shaped steerer tube with corresponding spacers that, in addition to improving aerodynamics, also allows the cables to be internally routed through the handlebars, stem and frame/fork for a cleaner profile. And the signature ISP saves 40g while also adding road smoothing compliance and further improving its aero performance.

WINNING EFFICIENCY

Featuring a greater stiffness-to-weight ratio than the previous generation, along with new aero tube shaping and a lighter overall weight, this uncompromising race bike delivers explosive acceleration and unyielding pedaling stiffness. The result is race-winning performance in the moments that count.

INTEGRATED AERODYNAMICS

From the truncated ellipse shape of frameset tubing to a new cockpit design and component integration, it all adds up to a more streamlined profile that helps give the flagship TCR Advanced SL 0 model a 4.19-watt advantage over the previous generation.

MADE FASTER

This pro-level frameset is designed for competitive road riders who obsess over performance. With a special colorway inspired by the colors of Team Jayco AlUla, it’s a limited-edition frameset with a proven track record for grand tour pros and everyday riders alike. Its legendary ride quality, system integration and innovative construction methods make it more efficient than ever. The down tube is redesigned over the previous generation for improved aerodynamics. And the integrated seatpost reduces weight, improves aero performance, and adds road-smoothing compliance.

TCR Advanced SL Frameset Team Edition with interactive tooltips

Techs & Features

Advanced SL Composite Technology

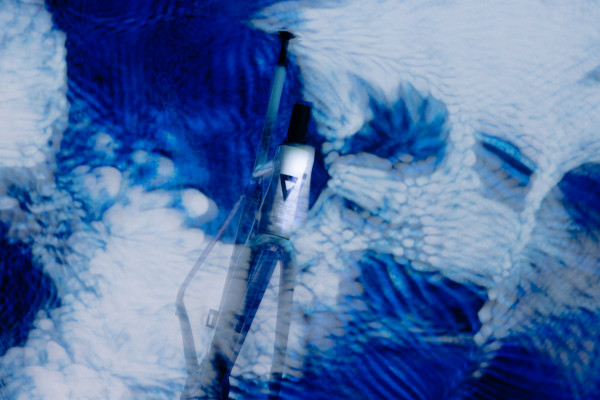

Integrated Seatpost

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  • S
      165 cm5’5”  to 175 cm5’9”
  • M
      171 cm5’7”  to 181 cm5’11”
  • ML
      177 cm5’10”  to 187 cm6’2”
  • L
      183 cm6’0”  to 193 cm6’4”
bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
 SMMLL
A Seat Tube Length (mm) (inch)7102874029.177030.380031.5
B Seat Tube Angle (degrees)74.0°73.5°73.0°73.0°
C Top Tube Length (mm) (inch)53521.155021.756522.258022.8
D Head Tube Length (mm) (inch)1305.11455.71656.51857.3
E Head Tube Angle (degrees)72.3°73.0°73.0°73.0°
F Fork Rake (mm) (inch)451.8451.8451.8451.8
G Trail (mm) (inch)642.559.22.359.22.359.22.3
H Wheelbase (mm) (inch)97738.598038.699139100639.6
I Chain Stay Length (mm) (inch)40515.940515.940515.940515.9
J Bottom Bracket Drop (mm) (inch)702.8702.8672.6672.6
K Stack (mm) (inch)52820.854521.556222.158122.9
L Reach (mm) (inch)38315.138815.339315.540215.8
M Stand Over Height (mm) (inch)73428.975229.676830.278630.9
N Handlebar Width (mm) (inch)42016.544017.344017.344017.3
O Stem Length (mm) (inch)903.51003.91104.31104.3
P Crank Length (mm) (inch)1656.51706.71706.7172.56.8
Specs
  • Sizes
    S, M, M/L, L
  • Colours
    Gloss Polar Tide
  • Frame
    Advanced SL-grade Composite, 12x142mm thru-axle, integrated seatpost, disc
  • Fork
    Advanced SL-grade Composite, full-composite OverDrive Aero steerer, 12x100mm thru-axle, disc
  • Seatpost
    Giant Integrated Seatpost, -5/+15mm offset
  • Extras
    computer mount, 33mm max tire size
  • Max Tyre Clearance
    33mm
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
