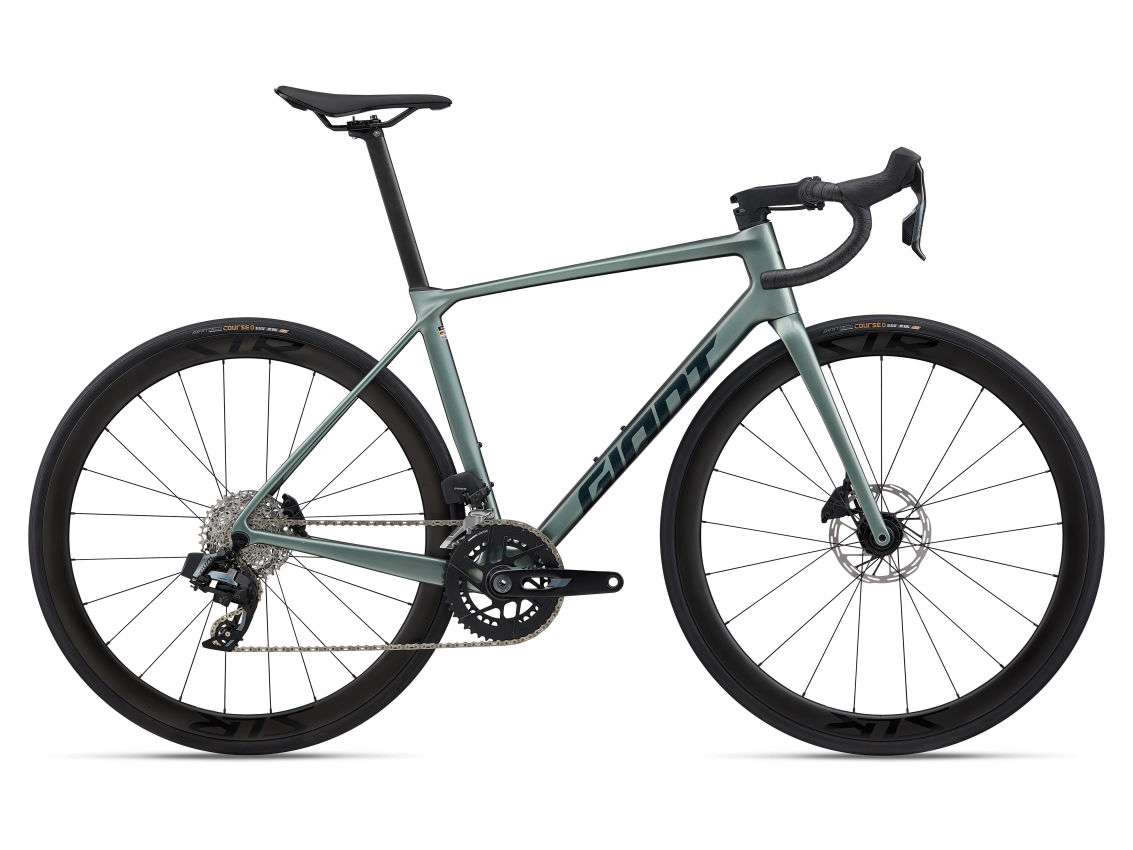

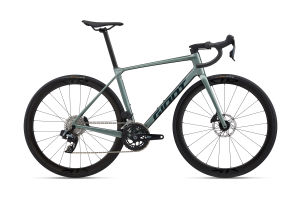

TCR Advanced 0 (AXS)

£3,399

Similar Products

Best For: Race

TCR Advanced 0

£3,299

Best For: Race

TCR Advanced 1

£2,799

Best For: Race

TCR Advanced 2

£2,299

Winning race bikes have just the right balance of light weight, superior stiffness and smooth compliance on the road. TCR Advanced delivers on all three.

Key Performance Factors

Class-leading efficiency

A high stiffness-to-weight ratio combined with strategically placed aero tube shaping results in faster climbing, explosive acceleration and unyielding pedaling stiffness for race-winning performance.

Advanced aerodynamics

This is where the TCR’s most quantifiable gains can be found compared to previous generation models. Every tube shape was analyzed, engineered and tested to create an overall structure with significantly lower drag at a wider range of yaw angles.

Total control

A composite fork delivers torsional stiffness for sharp handling and steering precision, while a Giant WheelSystem with tubeless technology allows you to run lower tire pressures for increased grip and a reduced risk of punctures.

Techs & Features

Advanced Composite Technology
Compact Road Design
PowerCore
Tubeless System

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  • S
      165 cm5’5”  to 175 cm5’9”
  • M
      171 cm5’7”  to 181 cm5’11”
  • ML
      177 cm5’10”  to 187 cm6’2”
  • L
      183 cm6’0”  to 193 cm6’4”
  • XL
      189 cm6’2”  to 199 cm6’6”
bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
 SMMLLXL
A Seat Tube Length (mm) (inch)44517.547018.550019.753020.956022
B Seat Tube Angle (degrees)74.0°73.5°73.0°73.0°72.5°
C Top Tube Length (mm) (inch)53521.155021.756522.258022.860023.6
D Head Tube Length (mm) (inch)1305.11455.71656.51857.32007.9
E Head Tube Angle (degrees)72.3°73.0°73.0°73.0°73.0°
F Fork Rake (mm) (inch)451.8451.8451.8451.8451.8
G Trail (mm) (inch)642.559.22.359.22.359.22.359.22.3
H Wheelbase (mm) (inch)97738.598038.699139100639.6102040.2
I Chain Stay Length (mm) (inch)40515.940515.940515.940515.940515.9
J Bottom Bracket Drop (mm) (inch)702.8702.8672.6672.6672.6
K Stack (mm) (inch)52820.854521.556222.158122.959623.5
L Reach (mm) (inch)38315.138815.339315.540215.841216.2
M Stand Over Height (mm) (inch)73428.975229.676830.278630.980331.6
N Handlebar Width (mm) (inch)3801540015.740015.742016.542016.5
O Stem Length (mm) (inch)903.51003.91104.31104.31204.7
P Crank Length (mm) (inch)1656.51706.71706.7172.56.8172.56.8
Specs
  • Sizes
    S, M, M/L, L, XL
  • Colours
    Alpine Green
  • Frame
    Advanced-grade Composite, 12x142mm thru-axle, disc
  • Fork
    Advanced-grade Composite, full-composite OverDrive steerer, 12x100mm thru-axle, disc
  • Shock
    N/A
  • Handlebar
    Giant Contact XS:38cm, S:38cm, M:40cm, M/L:40cm, L:42cm, XL:42cm
  • Grips
    Stratus Lite 3.0
  • Stem
    Giant Contact AeroLight XS:80mm, S:90mm, M:100mm, M/L:110mm, L:110mm, XL:120mm
  • Seatpost
    Giant Variant, composite, -5/+15mm offset
  • Saddle
    Giant Approach
  • Pedals
    PEDALS NOT SUPPLIED
  • Shifters
    SRAM Rival AXS E1
  • Front Derailleur
    SRAM Rival AXS E1
  • Rear Derailleur
    SRAM Rival AXS E1
  • Brakes
    SRAM Rival E1 hydraulic, SRAM PaceLine rotors [F]160mm, [R]140mm
  • Brake Levers
    SRAM Rival AXS
  • Cassette
    SRAM Rival E1, 12-speed, 10x36
  • Chain
    SRAM Rival E1
  • Crankset
    SRAM Rival E1, 33/46 XS:165mm, S:165mm, M:170mm, M/L:170mm, L:172.5mm, XL:172.5mm
  • Bottom Bracket
    SRAM DUB, press fit
  • Rims
    Giant SLR 2 40 WheelSystem, [F]40mm, [R]40mm
  • Hubs
    [F] Giant Low Friction Hub, CenterLock, 12mm thru-axle, [R] Giant Low Friction Hub, 30T pawl driver, CenterLock, 12mm thru-axle
  • Spokes
    Sapim
  • Tyres
    Giant Gavia Course 0, tubeless, 700x28c (28mm), folding
  • Extras
    tubeless prepared, 33mm max tire size
  • Max Tyre Clearance
    33mm
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Every effort has been made to ensure accuracy throughout this website. However, Giant reserves the right to change bike specifications, features, prices and colours without prior notice.
