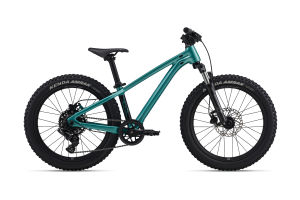

STP 20 FS

£650

Dirt skills start here. With a lightweight aluminum frame that has a low stand-over height, a smooth-riding composite fork, and 20-inch wheels, the new STP 20 gives kids the confidence and maneuverability they need to start leaning into the turns, shifting their weight, and popping some air. It’s all the things that make riding fun.

Key Performance Factors

FIT FOR YOUTH

The frame’s low stand-over height offers greater balance and stability with a lower center of gravity that’s ideal for riders 110-130cm tall. The 20-inch wheels and shorter 105mm cranks make for easier handling and smoother pedaling.

GREATER CONTROL

Youth-specific components including a Grit Core Lite saddle, smaller diameter handlebars, and hydraulic brakes with lighter modulation give STP 20 a smooth, controlled ride, helping young riders focus on building skills and gaining confidence.

PLAYFUL AGILITY

With a lightweight, durable ALUXX aluminum frame and Advanced-grade composite fork, the STP 20 is easy for young riders to maneuver. A shorter wheelbase and chainstays add a playful feel and make it easier to lift the front wheel while riding.

Highlights

STP 20 with interactive tooltips

Techs & Features

ALUXX Aluminium Technology

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  • One Size
      110 cm3’7”  to 130 cm4’3”
bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
 One Size
A Seat Tube Length (mm) (inch)26510.4
A1 Seat Post Insertion Depth (mm) (inch)2007.9
B Seat Tube Angle (degrees)73.0°
C Top Tube Length (mm) (inch)44417.5
D Head Tube Length (mm) (inch)903.5
E Head Tube Angle (degrees)67.0°
F Fork Rake (mm) (inch)401.6
G Trail (mm) (inch)913.6
H Wheelbase (mm) (inch)82132.3
I Chain Stay Length (mm) (inch)32312.7
J Bottom Bracket Drop (mm) (inch)502
K Stack (mm) (inch)44717.6
L Reach (mm) (inch)30111.9
M Stand Over Height (mm) (inch)53621.1
N Handlebar Width (mm) (inch)60023.6
O Stem Length (mm) (inch)401.6
P Crank Length (mm) (inch)1054.1
Specs
  • Sizes
    OSFM
  • Colours
    Teal
  • Frame
    ALUXX-grade aluminum, 12x142mm thru-axle
  • Fork
    SR XCT Jr. L20, coil spring, 9x100mm QR, 63mm travel
  • Shock
    N/A
  • Handlebar
    Giant Sport, alloy, 31.8mm, 600mm
  • Grips
    Giant Junior
  • Stem
    forged alloy, 0-degree
  • Seatpost
    alloy, two-bolt, 30.9x260mm
  • Saddle
    Giant Grit Jr.
  • Pedals
    platform
  • Shifters
    MicroSHIFT Advent, 1x8, youth ergonomics
  • Front Derailleur
    N/A
  • Rear Derailleur
    MicroSHIFT Advent, short cage
  • Brakes
    Tektro HD-J2820 hydraulic [F]160mm, [R]160mm rotors
  • Brake Levers
    Tektro HD-J2820
  • Cassette
    Shimano CS-H083, 11x38
  • Chain
    KMC X9
  • Crankset
    alloy forged, 30t, 140mm
  • Bottom Bracket
    threaded cartridge
  • Rims
    Giant TRA 2, 20", alloy
  • Hubs
    [F] Giant Tracker, QR, 6-bolt, [R] Giant Tracker, thru-axle, 6-bolt, HG driver body
  • Spokes
    stainless, 14g
  • Tyres
    Kenda Amrak, 20x2.2"
  • Compatibility
    Compatible with Direct Mount KSA Adjustable Kickstand
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Every effort has been made to ensure accuracy throughout this website. However, Giant reserves the right to change bike specifications, features, prices and colours without prior notice.
