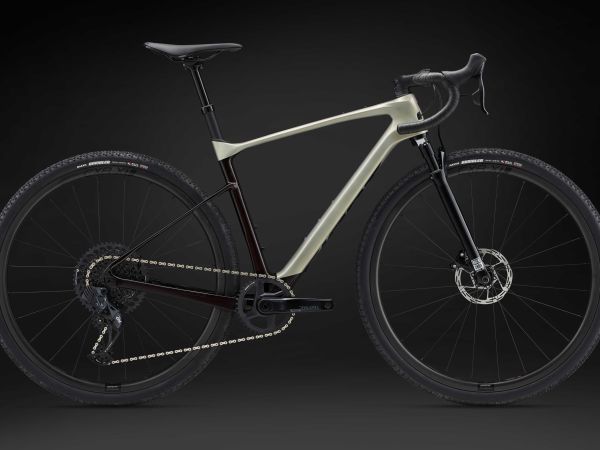

Revolt X Advanced Pro 0

£6,499

Share

On most models

Within 30 days

Starting From £35

Washboard descents, sketchy dirt, gravel and rocks of all shapes and sizes. You never know what you’ll get on a gravel ride. This composite gravel machine has front suspension and engineered compliance to help you float through it all with speed and control.

Key Performance Factors

Smooth control

Composite frameset is designed specifically for front suspension. With 40mm of travel, the fork absorbs impacts so you can ride smoother and faster on rugged gravel and dirt.

Tuned compliance

Lowered seatstays with smaller diameter tubes absorb road shocks and vibrations. A Contact SL XR D-Fuse handlebar adds more compliance without sacrificing the stiffness needed for cornering, sprinting or climbing.

Adaptable to the terrain

A flip chip on the rear dropout adjusts the wheelbase short for quicker handling, or long for improved stability at speed. The long setting also allows for larger diameter tyres up to 53mm. You can choose the included dropper/suspension seatpost for added

Techs & Features

Advanced Composite Technology
D-Fuse Technology
OverDrive
Tubeless System
Flip Chip - Dropout

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  • S
      159 cm5’3”  to 171 cm5’7”
  • M
      169 cm5’7”  to 181 cm5’11”
  • ML
      174 cm5’9”  to 186 cm6’1”
  • L
      179 cm5’10”  to 191 cm6’3”
  • XL
      189 cm6’2”  to 200 cm6’7”
bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  SMMLLXL
  SHORT | LONGSHORT | LONGSHORT | LONGSHORT | LONGSHORT | LONG
ASeat Tube Length (mm) (inch)45017.747018.549019.351020.153020.9
BSeat Tube Angle (degrees)73.5° | 73.4°73.5° | 73.4°73.0° | 72.9°73.0° | 72.9°73.0° | 72.9°
CTop Tube Length (mm) (inch)55321.85602257522.65852360023.6
DHead Tube Length (mm) (inch)1003.91154.51305.11455.71606.3
EHead Tube Angle (degrees)71.0° | 70.9°71.5° | 71.4°72.0° | 71.9°72.0° | 71.9°72.0° | 71.9°
FFork Rake (mm) (inch)502502502502502
GTrail (mm) (inch)76.93 | 80.33.173.52.9 | 76.8370.12.8 | 73.42.970.12.8 | 73.42.970.12.8 | 73.42.9
HWheelbase (mm) (inch)102440.3 | 103440.7102640.4 | 103640.8103140.6 | 104141104141 | 105141.4105741.6 | 106742
IChain Stay Length (mm) (inch)42516.7 | 43517.142516.7 | 43517.142516.7 | 43517.142516.7 | 43517.142516.7 | 43517.1
JBottom Bracket Drop (mm) (inch)682.7 | 692.7682.7 | 692.7682.7 | 692.7682.7 | 692.7682.7 | 692.7
KStack (mm) (inch)5602257622.759223.360723.962124.4
LReach (mm) (inch)38715.238915.339315.539915.741016.1
MStand Over Height (mm) (inch)73629 | 74329.375529.7 | 7613077230.4 | 77830.679031.1 | 79631.380831.8 | 81432
NHandlebar Width (mm) (inch)44017.346018.146018.148018.948018.9
OStem Length (mm) (inch)602.4702.8803.1803.1903.5
PCrank Length (mm) (inch)1706.7172.56.8172.56.81756.91756.9
QWheel Size 700x 42C |700x 42C |700x 42C |700x 42C |700x 42C |
Specs
  • Sizes
    S, M, M/L, L, XL
  • Colours
    Gloss Kelp Forest/Charcoal/Chrome
  • Frame
    Advanced-grade composite, 12x142mm thru-axle, disc, flip chip dropout
  • Fork
    Fox 32 Float AX Performance Elite, 40mm, Fit 4 damper12x100mm thru-axle
  • Shock
    N/A
  • Handlebar
    Giant Contact SL XR D-Fuse, 31.8mm S:44cm, M:46cm, M/L:46cm, L:48cm, XL:48cm
  • Grips
    Stratus Lite 3.0
  • Stem
    Giant Contact, 8-degree S:50mm, M:60mm, M/L:70mm, L:70mm, XL:80mm
  • Seatpost
    Post Moderne, dropper, 30.9mm with 30mm of suspension S:415mm / 100mm drop M:415mm / 100mm drop M/L: 415mm / 100mm drop L:415mm / 100mm drop XL: 415mm / 100mm drop
  • Saddle
    Giant Approach SL
  • Pedals
    N/A
  • Shifters
    SRAM Force eTap AXS, 1x12
  • Front Derailleur
    N/A
  • Rear Derailleur
    SRAM X01 Eagle AXS
  • Brakes
    SRAM Force eTap AXS hydraulic, SRAM CenterLine rotors [F]160mm, [R]160mm
  • Brake Levers
    SRAM Force eTap AXS hydraulic
  • Cassette
    SRAM XG-1295, 12-speed, 10x52
  • Chain
    SRAM X01 Eagle
  • Crankset
    SRAM Force D1 DUB, 40t S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
  • Bottom Bracket
    SRAM DUB, press fit
  • Rims
    Giant CXR 1 X1 Carbon Disc WheelSystem, [F] 25.8mm, [R] 25.8mm
  • Hubs
    [F] Giant CXR X alloy, CenterLock, 12mm thru-axle, [R] Giant CXR X alloy, 60t ratchet driver, CenterLock, 12mm thru-axle
  • Spokes
    Sapim Laser
  • Tyres
    Maxxis Rambler, 700x50c, tubeless
  • Extras
    Factory tubeless set up, 53mm max tyre size in "long" flip chip position, 45mm max tyre size in "short" flip chip position
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Every effort has been made to ensure accuracy throughout this website. However, Giant reserves the right to change bike specifications, features, prices and colours without prior notice.
