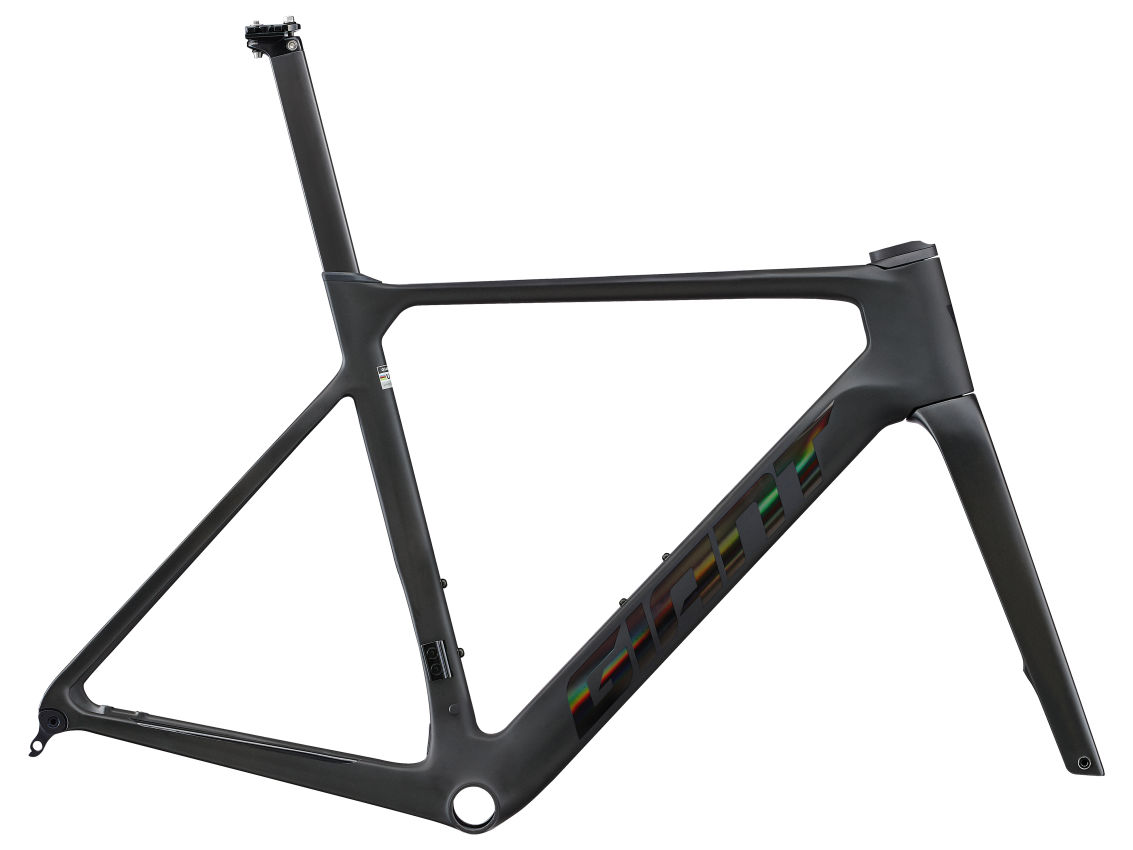

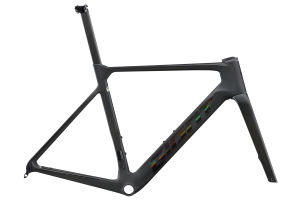

Propel Advanced Pro Frameset

£2,199

Techs & Features

Advanced Composite Technology
AeroSystem Shaping Technology
OverDrive Aero

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  • XS
      157 cm5’2”  to 169 cm5’7”
  • S
      165 cm5’5”  to 175 cm5’9”
  • M
      171 cm5’7”  to 181 cm5’11”
  • ML
      177 cm5’10”  to 187 cm6’2”
  • L
      183 cm6’0”  to 193 cm6’4”
  • XL
      189 cm6’2”  to 199 cm6’6”
bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
 XSSMMLLXL
A Seat Tube Length (mm) (inch)46518.350019.752020.554521.557522.659523.4
B Seat Tube Angle (degrees)74.5°74.0°73.5°73.0°73.0°72.5°
C Top Tube Length (mm) (inch)52020.553521.155021.756522.258022.860023.6
D Head Tube Length (mm) (inch)1204.71305.11455.71656.51857.32007.9
E Head Tube Angle (degrees)71.0°72.3°73.0°73.0°73.0°73.0°
F Fork Rake (mm) (inch)451.8451.8451.8451.8451.8451.8
G Trail (mm) (inch)70.52.862.52.457.82.257.82.257.82.257.82.2
H Wheelbase (mm) (inch)97638.497738.598038.699139100639.6102040.2
I Chain Stay Length (mm) (inch)40515.940515.940515.940515.940515.940515.9
J Bottom Bracket Drop (mm) (inch)722.8702.8702.8672.6672.6672.6
K Stack (mm) (inch)51720.452820.854521.556222.158122.959623.5
L Reach (mm) (inch)37614.838315.138815.339315.540215.841216.2
M Stand Over Height (mm) (inch)72228.475329.677030.379431.382132.383432.8
N Handlebar Width (mm) (inch)380153801540015.740015.742016.542016.5
O Stem Length (mm) (inch)803.1903.51003.91104.31104.31204.7
P Crank Length (mm) (inch)1656.51656.51706.71706.7172.56.8172.56.8
Specs
  • Sizes
    XS, S, M, M/L, L, XL
  • Colours
    Stealth Chrome/Iris
  • Frame
    Advanced-grade Composite, 12x142mm thru-axle, disc
  • Fork
    Advanced SL-grade Composite, full-composite OverDrive Aero steerer, 12x100mm thru-axle, disc
  • Seatpost
    Giant Vector, composite, -5/+15mm offset
  • Extras
    computer mount, bottle cages, tubeless prepared, 32mm max tire size
  • Max Tyre Clearance
    32mm
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Every effort has been made to ensure accuracy throughout this website. However, Giant reserves the right to change bike specifications, features, prices and colours without prior notice.
