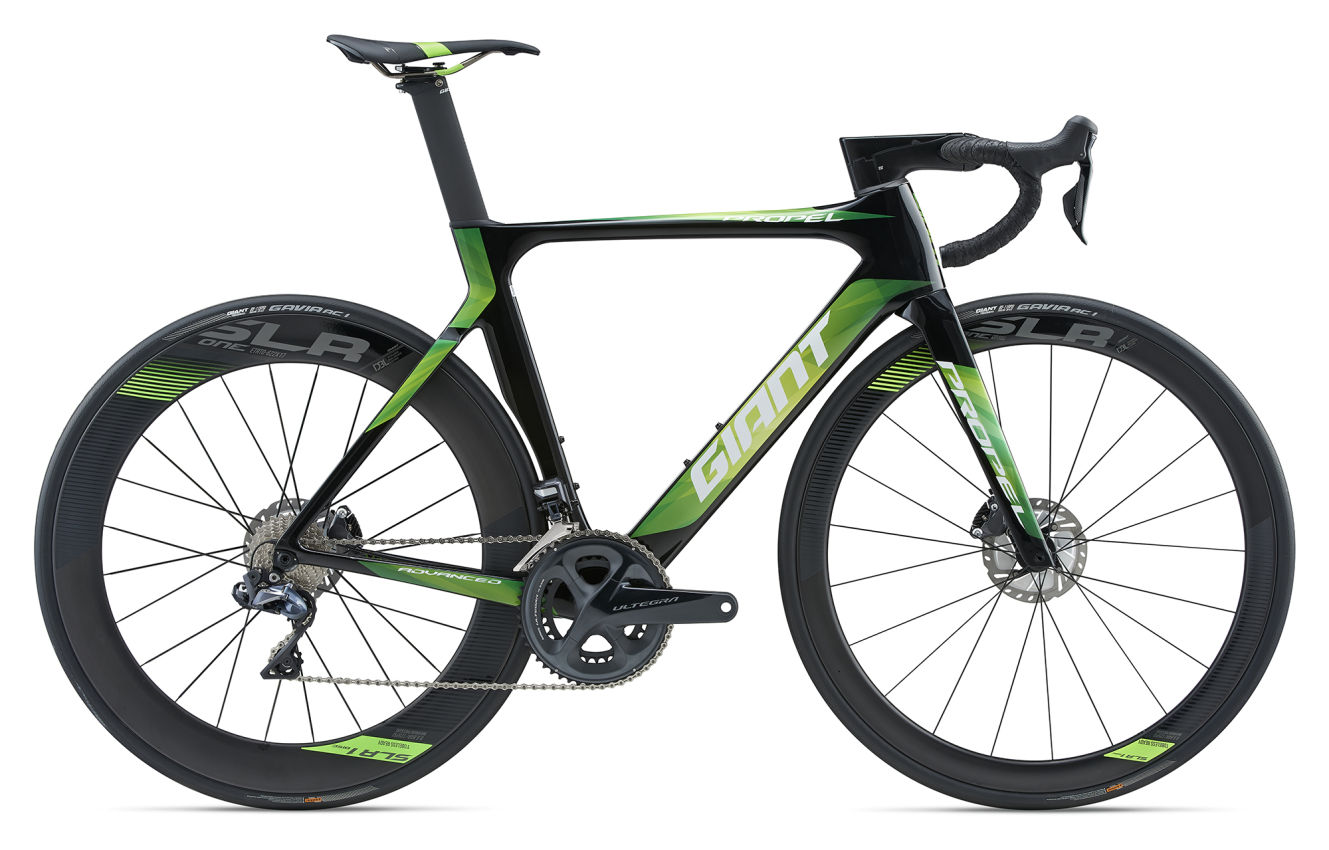

Propel Advanced Pro Disc

2018

THE FUTURE OF AERO ROAD. LIGHTWEIGHT, STIFF AND NEARLY INVISIBLE TO THE WIND, PLUS THE ADDED CONTROL OF Disc BRAKES.

Meticulously developed for best-in-class aero road performance, this razor-sharp road racer offers a true advantage for sprinting and solo riding. And new this year, it also incorporates the superior control of disc brakes. The frame is handcrafted using Advanced-grade composite material to produce a bike that’s lightweight and stiff, with a sharp, responsive ride quality. Its disc brakes are completely integrated within the frame using flat-mount calipers and thru-axles designed to optimize the technology. From sprints to solo attacks, cornering and descents, the new Propel Advanced Pro Disc helps you slice through the wind and gain an advantage on the competition. Tubeless Ready

  • Advanced-grade carbon composite frame
  • Advanced-grade carbon composite fork with full-composite OverDrive 2 steerer
  • Shimano Ultegra Di2 11-speed electronic componentry
  • Shimano Ultegra hydraulic disc brakes
  • Giant SLR 1 Aero Disc WheelSystem with 42mm front and 65mm rear full-carbon rims
  • Colour: Carbon Smoke/Green/White

Techs & Features

Advanced Composite Technology
AeroSystem Shaping Technology
OverDrive 2
RideSense
Vector Seatpost

Geometry

bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  XSSMM/LLXL
ASeat Tube Length (mm) (inch)46518.350019.752020.554521.557522.659523.4
BSeat Tube Angle (degrees)74.5°73.5°73.0°73.0°73.0°72.0°
CTop Tube Length (mm) (inch)51520.353521.155021.757022.458022.860523.8
DHead Tube Length (mm) (inch)1204.71305.11455.71656.51857.32007.9
EHead Tube Angle (degrees)71.0°72.5°73.0°73.0°73.0°73.0°
FFork Rake (mm) (inch)451.8451.8451.8451.8451.8451.8
GTrail (mm) (inch)702.8602.4572.2572.2572.2572.2
HWheelbase (mm) (inch)97238.397038.297638.499739.3100739.6102140.2
IChain Stay Length (mm) (inch)40515.940515.940515.940515.940515.940515.9
JBottom Bracket Drop (mm) (inch)702.867.52.667.52.6652.6652.6652.6
KStack (mm) (inch)51720.452920.854521.556222.158122.959523.4
LReach (mm) (inch)37214.637814.938315.139815.740215.841216.2
MStand Over Height (mm) (inch)74429.376930.37873180731.882932.684333.2
NHandlebar Width (mm) (inch)40015.740015.742016.542016.544017.344017.3
OStem Length (mm) (inch)803.1903.51003.91104.31104.31204.7
PCrank Length (mm) (inch)1706.71706.7172.56.8172.56.81756.91756.9
QWheel Size 700C700C700C700C700C700C
Specs
  • Sizes
    S, M, ML, L
  • Colours
    Gloss Carbon Smoke* / Gloss Green / Gloss White (*Carbon 'Smoke' paint finish = semiopaque coating for subtler carbon detail)
  • Frame
    Advanced-Grade Composite, Disc
  • Fork
    Advanced Pro-Grade Composite, Full-Composite OverDrive 2 Steerer, Disc
  • Handlebar
    Giant Contact SLR Aero, composite
  • Stem
    Giant Contact SL Aero, alloy
  • Seatpost
    Giant Vector Composite
  • Saddle
    Giant Contact SL (Forward)
  • Pedals
    Not Included
  • Shifters
    Shimano Ultegra Di2 22 speed
  • Front Derailleur
    Shimano Ultegra Di2
  • Rear Derailleur
    Shimano Ultegra Di2
  • Brakes
    Shimano Ultegra Hydraulic Disc
  • Brake Levers
    Shimano Ultegra Di2 Hydraulic
  • Cassette
    Shimano Ultegra, 11x28
  • Chain
    KMC X11EL-1
  • Crankset
    Shimano Ultegra, 36/52
  • Bottom Bracket
    Shimano PressFit BB72
  • Rims
    Giant SLR 1 Aero Disc WheelSystem, Front: 42mm, Rear: 65mm height
  • Hubs
    Giant SLR 1 Aero Disc Wheel System
  • Spokes
    Giant SLR 1 Aero Disc Wheel System
  • Tyres
    Giant Gavia Race 1 Tubeless, 700x25, Folding
  • Extras
    RideSense ANT+/Bluetooth, Computer Mount, Tyre Sealant
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
