Propel Advanced 1

2019

Share

On most models

Within 30 days

Starting From £35

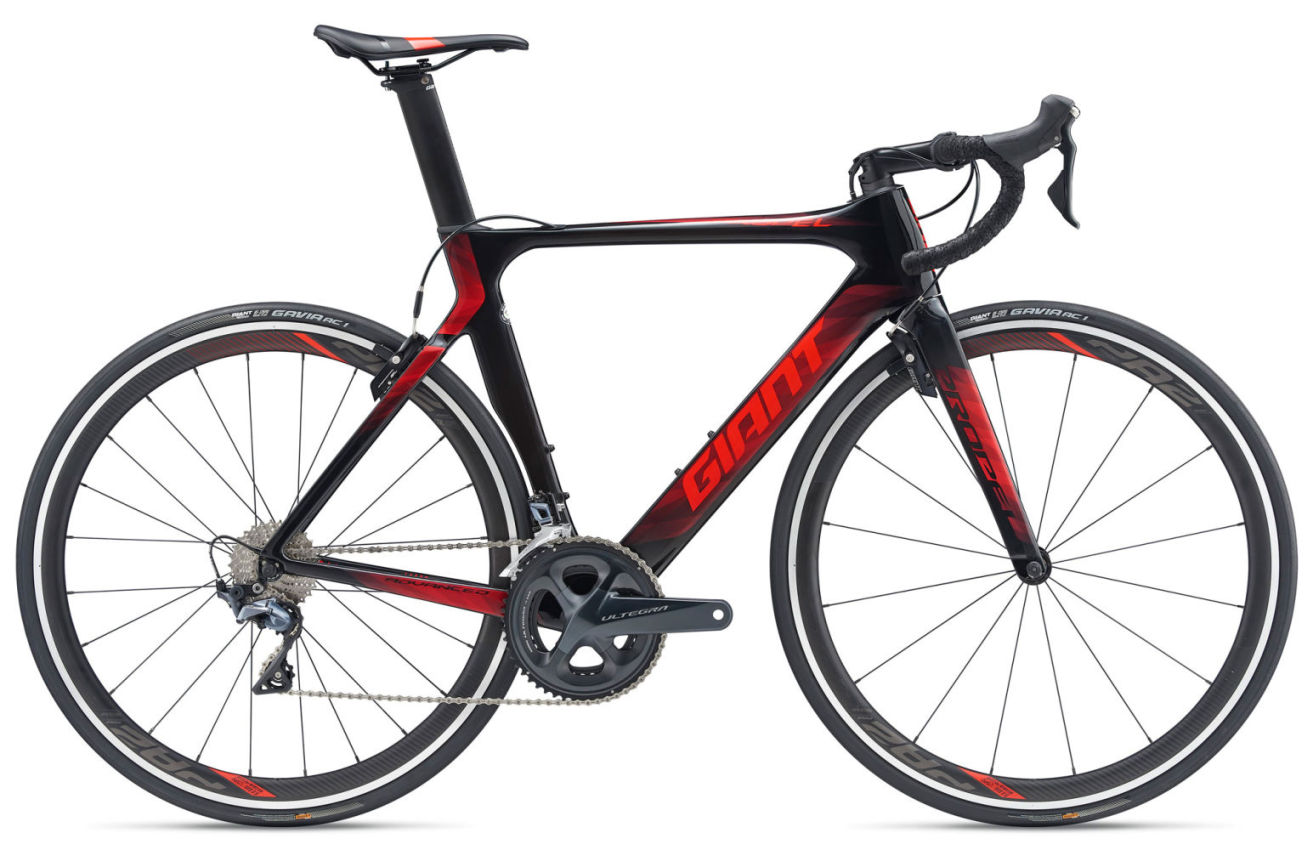

This lightning fast aero road bike minimizes drag and gives you every advantage against the wind, but not at the cost of ride quality. Its lightweight composite frame is tuned for a perfect ride quality, whether you’re sprinting, chasing or making your attack.

Proven aero performance, sharp yet stable handling, and one of the lightest frames in its category. Propel Advanced delivers in all areas, and this new version also features an updated rim brake system to give it better control. The frameset is re-engineered with Giant’s AeroSystem Shaping technology, which means that every tube shape and angle is optimized for minimal drag. The Advanced-grade composite frame is both stiff and superlight, and its new rim-brake technology is integrated with the frameset with linear-style calipers. For pro-level road performance and the ultimate aero advantage, the new Propel Advanced gives you the perfect one-two finish line punch.

Key Performance Factors

Integrated aerodynamics

AeroSystem Shaping, a result of extensive CFD analysis and dynamic wind-tunnel testing, creates the best aerodynamic performance at every yaw angle. A new truncated ellipse airfoil shape delivers the best overall aero performance.

Total control

New integrated rim-brake technology delivers outstanding braking power in most conditions.

Unrivaled efficiency

The frameset, including the new integrated stem and handlebar, features best-in-class weight and stiffness. Increased frame stiffness allows the rider to reach and maintain higher speeds with less effort.

Techs & Features

Advanced Composite Technology
OverDrive
AeroSystem Shaping Technology
Tubeless System
RideSense Ready

Geometry

bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  XSSMMLLXL
ASeat Tube Length (mm) (inch)46518.350019.752020.554521.557522.659523.4
BSeat Tube Angle (degrees)74.5°73.5°73.0°73.0°73.0°72.0°
CTop Tube Length (mm) (inch)51520.353521.155021.757022.458022.860523.8
DHead Tube Length (mm) (inch)1204.71305.11455.71656.51857.32007.9
EHead Tube Angle (degrees)71.0°72.5°73.0°73.0°73.0°73.0°
FFork Rake (mm) (inch)451.8451.8451.8451.8451.8451.8
GTrail (mm) (inch)702.8602.4572.2572.2572.2572.2
HWheelbase (mm) (inch)97238.397038.297638.499739.3100739.6102140.2
IChain Stay Length (mm) (inch)40515.940515.940515.940515.940515.940515.9
JBottom Bracket Drop (mm) (inch)702.8682.7682.7652.6652.6652.6
KStack (mm) (inch)51720.452920.854521.556222.158122.959523.4
LReach (mm) (inch)37214.637814.938315.139815.740215.841216.2
MStand Over Height (mm) (inch)74429.376930.37873180731.882932.684333.2
NHandlebar Width (mm) (inch)40015.740015.742016.542016.544017.344017.3
OStem Length (mm) (inch)803.1903.51003.91104.31104.31204.7
PCrank Length (mm) (inch)1706.71706.7172.56.8172.56.81756.91756.9
QWheel Size 700C700C700C700C700C700C
Specs
  • Sizes
    XS, S, M, M/L, L, XL
  • Colours
    Gloss Carbon Smoke* / Pure Red (*Carbon 'Smoke' paint finish = semi-opaque coating for subtler carbon detail)
  • Frame
    Advanced-Grade Carbon Composite
  • Fork
    Advanced-Grade Carbon Composite, hybrid OverDrive steerer
  • Shock
    N/A
  • Handlebar
    Giant Contact
  • Stem
    Giant Connect
  • Seatpost
    Giant Vector composite
  • Saddle
    Giant Contact (forward)
  • Pedals
    N/A
  • Shifters
    Shimano Ultegra
  • Front Derailleur
    Shimano Ultegra
  • Rear Derailleur
    Shimano Ultegra
  • Brakes
    Giant SpeedControl
  • Brake Levers
    Shimano Ultegra
  • Cassette
    Shimano 105, 11x30
  • Chain
    KMC X11EL-1
  • Crankset
    Shimano Ultegra, 36/52
  • Bottom Bracket
    Shimano Press Fit
  • Rims
    Giant P-A2 wheelset
  • Hubs
    Giant P-A2 wheelset
  • Spokes
    Giant P-A2 wheelset
  • Tyres
    Giant Gavia AC 1 tubeless, 700x25mm
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Every effort has been made to ensure accuracy throughout this website. However, Giant reserves the right to change bike specifications, features, prices and colours without prior notice.
