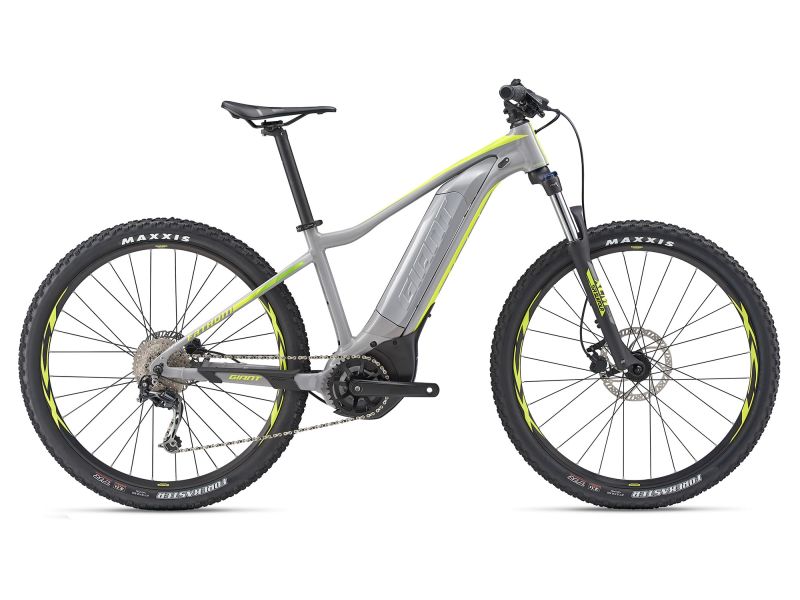

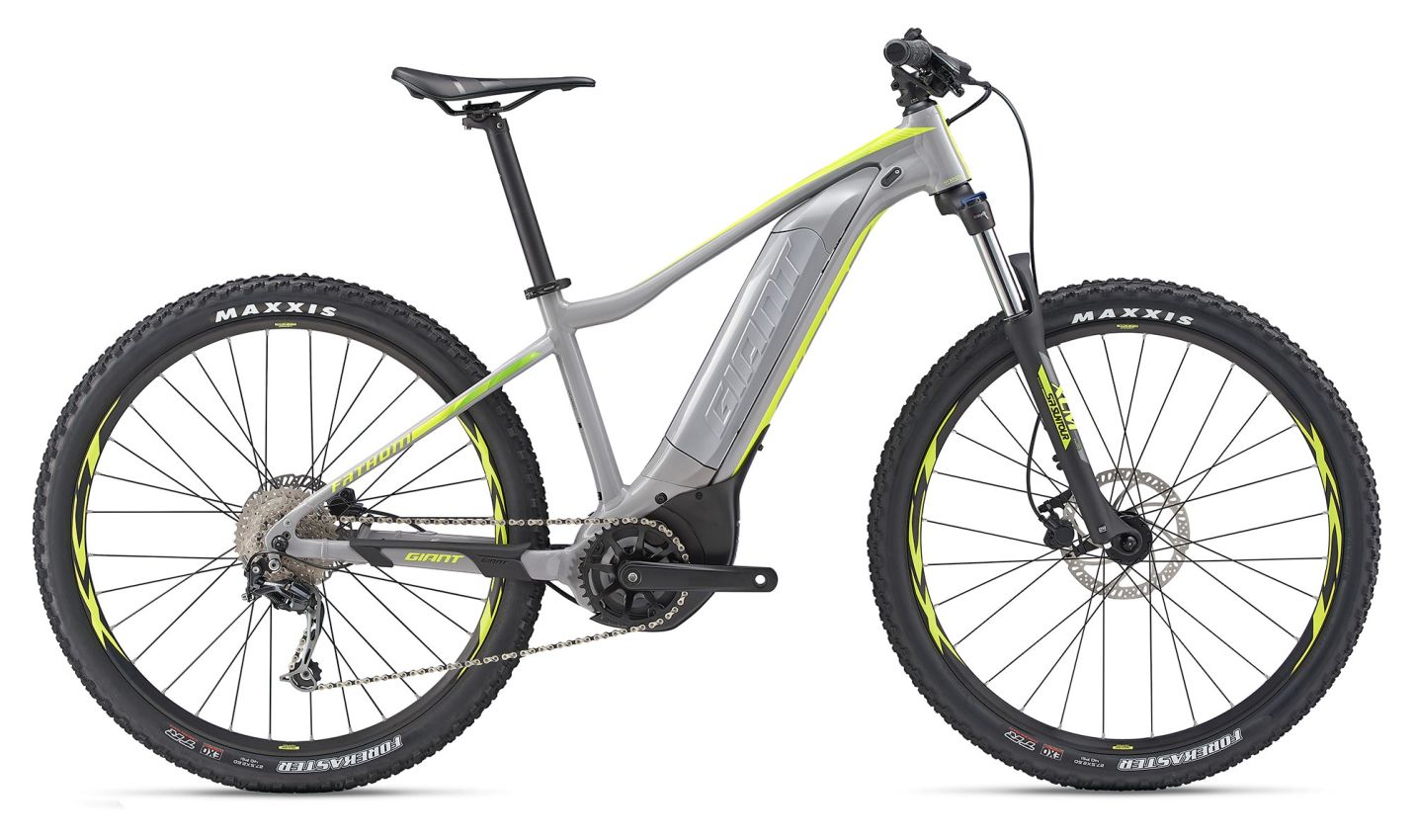

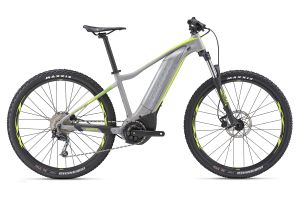

Fathom E+ 3 Electric Bike

2019

Share

As best buy

Within 30 days

Starting From £35

Take control of the trail with this fun new hardtail E-bike. Now you can climb with greater ease and comfort, and ride further—the perfect formula for an enjoyable day on the trail.

The Fathom E+ is a great choice for XC and singletrack terrain. A lightweight ALUXX SL aluminum frame and trail-friendly geometry will help you experience trail riding like never before. The SyncDrive Sport motor delivers smooth, instantaneous power to conquer hills and technical trails. The side-release EnergyPak is integrated into the frame and can be easily removed for charging. And you can control all your settings with the clean, easy-to-use RideControl ONE setup.
  The range figures are a guide and can vary depending on a variety of external factors, such as rider weight, riding style, conditions, weather, tyre pressure, set up and gear selection.

Key Performance Factors

Smooth power delivery

The SyncDrive Sport motor technology delivers smooth, instantaneous power to conquer all kinds of terrain and have more fun.

Superb handling

With both 27.5" & 29" wheel options available, the Fathom E+ offers superior all-round performance for every rider.

Responsive hardtail handling

Lightweight ALUXX SL aluminium frame and trail-friendly geometry keep you in control on off-road terrain.

Techs & Features

ALUXX SL Aluminium Technology
Hybrid Cycling Technology
SyncDrive Sport
RideControl ONE

Geometry

bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  XSSMLXL
ASeat Tube Length (mm) (inch)36514.440515.945517.950519.953521.1
BSeat Tube Angle (degrees)73.0°73.0°73.0°73.0°73.0°
CTop Tube Length (mm) (inch)55521.957522.659523.461524.263525
DHead Tube Length (mm) (inch)1104.31104.31154.51405.51505.9
EHead Tube Angle (degrees)68.0°68.0°68.0°68.0°68.0°
FFork Rake (mm) (inch)461.8461.8461.8461.8461.8
GTrail (mm) (inch)10141014101410141014
HWheelbase (mm) (inch)111543.9113544.7115645.5117846.4119947.2
IChain Stay Length (mm) (inch)47018.547018.547018.547018.547018.5
JBottom Bracket Drop (mm) (inch)451.8451.8451.8451.8451.8
KStack (mm) (inch)61724.361724.362224.564525.465425.7
LReach (mm) (inch)36614.438615.240515.941716.443517.1
MStand Over Height (mm) (inch)7372975329.676029.97873179131.1
NHandlebar Width (mm) (inch)78030.778030.778030.778030.778030.7
OStem Length (mm) (inch)502502602.4602.4702.8
PCrank Length (mm) (inch)1656.51656.51706.71706.71706.7
QWheel Size 27.5+27.5+27.5+27.5+27.5+
Specs
  • Motor
    Giant SyncDrive Sport, 80Nm powered by YAMAHA, 350% tuneable support
  • Sensors
    Giant PedalPlus 4-sensor technology
  • Display
    Giant RideControl ONE, remote button
  • Battery
    Giant EnergyPak 400, 36V 11.3Ah Rechargeable Lithium-Ion
  • Sizes
    S, M, L, XL
  • Colours
    Gloss Solid Grey / Gloss Neon Yellow
  • Frame
    ALUXX aluminum, Overdrive 1½ - 1⅛" head tube, 141mm Boost QR, integrated KS18 kickstand mount
  • Fork
    SR Suntour XCM34 HLO 27,5+ 120mm travel, Tapered 1½ - 1⅛" steerer, lockout
  • Handlebar
    Giant Connect TR, 31,8x780mm
  • Stem
    Giant Connect
  • Seatpost
    Giant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium
  • Saddle
    Giant Contact, Neutral
  • Pedals
    Aluminum Platform
  • Shifters
    Shimano Altus
  • Rear Derailleur
    Shimano Deore, 9-Speed
  • Brakes
    Tektro HD-M285, hydraulic disc, 180mm
  • Brake Levers
    Tektro HD-M285
  • Cassette
    Shimano CS-HG201, 11-36T, 9-Speed
  • Chain
    KMC e.9 Sport, e-bike optimised
  • Crankset
    Forged Alloy minimal Q-factor, 36T Steel Direct Mount ring
  • Rims
    Giant AM 27.5, Tubeless ready, 30mm inner width, e-bike optimised
  • Hubs
    Giant eTracker Sport, [F] 15mm Thru-Axle [R] 141mm QR, e-bike optimised
  • Spokes
    Stainless steel
  • Tyres
    Maxxis Forekaster 27.5x2.6, foldable, 60 TPI, EXO, Tubeless ready, 27.5x2.4-2.8" inner tube with 48mm presta valve
  • Extras
    Giant EnergyPak 4A fast charger
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Every effort has been made to ensure accuracy throughout this website. However, Giant reserves the right to change bike specifications, features, prices and colours without prior notice.
