Blue Blue angle

Fathom 29er 1

2018

Share

On most models

Within 30 days

Starting From £35

TENACIOUS ON THE CLIMBS AND CONFIDENT ON THE DESCENTS. THIS HARDTAIL 29ER BRINGS A BALANCED ATTACK TO XC TERRAIN.

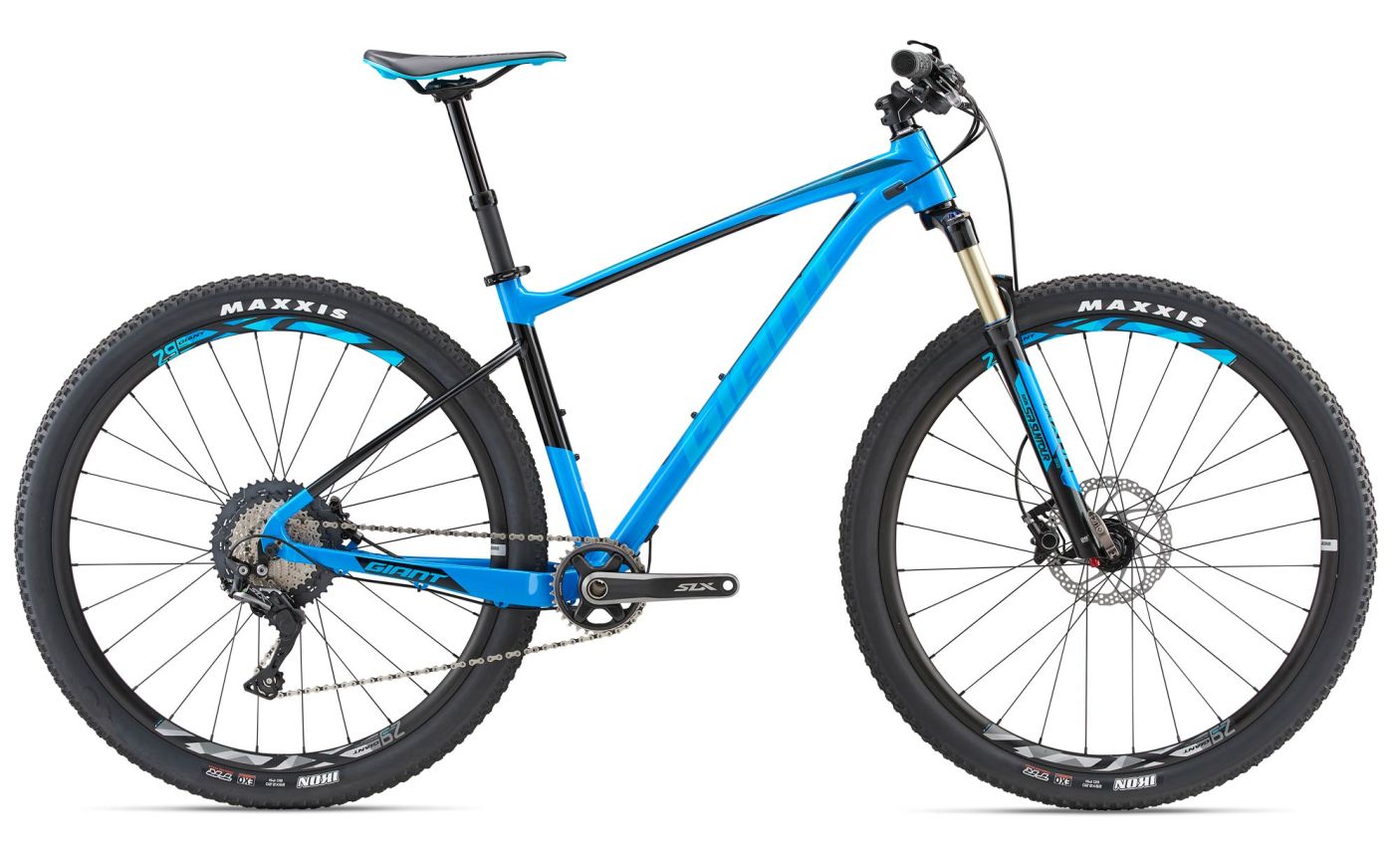

With smooth-rolling 29er wheels and a lightweight hardtail frame, Fathom 29 keeps you balanced and in control on all types of XC terrain. Built on an ALUXX SL-grade aluminum frame, it features relaxed geometry that, when paired with its large-diameter wheels, produces a stable ride quality that’s ideal for challenging XC trails. Efficiency on the climbs, and total control on the descents. You get both with Fathom 29. Tubeless ready.

  • ALUXX SL-grade aluminium frame
  • SR Suntour Axon LO-RC 100mm-travel fork with 15mm thru-axle
  • Shimano SLX 1x11-speed drivetrain
  • Shimano M365 hydraulic disc brakes
  • Giant XC-2 Disc wheelset with Maxxis Ikon tubeless tyres
  • Colour: Blue/Black

Techs & Features

ALUXX SL Aluminium Technology
OverDrive

Geometry

bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  SMLXL
ASeat Tube Length (mm) (inch)39015.444517.548018.953020.9
BSeat Tube Angle (degrees)73.5°73.5°73.5°73.5°
CTop Tube Length (mm) (inch)5852360523.862524.664525.4
DHead Tube Length (mm) (inch)953.71003.91154.51305.1
EHead Tube Angle (degrees)69.0°69.0°69.0°69.0°
FFork Rake (mm) (inch)421.7421.7421.7421.7
GTrail (mm) (inch)983.9983.9983.9983.9
HWheelbase (mm) (inch)110043.3112144.1114245116345.8
IChain Stay Length (mm) (inch)44217.444217.444217.444217.4
JBottom Bracket Drop (mm) (inch)552.2552.2552.2552.2
KStack (mm) (inch)60323.760823.962224.563625
LReach (mm) (inch)4061642516.744117.445718
MStand Over Height (mm) (inch)73028.775629.876530.179031.1
NHandlebar Width (mm) (inch)78030.778030.778030.778030.7
OStem Length (mm) (inch)602.4702.8803.1903.5
PCrank Length (mm) (inch)1706.71756.91756.91756.9
QWheel Size 29"29"29"29"
Specs
  • Sizes
    M, L, XL
  • Colours
    Gloss Blue / Gloss Black
  • Frame
    ALUXX SL-Grade Aluminum
  • Fork
    Suntour Axon LO-RC, 100mm Travel, Air Spring, Tapered Alloy Steerer, Low speed Compression and Rebound Adjust, 15x100 axle
  • Handlebar
    Giant Connect Trail, 780mm
  • Stem
    Giant Connect
  • Seatpost
    NEW Giant Contact Switch, Dropper post
  • Saddle
    Giant Contact (Neutral)
  • Pedals
    MTB Caged, 9/16"
  • Shifters
    Shimano SLX 11 speed
  • Rear Derailleur
    Shimano SLX, Shadow +
  • Brakes
    Shimano M365 [F] 180mm [R] 160mm, Hydraulic Disc
  • Brake Levers
    Shimano M365
  • Cassette
    Shimano SLX, 11x46
  • Chain
    KMC X11-1
  • Crankset
    Shimano SLX, 30t
  • Bottom Bracket
    Shimano MT500 PressFit
  • Rims
    Giant XC-2 Wheelset, 21mm Inner Width
  • Hubs
    [F] Giant Tracker 15x100, Sealed Bearing [R] Giant Tracker Sport QR, Loose Ball
  • Spokes
    Sapim Race
  • Tyres
    Maxxis IKON 29x2.2" Folding, 60 TPI, TR/EXO, Tubeless
  • Extras
    Tyre Sealant
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Every effort has been made to ensure accuracy throughout this website. However, Giant reserves the right to change bike specifications, features, prices and colours without prior notice.
