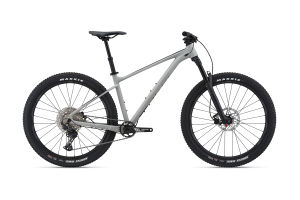

Fathom 2

2021

£1,399

Get your dose of singletrack on a fun hardtail that puts you in control. The combination of a lightweight hardtail frame, 130mm suspension fork and 27.5 wheels with wide rims and high-volume tyres delivers loads of traction, speed and fun on the trail.

Please note the Fathom 1 is available with either a Giant Crest Fork (£1549) or RockShox 35 fork (£1649) - please check before adding to your basket.

With its updated ALUXX SL aluminium frame, quick-handling 27.5 wheels and high-volume tyres, Fathom is a great choice for technical terrain and singletrack shredding. It blends the efficient ride quality of a classic hardtail with the confident ride quality of larger tyres that absorb bumps and give you more traction—so you can tackle rougher trails with total control. The frame is designed with trail-friendly geometry that includes a more relaxed head angle and a 130mm suspension fork.

Key Performance Factors

Trail Tuned Design

ALUXX SL aluminium frameset is hand-built in-house by the world leader in aluminium engineering.

Responsive Handling

Frame geometry is designed to optimise the confident, stable handling of plush high volume tyres (27.5x2.6), and is ideal for rugged, adventurous terrain.

Smooth Control

More relaxed frame geometry (compared to XC) and control-focused components deliver added control for trail riding conditions.

Techs & Features

ALUXX SL Aluminium Technology
OverDrive
Tubeless System

Geometry

bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  SMLXL
ASeat Tube Length (mm) (inch)3801543016.946518.349519.5
BSeat Tube Angle (degrees)75.0°75.0°75.0°75.0°
CTop Tube Length (mm) (inch)59223.361224.163925.266226.1
DHead Tube Length (mm) (inch)953.7953.71054.11154.5
EHead Tube Angle (degrees)66.0°66.0°66.0°66.0°
FFork Rake (mm) (inch)441.7441.7441.7441.7
GTrail (mm) (inch)1134.41134.41134.41134.4
HWheelbase (mm) (inch)115445.4117446.2120347.4122748.3
IChain Stay Length (mm) (inch)43517.143517.143517.143517.1
JBottom Bracket Drop (mm) (inch)602.4602.4602.4602.4
KStack (mm) (inch)62224.562224.563124.864025.2
LReach (mm) (inch)42516.744517.547018.549019.3
MStand Over Height (mm) (inch)7122872628.674629.477130.4
NHandlebar Width (mm) (inch)78030.778030.778030.778030.7
OStem Length (mm) (inch)401.6401.6502502
PCrank Length (mm) (inch)1656.51706.71706.71706.7
QWheel Size 27.5"27.5"27.5"27.5"
Specs
  • Sizes
    S, M, L, XL
  • Colours
    Matte Concrete
  • Frame
    ALUXX SL-Grade Aluminium
  • Fork
    Suntour Raidon 34 LOR DS air sprung, 130mm travel
  • Shock
    N/A
  • Handlebar
    Giant Contact TR, 780x35mm
  • Stem
    Giant Contact TR 35
  • Seatpost
    Giant Contact Switch dropper post with remote, 30.9
  • Saddle
    Giant Romero
  • Pedals
    PEDALS NOT SUPPLIED
  • Shifters
    Shimano Deore
  • Front Derailleur
    N/A
  • Rear Derailleur
    Shimano Deore
  • Brakes
    Tektro TKD143
  • Brake Levers
    Tektro TKD143
  • Cassette
    Shimano Deore
  • Chain
    Shimano
  • Crankset
    Praxis Cadet Boost, 30t
  • Bottom Bracket
    Praxis, press fit
  • Rims
    Giant AM 27.5, tubeless ready sleeve-joint rim, 30mm inner width
  • Hubs
    Shimano
  • Spokes
    Sapim
  • Tyres
    Maxxis Ardent Race 27.5x2.6, folding, TR
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Every effort has been made to ensure accuracy throughout this website. However, Giant reserves the right to change bike specifications, features, prices and colours without prior notice.
