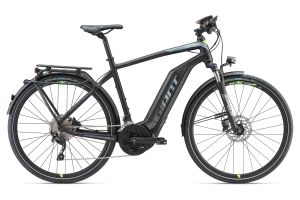

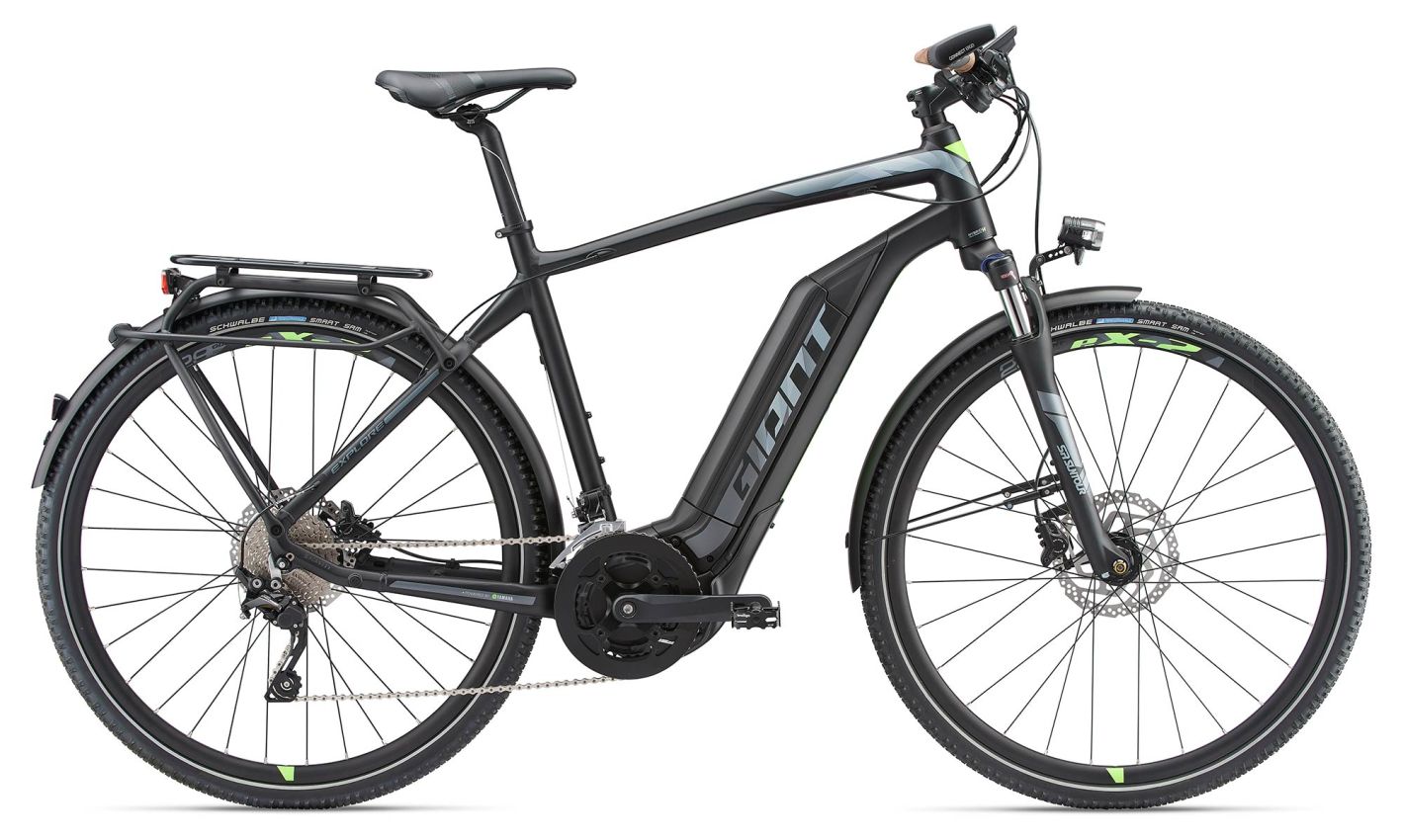

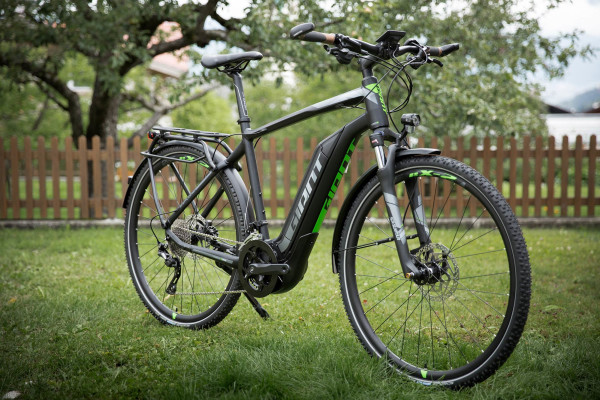

Explore E+ 1 Electric Bike

2018

CITY STYLE OR BUMPY BACKROADS, THIS VERSATILE OFF-ROAD ELECTRIC BIKE HELPS YOU ENJOY THE JOURNEY.

The Explore E+ combines urban riding style with versatile performance that can handle rougher roads. The ALUXX aluminum frameset and a SyncDrive Sport motor that’s powered by Yamaha combine for great handling and smooth acceleration on a variety of road conditions. Designed for adaptability, Explore E+ gives riders the freedom to go wherever they want to go.

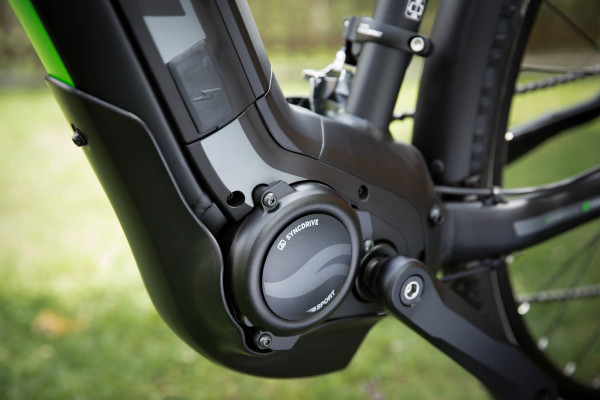

  • Giant SyncDrive Sport, powerful 80Nm central motor
  • Giant EnergyPak 500 lithium-ion battery
  • Shimano Deore 2x10-speed drivetrain

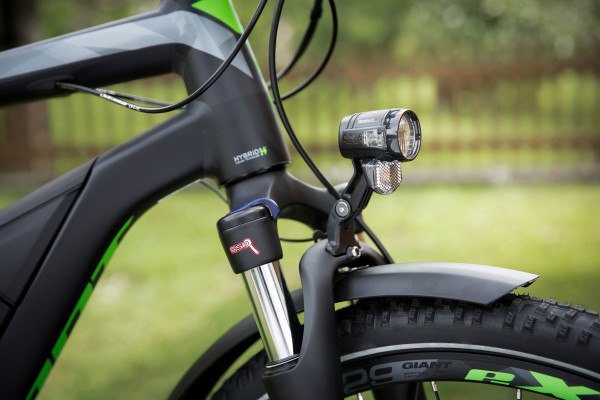

  • SR Suntour NEX E25 suspension fork
  • Shimano hydraulic disc brakes
  • Colour: Black / Green

Techs & Features

ALUXX Aluminium Technology
E+ System
RideControl Charge
SyncDrive Sport
EnergyPak Plus

Geometry

bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
 SMLXL
A Seat Tube Length (mm) (inch)43517.148519.153521.158523
B Seat Tube Angle (degrees)74.0°73.0°73.0°73.0°
C Top Tube Length (mm) (inch)57022.459023.26102463024.8
D Head Tube Length (mm) (inch)1305.11405.51556.11706.7
E Head Tube Angle (degrees)69.5°69.5°69.5°69.5°
F Fork Rake (mm) (inch)421.7421.7421.7421.7
G Trail (mm) (inch)913.6913.6913.6913.6
H Wheelbase (mm) (inch)111243.8112144.1114245116345.8
I Chain Stay Length (mm) (inch)47018.547018.547018.547018.5
J Bottom Bracket Drop (mm) (inch)602.4602.4602.4602.4
K Stack (mm) (inch)6102461924.463324.964825.5
L Reach (mm) (inch)39515.640015.741616.443217
M Stand Over Height (mm) (inch)74529.377530.580831.884433.2
N Handlebar Width (mm) (inch)69027.269027.269027.269027.2
O Stem Length (mm) (inch)602.4702.8803.1903.5
P Crank Length (mm) (inch)1706.71706.71706.71706.7
Q Wheel Size 700c700c700c700c
Specs
  • Motor
    Giant SyncDrive Sport 80Nm
  • Sensors
    Giant PedalPlus 4-sensor technology
  • Display

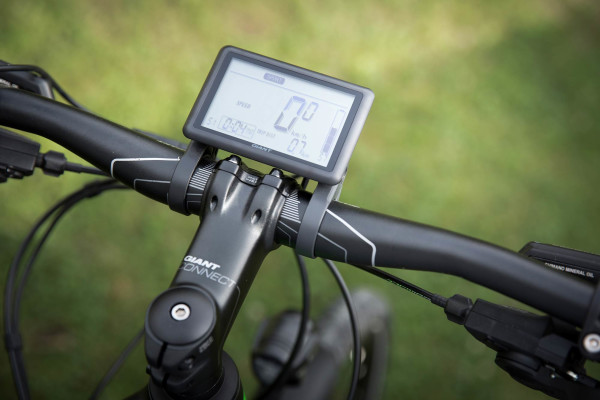

    Giant RideControl Charge, grip launch control with walk assist, mini USB charger
  • Battery
    Giant EnergyPak 500, 36V 11.3Ah Rechargeable Lithium-Ion
  • Sizes
    M, L
  • Colours
    Matt Black / Matt Grey / Matt Neon Green
  • Frame

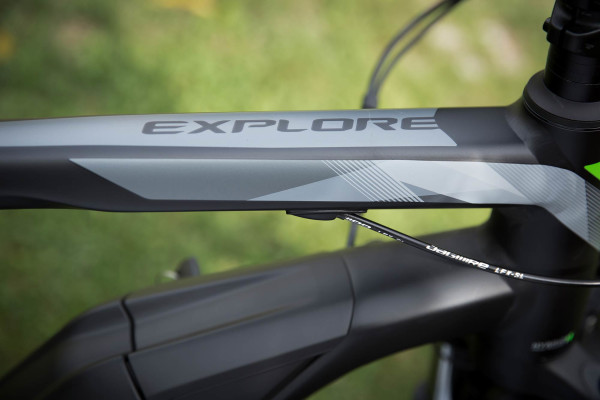

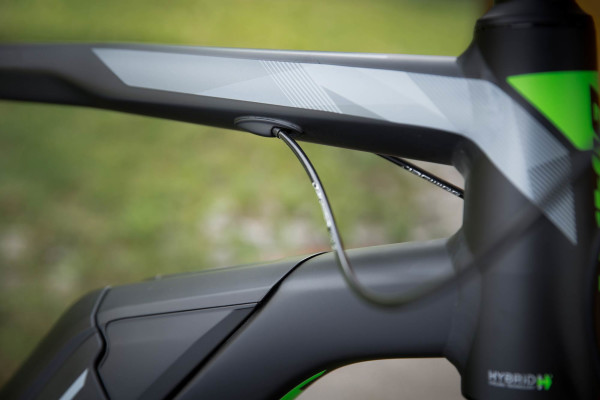

    ALUXX SL-Grade Aluminum
  • Fork
    SR Suntour NEX E25 HLO 63mm travel, Tapered 1½ - 1⅛" steerer
  • Handlebar
    Giant Connect Trail 690x31,8mm
  • Stem
    Giant Connect
  • Seatpost
    Giant Connect
  • Saddle
    Giant Contact Comfort upright
  • Pedals
    Aluminum Platform
  • Shifters
    Shimano Deore 2x10sp
  • Front Derailleur
    Shimano Deore Trekking
  • Rear Derailleur

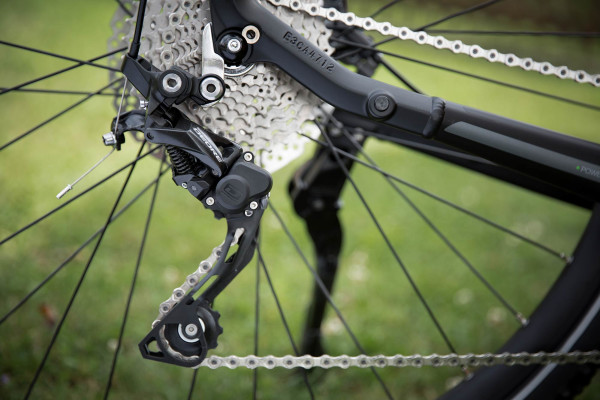

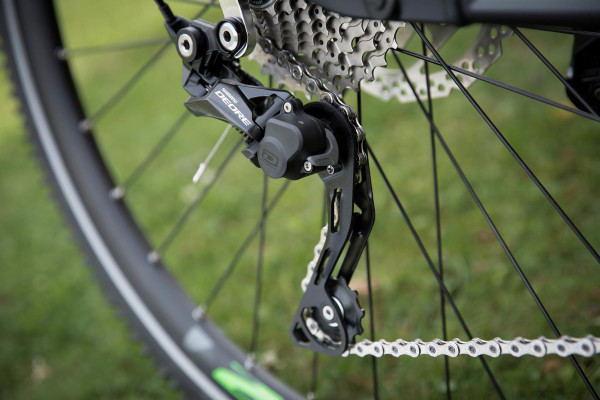

    Shimano Deore Shadow+, 10sp
  • Brakes
    Shimano BR-MT500 180 Disc
  • Brake Levers
    Shimano BL-MT500 i-spec II
  • Cassette
    Shimano HG50-10 11-36T
  • Chain
    KMC X.10e, e-bike optimized
  • Crankset
    FSA forged crankset, 36/44T
  • Rims
    Giant eX 2, Tubeless Ready, 700c aluminium, e-bike optimized
  • Hubs
    Giant eTracker, sealed cartridge bearings [F] 15mm Thru-Axle [R] 135mm QR, e-bike optimized
  • Spokes
    Giant eTracker, sealed cartridge bearings [F] 15mm Thru-Axle [R] 135mm QR, e-bike optimized
  • Tyres
    Schwalbe Smart Sam, 622x44
  • Extras
    Giant EnergyPak 3A charger, Giant KS18 Kickstand
  • Lighting
    Axa BlueLine 30Lux Steady E6 frontAxa BlueLine Steady E6 rear
  • Carrier

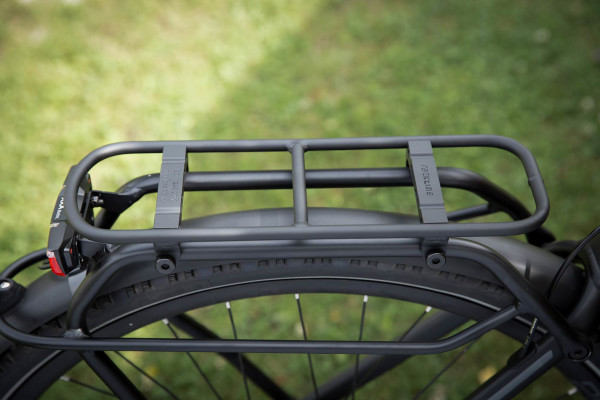

    Racktime snap-it interface
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Every effort has been made to ensure accuracy throughout this website. However, Giant reserves the right to change bike specifications, features, prices and colours without prior notice.
