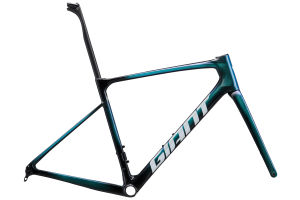

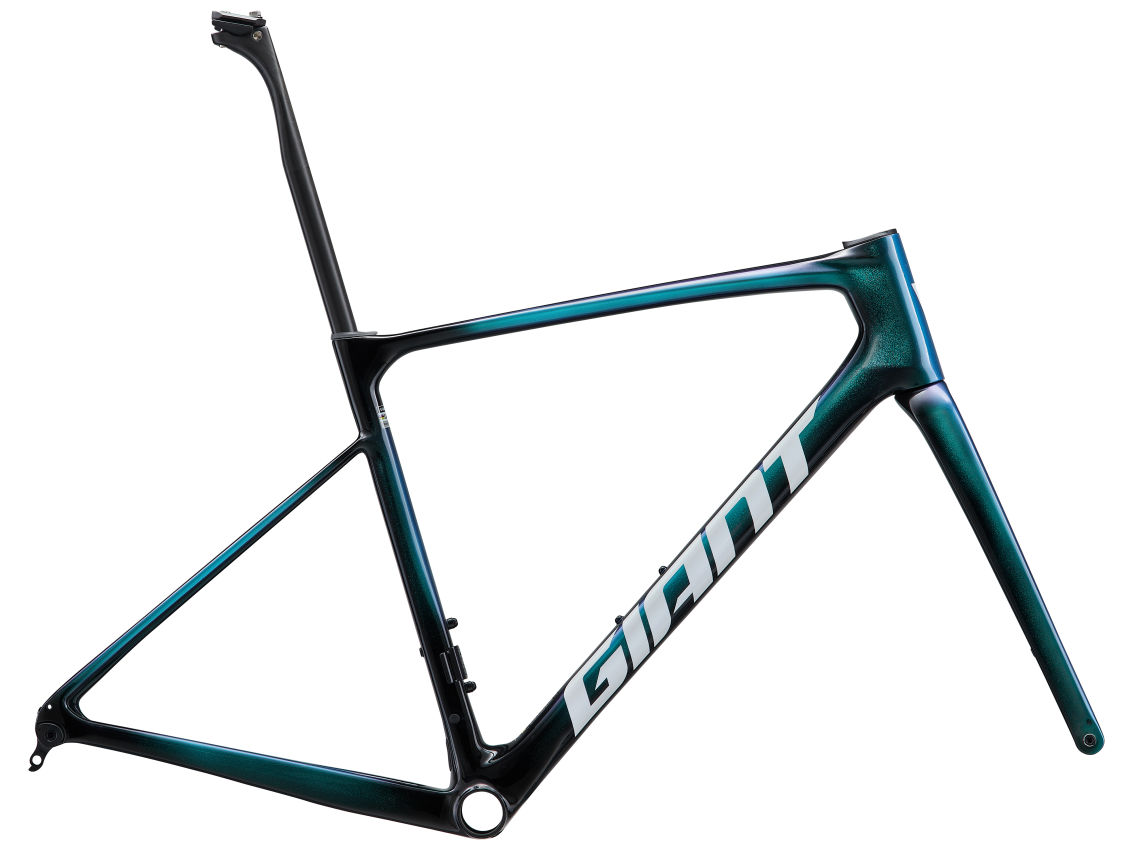

Defy Advanced Pro Frameset

£1,999

Techs & Features

Advanced Composite Technology
Compact Road Design
D-Fuse Technology
OverDrive Aero

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  • S
      166 cm5’5”  to 174 cm5’9”
  • M
      172 cm5’8”  to 180 cm5’11”
  • ML
      178 cm5’10”  to 186 cm6’1”
  • L
      184 cm6’0”  to 192 cm6’4”
  • XL
      190 cm6’3”  to 198 cm6’6”
bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
 SMMLLXL
A Seat Tube Length (mm) (inch)44517.548018.951520.353521.156522.2
B Seat Tube Angle (degrees)74.0°73.5°73.0°73.0°73.0°
C Top Tube Length (mm) (inch)53020.954521.55602257522.659523.4
D Head Tube Length (mm) (inch)1355.31505.91756.91957.72158.5
E Head Tube Angle (degrees)71.8°72.5°72.5°72.5°72.5°
F Fork Rake (mm) (inch)502502502502502
G Trail (mm) (inch)63.42.558.62.358.62.358.62.358.62.3
H Wheelbase (mm) (inch)99439.199839.3101039.8102540.4104040.9
I Chain Stay Length (mm) (inch)42016.542016.542016.542016.542016.5
J Bottom Bracket Drop (mm) (inch)753753702.8702.8702.8
K Stack (mm) (inch)54121.35582257722.759623.561524.2
L Reach (mm) (inch)37514.83801538415.139315.540215.8
M Stand Over Height (mm) (inch)73328.97623079631.38143284133.1
N Handlebar Width (mm) (inch)40415.942416.742416.744417.544417.5
O Stem Length (mm) (inch)903.51003.91003.91104.31104.3
P Crank Length (mm) (inch)1656.51706.71706.7172.56.8172.56.8
Specs
  • Sizes
    S, M, M/L, L, XL
  • Colours
    Dark Chameleon
  • Frame
    Advanced-grade Composite, 12x142mm thru-axle, disc
  • Fork
    Advanced SL-grade Composite, full-composite OverDrive Aero steerer, 12x100mm thru-axle, disc
  • Shock
    N/A
  • Handlebar
    N/A
  • Grips
    N/A
  • Stem
    N/A
  • Seatpost
    Giant D-Fuse SLR, composite, -5/+15mm offset
  • Saddle
    N/A
  • Pedals
    N/A
  • Shifters
    N/A
  • Front Derailleur
    N/A
  • Rear Derailleur
    N/A
  • Brakes
    N/A
  • Brake Levers
    N/A
  • Cassette
    N/A
  • Chain
    N/A
  • Crankset
    N/A
  • Bottom Bracket
    N/A
  • Rims
    N/A
  • Hubs
    N/A
  • Spokes
    N/A
  • Tyres
    N/A
  • Extras
    computer mount, fender mount, water bottle cages, 40mm max tire size
  • Max Tyre Clearance
    40mm
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
