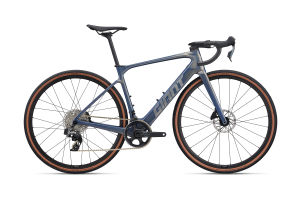

Defy Advanced E+ Elite AR

£5,499

With its smooth-riding composite frame, lightweight battery, new SyncDrive Move Plus integrated rear hub motor and all-road ready 38mm tires, the Defy Advanced E+ AR is the ideal choice for performance-minded road riders who want to tackle steep hills, maintain higher speeds, and experience road riding with no limitations.

Key Performance Factors

SEAMLESS POWER

The SyncDrive Move Plus motor is integrated into the rear hub and delivers 30Nm of power (equivalent to 75Nm with a mid-drive motor) directly to the rear wheel. Weighing just 1.7kg, it’s specially tuned for the pedaling pattern of performance road riding, with minimal energy loss and more torque at higher speeds. The result is a natural feel when accelerating or maintaining steady power at speed, and no motor drag while freewheeling or coasting.

SYSTEM INTEGRATION

The down tube integrated EnergyPak 400 battery system weighs just 2.3kg and is purpose-built for the specific needs of E-bikes. A top tube mounted RideControl Go button makes it quick and easy to turn the E-bike on or off and change power modes. Smart Assist technology uses three sensors to precisely measure the power being applied to the pedals and produce just the right amount of support for a smooth, natural ride experience. All models feature SRAM wireless electronic shifters and an integrated taillight.

PURE ROAD PERFORMANCE

A lightweight composite frameset and high-performance components including a D-Fuse seatpost and handlebars for compliance, integrated WheelSystems with all-road ready 35mm tubeless tires, and a wireless electronic drivetrain all add up to a smooth, efficient ride quality that mirrors the award-winning performance of the Defy endurance road bike range.

Range

How far can I expect to ride on a single battery charge?

The range for a single battery charge can vary greatly depending on conditions such as the combined weight of the rider and cargo; wind resistance; tyre pressure and tread profile; terrain and elevation changes; road or trail surface; outdoor temperature; maintenance of the E-Bike; and the condition of the battery.

The bar below gives an approximate range. Conditions are categorized as extreme, good and ideal. Extreme conditions typically occur when riding with a heavy load, strong headwinds or excessive climbs.

EnergyPak 400 / SyncDriveMove Plus

  • Range
  • Extreme: 40 km 24 miles
  • Good: 70 km 43 miles
  • Ideal: 100 km 62 miles

Techs & Features

Advanced Composite Technology
D-Fuse Technology
E+ System
Energypak
RideControl App
Smart Assist
SyncDrive Move Plus

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  • S
      166 cm5’5”  to 174 cm5’9”
  • M
      172 cm5’8”  to 180 cm5’11”
  • ML
      178 cm5’10”  to 186 cm6’1”
  • L
      184 cm6’0”  to 192 cm6’4”
bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
 SMMLL
A Seat Tube Length (mm) (inch)44517.548018.951520.353521.1
B Seat Tube Angle (degrees)74.0°73.5°73.0°73.0°
C Top Tube Length (mm) (inch)53020.954521.55602257522.6
D Head Tube Length (mm) (inch)1305.11455.71676.61877.4
E Head Tube Angle (degrees)71.5°72.5°72.5°72.5°
F Fork Rake (mm) (inch)502502502502
H Wheelbase (mm) (inch)99439.199539.2100839.7102340.3
I Chain Stay Length (mm) (inch)42016.542016.542016.542016.5
J Bottom Bracket Drop (mm) (inch)803.1803.1753753
K Stack (mm) (inch)54221.35602257622.759523.4
L Reach (mm) (inch)37414.737914.938415.139315.5
M Stand Over Height (mm) (inch)71628.274629.477930.779931.5
N Handlebar Width (mm) (inch)40015.742016.542016.544017.3
O Stem Length (mm) (inch)903.51003.91104.31104.3
Q Wheel Size 700C700C700C700C
Specs
  • Motor
    SyncDriveMove Plus Hub drive 75Nm max
  • Controller
    Mode support switch from SRAM Blips
  • Display
    Giant RideControl GO, frame-integrated LED console Optional wireless ANT+ display
  • Battery
    Giant EnergyPak 400Wh, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production, Giant EnergyPak Plus 200 range extender compatible
  • Charger
    Giant EnergyPak smart charger 4A
  • Connectivity
    Giant RideControl App enabled, ANT+ wireless display signal with e-bike profile
  • Sizes
    S, M, ML, L, XL
  • Colours
    Mercury
  • Frame
    Advanced-grade composite,12x145 thru-axle
  • Fork
    Advanced SL-Grade Composite, Full-Composite OverDrive Aero Steerer, 12x100mm thru-axle, Disc
  • Shock
    -
  • Handlebar
    Giant Contact SL D-Fuse 31.8 alloy
  • Stem
    Contact SL Aerolight 31.8 alloy
  • Seatpost
    Giant D-Fuse, Composite, 14mm offset
  • Saddle
    Giant Approach
  • Pedals
    PEDALS NOT SUPPLIED
  • Shifters
    Sram Rival AXS
  • Front Derailleur
    n/a
  • Rear Derailleur
    Sram Rival XPLR AXS
  • Brakes
    Sram Rival AXS HRD, Paceline 160mm 6-bols [F/R]
  • Brake Levers
    Sram Rival AXS HRD
  • Cassette
    Sram XPLR XG-1251 10x44T 12-speed
  • Chain
    Sram Rival 12-speed
  • Crankset
    Sram X-SYNC 46T BCD107 chain ring, Praxis E crank Alloy ISIS
  • Bottom Bracket
    Giant E+ System BBSS
  • Rims
    Giant P-R2 Alloy Disc Wheel System, Tubeless Ready, 22mm inner width, 12mm thru-axle
  • Spokes
    Sapim spoke E-Light [R] Race [F], e-bike optimized
  • Tyres
    Schwalbe G-one Allround Performance, RaceGuard, Brown side-wall, tubeless, 700x35
  • Extras
    Fender adapter
  • Lighting
    Seatpost clamp integrated tail light
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Every effort has been made to ensure accuracy throughout this website. However, Giant reserves the right to change bike specifications, features, prices and colours without prior notice.
