Anthem Advanced 29 Frameset

£2,099 Original price £2,999

Highlights

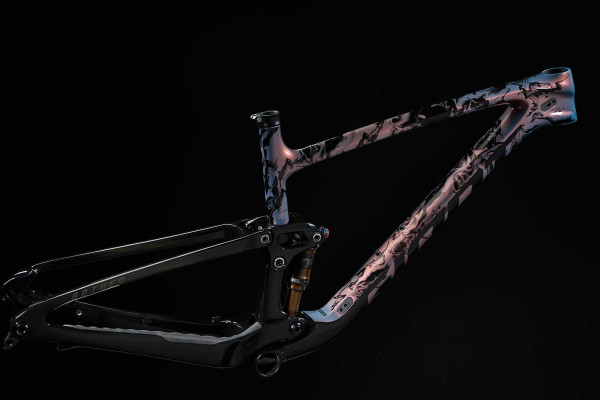

Engineered with a full composite frame, this 29er has 100mm of rear suspension travel. The linkage-driven, single-pivot FlexPoint Pro rear suspension makes room for shorter chainstays to improve climbing capabilities and overall agility. Other updates include new 29er-specific XC race geometry with a longer reach and a slacker headtube angle plus a new design for internal cable routing.

Anthem Advanced 29 Frame with interactive tooltips

Techs & Features

Advanced Composite Technology
Advanced Forged Composite Technology
FlexPoint Pro Suspension Technology

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  • S
      163 cm5’4”  to 172 cm5’8”
  • M
      171 cm5’7”  to 180 cm5’11”
  • L
      179 cm5’10”  to 188 cm6’2”
  • XL
      187 cm6’2”  to 198 cm6’6”
bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
 SMLXL
A Seat Tube Length (mm) (inch)39015.442016.546518.349519.5
A1 Seat Post Insertion Depth (mm) (inch)1857.32258.926010.229011.4
B Seat Tube Angle (degrees)75.5°75.5°75.5°75.5°
C Top Tube Length (mm) (inch)57222.560423.862624.665325.7
D Head Tube Length (mm) (inch)903.5953.71054.11154.5
E Head Tube Angle (degrees)67.5°67.5°67.5°67.5°
F Fork Rake (mm) (inch)441.7441.7441.7441.7
G Trail (mm) (inch)1094.31094.31094.31094.3
H Wheelbase (mm) (inch)112744.4115945.6118346.6121247.7
I Chain Stay Length (mm) (inch)43517.143517.143517.143517.1
J Bottom Bracket Drop (mm) (inch)421.7421.7421.7421.7
K Stack (mm) (inch)58923.259323.360323.761224.1
L Reach (mm) (inch)42016.545017.747018.549519.5
M Stand Over Height (mm) (inch)74529.375029.577730.680031.5
N Handlebar Width (mm) (inch)76029.976029.976029.976029.9
O Stem Length (mm) (inch)602.4702.8702.8702.8
P Crank Length (mm) (inch)1706.71756.91756.91756.9
Q Wheel Size 29" 29"29"29"
Specs
  • Sizes
    S, M, L, XL
  • Colours
    Gloss Fluid Iridescence/Iris
  • Frame
    Advanced-grade composite front and rear triangles, 100mm FlexPoint Pro suspension, 12x148mm thru-axle, UDH
  • Fork
    Suitable for a 110mm fork.
  • Shock
    Fox Float SL Performance Elite, three-position remote, 165/45
  • Extras
    Giant/MRP CS chain guide
  • Max Tyre Clearance
    2.4"
  • Max Chainring Size
    34t
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Every effort has been made to ensure accuracy throughout this website. However, Giant reserves the right to change bike specifications, features, prices and colours without prior notice.
