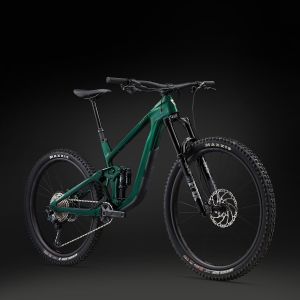

Trance X Advanced SX
Master The Mountain
Rock rolls, sketchy drops and step-ups. This new full-composite trail machine handles it all with confidence and control. New longer travel Maestro rear suspension (145mm), adjustable geometry, and a mixed wheel setup make it a singletrack sensation.
Facteurs Clés de Performance
Updated suspension
This “SX” series features an all-new Maestro rear suspension system with added travel (145mm) for technical singletrack. The trunnion mount shock and Advanced Forged Composite rocker arm combine for a longer stroke that has a smooth, active feel, plus greater stiffness in the chassis for improved tracking over rough terrain. The rear suspension is paired with a longer travel 160mm suspension fork, giving aggressive trail riders added confidence and control.
Adjustable trail geometry
A three-position Maestro flip chip lets you dial in frame geometry to suit your riding style and terrain. The high setting adds more ground clearance, a good option for tight, technical singletrack. The low setting creates a slacker head angle and lower bottom bracket for confident handling at higher speeds. The middle position is neutral. In addition, a new headset flip chip provides 10mm of total reach adjustment.
Mixed wheel setup
This model comes with a 27.5-inch rear wheel. The smaller wheel diameter delivers an agile, snappy feel on the trail and more saddle-to-tire clearance in the rear. Riders typically favor this “mullet” setup for riding steep, technical terrain.
Points importants
An all-new frameset is engineered with an Advanced-grade composite mainframe and swingarm. The “SX” indicates its descending focus, with additional travel including updated 145mm Maestro suspension in the rear and a beefier 160mm fork up front. The frame is equipped with two, three-position flip chips for the ultimate in versatility and adjustability. The rear flip chip, located on the Maestro rocker arm, allows riders to adjust frame geometry and fine-tune handling for riding style and terrain. A second flip chip at the headset provides 10mm (-5mm, 0mm, +5mm) of reach adjustment. Also new is an integrated down tube storage compartment for carrying trail-riding essentials.
1
Advanced Composite
High-performance grade raw carbon is used to produce this custom frame material in our own composite factory. The mainframe and rear swingarm are handcrafted with monocoque construction for optimized stiffness-to-weight and an ultra-responsive ride quality.
2

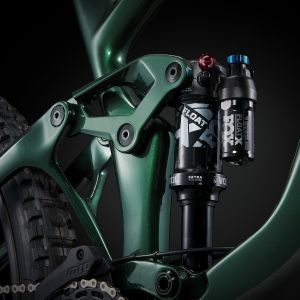

Maestro Suspension
Four strategically positioned pivot points and two linkages all work together to create a single floating pivot for the most active, efficient and independent suspension system.
3
Advanced Forged Composite
A high-pressure molding process is used to produce a complex shaped carbon-fiber upper rocker arm that is lighter, stiffer and stronger than an aluminum version.
4

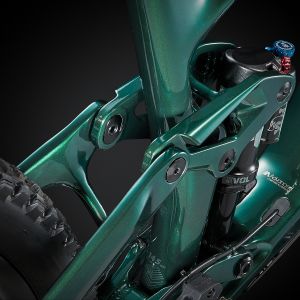

Adjustable Frame Geometry
Flip chip adjustability lets you switch between three settings depending on the terrain you are riding. You can select a 63.2, 63.5 or 63.9-degree head angle and corresponding 75.6, 75.9 or 76.3-degree seat tube angle, resulting in a 30, 26 or 21mm bottom bracket drop (size medium).
5

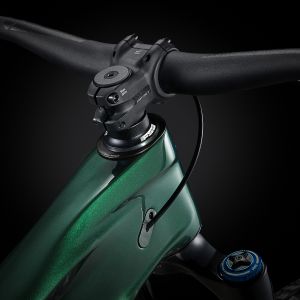

Reach Adjust
Three-position flip chip at the headset lets riders dial in cockpit dimensions and geometry. This modular system helps fine tune the bike’s handling and rider position using two positioning chips that can be removed and swapped to achieve a Short (-5mm), Mid (0mm) or Long (+5mm) reach.
6
Mixed Wheel Setup
A 29-inch front wheel provides speed, stability and front-end control on rough, technical trails. A 27.5-inch rear wheel adds agility and maneuverability to help riders rail corners, pop over features and show off their style.
7

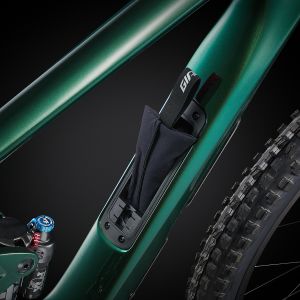

Frame Storage
New integrated frame storage inside the down tube makes it easy to carry tools, snacks and other essentials. Mounts below the top tube offer an additional option for storage.
8
MegaDrive
A massive down tube and oversized top tube work in unison to provide superior front end lateral and torsional stiffness. The precisely engineered, rectangular shaped down tube yields unprecedented steering precision and pedaling performance.
9

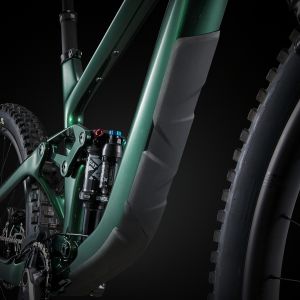

Integrated Frame Protection
The driveside chainstay and down tube feature built-in protection against rocks and debris. A clear 3M protective strip on the underside of the head tube/down tube junction protects the frame when it’s loaded onto a shuttle vehicle.
10
Boost Technology
Wider hub spacing (110mm front/148mm rear) results in stiffer wheels for added control plus more tire clearance and an improved chainline for optimal drivetrain performance.
11
Giant Tubeless System
Integrated Tubeless WheelSystem and tires deliver improved efficiency, comfort and control in the most user-friendly and reliable system.
