Kit Cadre avec Amortisseur Reign Advanced Pro 29
à votre panier.
En raison de transferts logistiques à l'entrepôt, nos délais de livraisons peuvent se trouver impactés. Comptez 15 jours pour recevoir votre vélo. Afin d'être sûr de commander la bonne taille, n'hésitez pas à confirmer celle-ci avec votre Giant Store.

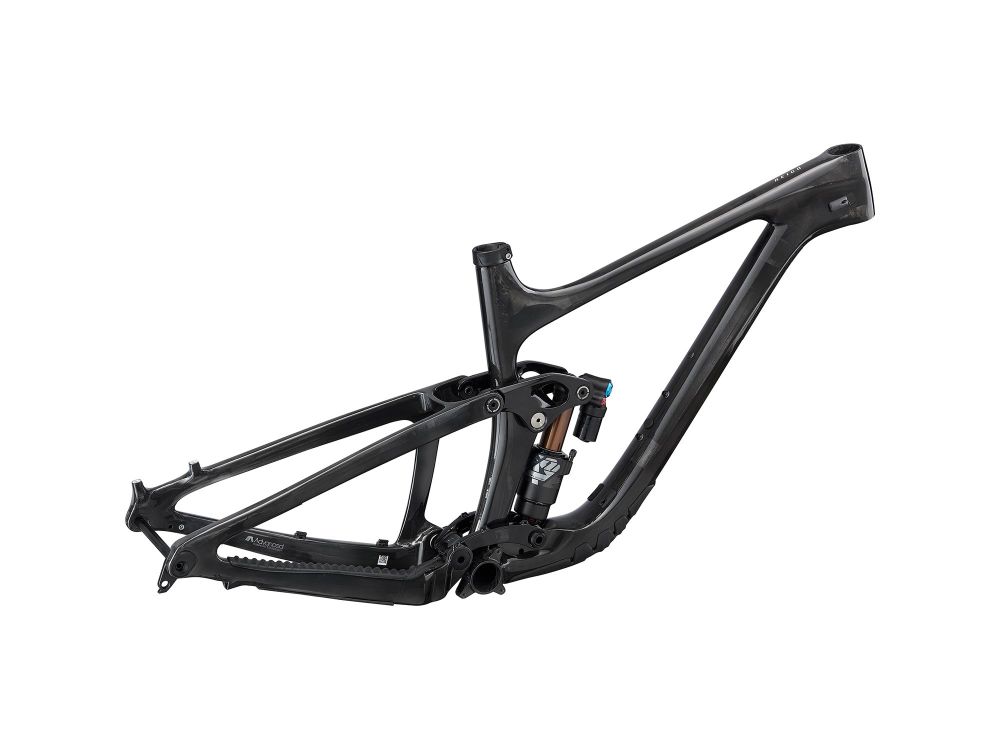

Developed with the Giant Factory Team riders who push the limits of their bodies and bikes week in and week out, this bike is made to boost confidence and shave seconds on the most punishing enduro terrain. We engineered the geometry of the Advanced composite frame and swingarm around larger diameter 29-inch wheels. That means shorter chainstays, a longer toptube, and just the right angles with the headtube (64.56 degrees) and seattube (76.36 degrees). We gave it an updated Maestro rear suspension system with 146mm of travel. The trunnion mount shock and Advanced Forged Composite rocker arm deliver an active, super plush feel on the trail. Other features including a cleanly routed dropper seatpost and a new Giant WheelSystem with Boost hub spacing and tubeless tires complete this race-ready package.
Four strategically positioned pivot points and two linkages all work together to create a single floating pivot for the most active, efficient and independent suspension system on the trail.
High-performance grade raw carbon fiber and custom resin are used to produce this custom frame in Giant’s own composite factory. Handcrafted monocoque construction makes it extremely lightweight, stiff and compliant.
A state-of-the-art high-pressure molding process is used to produce complex-shaped carbon fiber components that are lighter, stiffer and stronger than similar components made from aluminum. This technology is used in critical performance parts such as Maestro Suspension rocker links.
Updated “long and low” enduro-frame geometry with 65/76.8-degree headtube/seattube angles for aggressive handling is tailored for 29-inch wheels to optimize roll-over capabilities and high-speed momentum.
Wider hub spacing (148mm rear) results in stiffer wheels for added control plus more tire clearance and an improved chainline for optimal drivetrain performance.
New shock mount produces a lower leverage ratio for increased pedaling and braking efficiency, plus a lower center of gravity and shorter chainstays for improved handling, climbing and agility.
A massive rectangular downtube and oversized toptube work in unison to provide superior front end lateral and torsional steering precision. The precisely engineered, rectangular shaped downtube yields unprecedented steering and pedaling stiffness.
Giant’s original oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
Ce guide est fait à titre indicatif, merci de bien contrôler avec votre revendeur pour confirmer ces informations.
172 cm5’8” 180 cm5’11” 188 cm6’2” 198 cm6’6”
| S | M | L | XL | ||
|---|---|---|---|---|---|
| A | Longueur de tube de selle (mm) (inch) | 43117 | 43117 | 46418,3 | 49619,5 |
| B | Angle de tube de selle (degrees) | 76,4° | 76,4° | 76,4° | 76,4° |
| C | Longueur du tube supérieur (mm) (inch) | 57422,6 | 60123,7 | 64025,2 | 66626,2 |
| D | Longueur du tube de direction (mm) (inch) | 1003,9 | 1003,9 | 1104,3 | 1204,7 |
| E | Angle du tube de direction (degrees) | 64,6° | 64,6° | 64,6° | 64,6° |
| F | Déport de fourche (mm) (inch) | 441,7 | 441,7 | 441,7 | 441,7 |
| G | Trail (mm) (inch) | 132,75,2 | 132,75,2 | 132,75,2 | 132,75,2 |
| H | Empattement (mm) (inch) | 119146,9 | 122048 | 126249,7 | 128950,7 |
| I | Longueur des bases (mm) (inch) | 43917,3 | 43917,3 | 43917,3 | 43917,3 |
| J | Drop du boitier de pédalier (mm) (inch) | 271,1 | 271,1 | 271,1 | 271,1 |
| K | Stack (mm) (inch) | 62224,5 | 62224,5 | 63124,8 | 64025,2 |
| L | Reach (mm) (inch) | 42316,7 | 45117,8 | 48819,2 | 51120,1 |
| M | Hauteur en statique (mm) (inch) | 75729,8 | 75929,9 | 78130,7 | 80431,7 |
| N | Largeur de cintre (mm) (inch) | 80031,5 | 80031,5 | 80031,5 | 80031,5 |
| O | Longueur de potence (mm) (inch) | 401,6 | 401,6 | 401,6 | 502 |
| P | Longueur des manivelles (mm) (inch) | 1656,5 | 1706,7 | 1706,7 | 1706,7 |
| Q | Diamètre des roues | 29" | 29" | 29" | 29" |
Produits conformes aux exigences de sécurité (décret n° 2016-364 du 29 mars 2016). GIANT France se réserve le droit de modifier les spécifications sans préavis.
