This state-of-the-art aluminum material is made predominantly from 6011 alloy and delivers best-in-class strength-to-weight ratios. The frameset features unique welding technologies for a high-performance ride quality.

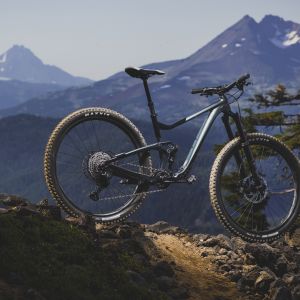

Trance X 29
Master the Mountain
Chunky rock gardens, gnarly roots and steep, technical climbs. The all-new Trance X 29 is for those who consider the hardest section of trail their favorite part of the ride. With longer suspension travel and adjustable geometry, this aluminum trail slayer delivers hard-charging singletrack fun.
Engineered to help you ride faster and smoother on the toughest trails, this all-new 29er has a lightweight, strong and stiff aluminum chassis with 29er-specific geometry and a plush ride thanks to its advanced new suspension setup. Longer travel Maestro suspension delivers 135mm of active rear travel that pairs perfectly with a 150mm fork. The Advanced Forged Composite rocker arm has a flip chip that allows you to adjust frame geometry and tailor the bike’s handling to your riding style and terrain. Choose steeper or slacker headtube/seattube angles and either a 30mm or 40mm bottom bracket drop to adjust the handling for your riding style and terrain. It’s all built around 29-inch wheels and lots of clearance (up to 2.5-inch tires) for maximum control on rugged trails.
facteurs clés de performance
29er confidence and control
29-inch wheels roll over rough terrain with balance and stability, giving you more momentum for technical climbs and the confidence to fly on fast, rugged singletrack descents. Added clearance for up to 2.5-inch tires.
Progressive suspension
New Maestro rear suspension features a trunnion mount shock with a longer stroke and smoother feel. With 135mm of full rear-wheel travel (and 150mm up front), it features a two-position adjustable Advanced Forged Composite flip-chip equipped upper rocker arm for increased stiffness and strength plus lower overall frame weight.
Adjustable frame geometry
Lightweight ALUXX-SL frameset features adjustable geometry that offers 66.2 or 65.5-degree headtube and 77.9 or 77.2-degree seattube angles, resulting in 30mm or 40mm bottom bracket drop options for aggressive trail configurations.
Points importants

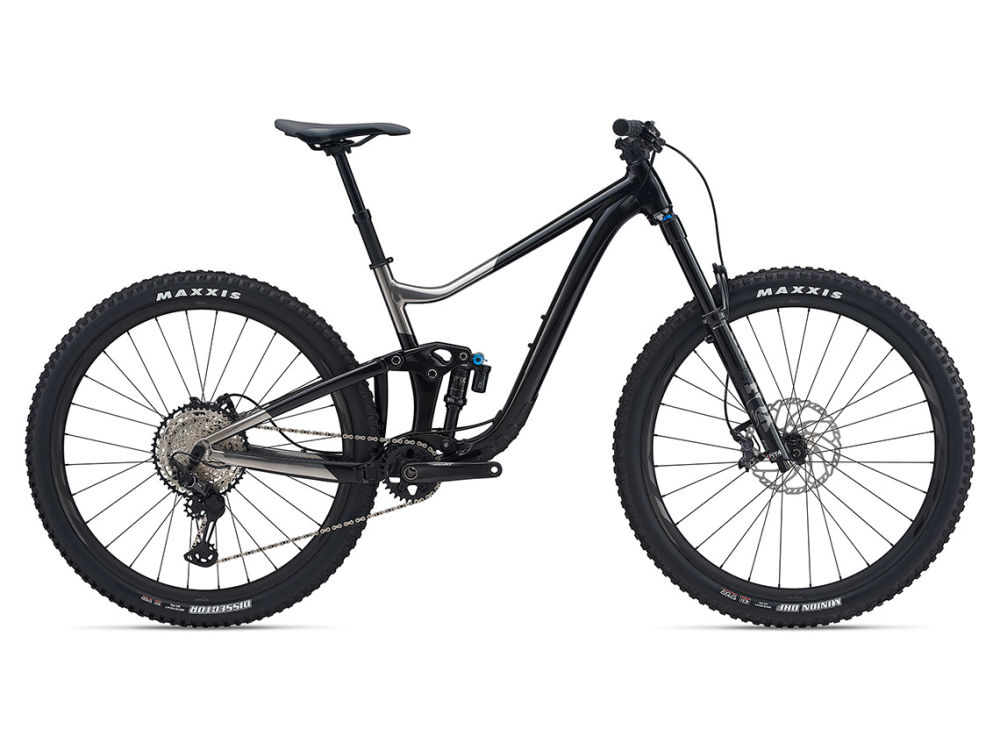

Engineered to help you ride faster and smoother on the toughest trails, this all-new 29er trail bike gives you smooth suspension performance to gobble up technical terrain. The ALUXX SL aluminum frame is lightweight, stiff and super strong, and adjustable frame geometry lets you dial in its handling for total confidence and control. Here’s a look at the key technologies in the new Trance X 29.
1
Aluxx SL Aluminum
2
Maestro Suspension Technology
Four strategically positioned pivot points and two linkages all work together to create a single floating pivot for the most active, efficient and independent suspension system.
3
Advanced Forged Composite
A state-of-the-art, high-pressure molding process is used to produce a complex shaped carbon-fiber upper rocker arm that is lighter, stiffer and stronger than an aluminum version.
4
Trunnion Mount
Integrated shock mount produces a lower leverage ratio for increased pedaling and braking efficiency, plus a lower center of gravity and shorter chainstays for improved handling, climbing and agility.
5
Adjustable Frame Geometry
Flip chip lets you change the headtube and seattube angles, along with the bottom bracket height, to fine-tune the handling. You can choose the low position (65.5/77.2 head/seattube angle and 40mm BB drop) for faster, open terrain or high (66.2/77.9 head/seattube angle and 30mm BB drop) for slower, tighter singletrack.
6
OverDrive
Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/2” lower and 1 1/8” upper) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
7

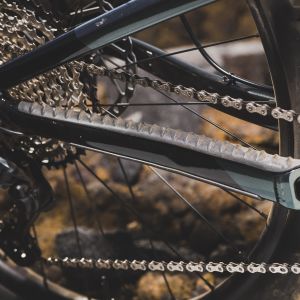

Frame Protection
Updated chainstay and downtube protection help keep rock strikes and chain slap damage at bay.
8
PowerCore
A massively oversized bottom-bracket/chainstay area features a fully integrated, 92mm wide bottom-bracket design. Asymmetric chainstays provide additional stiffness on the driveside and stability on the non-driveside.
9
Boost Technology
Wider hub spacing (110mm front/148mm rear) results in stiffer wheels for added control. This also allows more tire clearance and creates an improved chainline for optimal drivetrain performance.
10
Giant Tubeless System
Integrated Tubeless WheelSystem and tires deliver improved efficiency, comfort and control in the most user-friendly and reliable system.
Technologie
ADVANCED FORGED COMPOSITE
Processus de moulage de pointe sous haute pression permettant de produire des composants en fibres de carbone de forme complexe plus légers, rigides et résistants que des composants similaires en aluminium.
ALUMINIUM ALUXX SL
Ce matériau aluminium de très haut niveau, fait à partir d'un alliage d'aluminium 6011, délivre un ratio poids-puissance de première qualité. Les cadres ALUXX SL comportent une technologie unique de soudure pour apporter la meilleure expérience possible au cycliste.
Flip Chip - Maestro
Notre technologie Flip Chip permet d’ajuster simplement et rapidement la géométrie de votre vélo pour s’adapter à votre style de pilotage, vos préférences d’utilisation et selon le type de terrain. Le Flip Chip est un système d’excentrique situé sur la biellette supérieure. Il dispose d’une position haute et basse faisant varier la hauteur de pédalier et les angles de tube de selle et de direction.
SUSPENSION MAESTRO
Quatre points de pivot stratégiquement positionnés et deux biellettes travaillent ensemble pour créer un point de pivot flottant, pour un système de suspension actif, efficace et indépendant.
OVERDRIVE
Conçue pour améliorer la précision de la direction de la partie avant, cette technologie de pivot de fourche utilise des roulements surdimensionnés dans le jeu de direction (pour la route, inférieur 1 1/4", supérieur 1 1/8", et pour le tout-terrain, inférieur 1 1/2", supérieur 1 1/8") ainsi qu’un pivot de fourche conique, qui fonctionnent en association pour apporter une rigidité optimale de la direction.
POWERCORE
La partie surdimensionnée à l’extrême du boîtier de pédalier et des bases arrière comprend un boîtier de pédalier de 86 millimètres de large (92 millimètres pour les vélos tout-terrain) parfaitement intégré. Les bases arrières asymétriques permettent une rigidité supplémentaire et une meilleure stabilité.
Tubeless System
Moins de crevaisons, plus d’adhérence. Une résistance au roulement moindre, pour un pilotage plus précis, plus rapide. Le système tubeless de Giant rend tous ces avantages plus accessibles que jamais.
