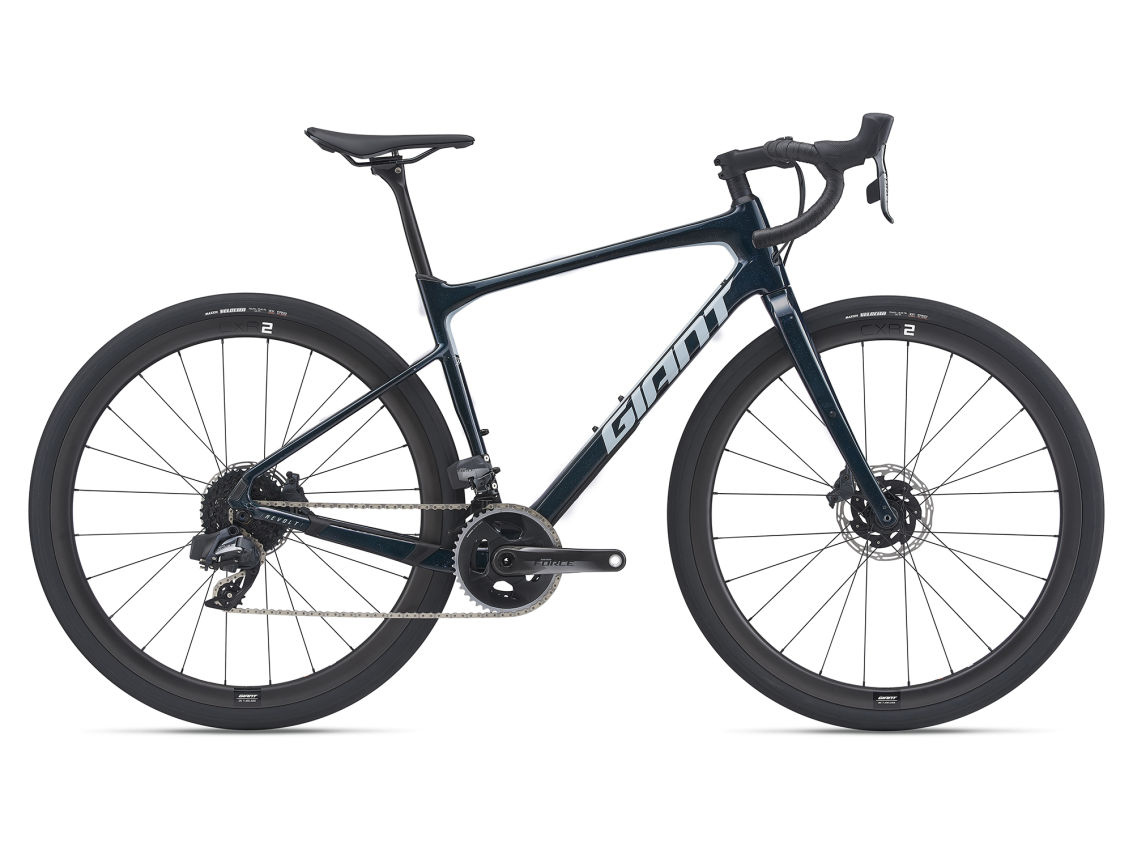

Revolt Advanced Pro 0
2021
Gravel goals vary, but whether you want flat-out speed or smooth control, this pro-level flyer can do it all. Lightweight, compliant and ultra-efficient on roads, gravel and dirt, it’s built for endurance and confident handling so you can crush daily rides and big weekend adventures.
This high-performance all-rounder is the choice of Giant Factory Off-Road Team riders for grueling gravel races like the UNBOUND Gravel. It’s designed around a lightweight Advanced composite frameset with gravel-riding geometry, so you can tackle long, hard rides with greater control and less fatigue. A full composite fork eats up bumps, and the D-Fuse seatpost and Contact XR D-Fuse handlebar absorb shocks and vibrations. The frame is integrated for disc brakes and has clearance for larger tires up to 45mm so you can float through the rough stuff. Add in some clever frame details, including the X-Defender downtube protector and smart mount system for racks and accessories, and you have everything you need for your gravel adventures.
facteurs clés de performance
Versatile gravel geometry
Frame is designed with endurance positioning and shorter chainstays for precise handling, agility and control. The result is confident speed in all situations, from out-of-the-saddle climbs to rugged dirt descents.
Tuned compliance
Innovative Contact SLR D-Fuse handlebar and D-Fuse seatpost work as a system to help absorb shock without sacrificing the stiffness needed for aggressive road performance. Added frame clearance for high-volume tires up to 45mm helps smooth out rough roads, gravel and dirt.
All-rounder efficiency
The Advanced composite frame maximizes pedaling power, giving Revolt Advanced Pro a smooth, fast ride quality on variable riding surfaces.
Points importants
This high-performance all-rounder is the choice of Giant Factory Off-Road Team riders for grueling gravel races like the UNBOUND Gravel. It’s designed around a lightweight Advanced composite frameset with gravel-riding geometry, so you can tackle long, hard rides with greater control and less fatigue. A full composite fork eats up bumps, and the D-Fuse seatpost and Contact XR D-Fuse handlebar absorb shocks and vibrations. The frame is integrated for disc brakes and has clearance for larger tires up to 45mm so you can float through the rough stuff. Add in some clever frame details, including the X-Defender downtube protector and smart mount system for racks and accessories, and you have everything you need for your gravel adventures.
1
Advanced-Grade Composite Frame
High-performance grade raw carbon material is used to produce this custom frame material in our own composite factory with a high stiffness-to-weight ratio. The front triangle of the frameset is assembled and molded as one continuous piece in a proprietary manufacturing process called Modified Monocoque Construction.
2
Advanced Grade Composite Fork
Composite fork with an OverDrive tapered steer tube absorbs road shock and vibrations and allows for added tire clearance up to 45c.
3
Compact Road Design
A downward sloping toptube (from the headtube to the seattube) creates smaller front and rear triangles for a lighter, stiffer bike. It also makes it easier for riders of all sizes to have a perfect fit.
4
D-Fuse Technology
Proprietary D-shaped composite seatpost and handlebar work together to dampen vibrations and absorb road shock, resulting in a smooth, compliant ride quality.
5
Disc-Brake Integration
Frame is engineered with flat-mount disc brake integration for superior braking performance in all weather and road conditions.
6
OverDrive
Giant’s original oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/4” lower and 1 1/8” upper) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
7
MegaDrive
A massive rectangular downtube forms the link between the oversized OverDrive system and the PowerCore bottom bracket. This precisely engineered, rectangular shape yields unprecedented steering and pedaling stiffness while minimizing weight.
8
PowerCore
A massively oversized bottom-bracket/chainstay area features a fully integrated, 86-millimeter wide bottom-bracket design. Asymmetric chainstays provide additional stiffness on the driveside and stability on the non-driveside.
9
Smart Mounting System
Compatible with third party accessories, this integrated mounting system makes it easy to customize with racks, fenders and more.
Technologie
ADVANCED COMPOSITE
Le matériau en fibres de carbone haute performance de Giant nous permet de fabriquer ce kit cadre au sein de notre propre usine de composite. Grâce à des techniques de fabrication et matériaux de pointe, les cadres en composite Advanced de Liv bénéficient d’un maximum de rigidité et de confort tout en étant particulièrement légers.
OVERDRIVE
Conçue pour améliorer la précision de la direction de la partie avant, cette technologie de pivot de fourche utilise des roulements surdimensionnés dans le jeu de direction (pour la route, inférieur 1 1/4", supérieur 1 1/8", et pour le tout-terrain, inférieur 1 1/2", supérieur 1 1/8") ainsi qu’un pivot de fourche conique, qui fonctionnent en association pour apporter une rigidité optimale de la direction.
D-FUSE
La tige de selle et le cintre D-Fuse ont été conçus comme un ensemble, absorbant les aspérités de la route et les chocs pour vous permettre de rouler plus loin et plus vite.
Tubeless System
Moins de crevaisons, plus d’adhérence. Une résistance au roulement moindre, pour un pilotage plus précis, plus rapide. Le système tubeless de Giant rend tous ces avantages plus accessibles que jamais.
Guide des tailles et géométries
Tailles pour référence seulement. Veuillez vérifier avec un détaillant local Giant ou Liv afin de déterminer la taille appropriée.
Les différentes tailles peuvent varier d'un pays à l'autre.
- XS
- 155 cm5’1”
166 cm5’5”
- S
- 159 cm5’3” 171 cm5’7”
- M
- 169 cm5’7” 181 cm5’11”
- ML
- 174 cm5’9” 186 cm6’1”
- L
- 179 cm5’10” 191 cm6’3”
- XL
- 189 cm6’2” 200 cm6’7”
| XS | S | M | ML | L | XL | |
|---|---|---|---|---|---|---|
| A Longueur de tube de selle (mm) (inch) | 43016,9 | 45017,7 | 47018,5 | 49019,3 | 51020,1 | 53020,9 |
| B Angle de tube de selle (degrees) | 74,0° | 73,5° | 73,5° | 73,0° | 73,0° | 73,0° |
| C Longueur du tube supérieur (mm) (inch) | 53020,9 | 54021,3 | 55021,7 | 56522,2 | 57522,6 | 59023,2 |
| D Longueur du tube de direction (mm) (inch) | 1254,9 | 1355,3 | 1505,9 | 1656,5 | 1807,1 | 1957,7 |
| E Angle du tube de direction (degrees) | 70,5° | 70,5° | 70,5° | 71,0° | 71,0° | 71,0° |
| F Déport de fourche (mm) (inch) | 502 | 502 | 502 | 502 | 502 | 502 |
| G Chasse (mm) (inch) | 74,12,9 | 74,12,9 | 74,12,9 | 70,72,8 | 70,72,8 | 70,72,8 |
| H Empattement (mm) (inch) | 101439,9 | 102040,2 | 103140,6 | 103640,8 | 104641,2 | 106241,8 |
| I Longueur des bases (mm) (inch) | 42516,7 | 42516,7 | 42516,7 | 42516,7 | 42516,7 | 42516,7 |
| J Hauteur du boitier de pédalier (mm) (inch) | 702,8 | 702,8 | 702,8 | 702,8 | 702,8 | 702,8 |
| K Stack (mm) (inch) | 54821,6 | 55822 | 57222,5 | 58823,1 | 60223,7 | 61624,3 |
| L Reach (mm) (inch) | 37314,7 | 37514,8 | 38115 | 38515,2 | 39115,4 | 40215,8 |
| M Hauteur d'enjambement (mm) (inch) | 71928,3 | 73428,9 | 75229,6 | 76830,2 | 78630,9 | 80331,6 |
| N Largeur de cintre (mm) (inch) | 42016,5 | 42016,5 | 44017,3 | 44017,3 | 46018,1 | 46018,1 |
| O Longueur de potence (mm) (inch) | 702,8 | 803,1 | 903,5 | 1003,9 | 1003,9 | 1003,9 |
| P Longueur des manivelles (mm) (inch) | 1706,7 | 1706,7 | 172,56,8 | 172,56,8 | 1756,9 | 1756,9 |
| Q Diamètre des roues | 700C | 700C | 700C | 700C | 700C | 700C |
