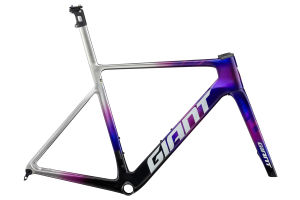

Propel Advanced SL Team Frameset

4 899 $

Skip to compare section

Unleash your sprint with 200 meters to go. Close a gap, chase back, launch a solo attack. This new aero road machine is made for the moments that count. More aero, more adjustable, more ways to win.

Facteurs de performance clés

Integrated aerodynamics

AeroSystem Shaping, a result of CFD analysis and dynamic wind-tunnel testing, optimizes aerodynamic performance at every yaw angle. The truncated ellipse airfoil tube shapes produces outstanding overall aero performance.

Easier adjustability

All-new cable routing through the handlebar and frame makes it quicker and easier to adjust or change cockpit components and fine-tune performance and riding position.

Race-winning efficiency

Advanced SL-grade composite frameset features Giant’s pro-level composite materials and manufacturing processes. The result is 225 grams of weight savings compared to the previous generation and an even greater stiffness-to-weight advantage.

This is a carousel with slides. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.

Points importants

The Propel Advanced SL frameset is engineered with Giant’s AeroSystem Shaping technology, which means every tube shape and angle is optimized for minimal drag. The tubes feature a truncated ellipse shape for a frame that is ultra-stiff and superlight, while the integrated seatpost reduces weight, improves aero performance, and adds road-smoothing compliance. This special edition honors Team Jayco AlUla with the team’s bold colors.

Propel Advanced SL Frameset Team Edition with interactive tooltips

Technologies

Technologie de Composite Advanced SL
Technologie AeroSystem Shaping
OverDrive Aero
Tige de selle intégrée

Guide de Taille et Géométrie

Tailles pour référence seulement. Veuillez vérifier avec votre détaillant local Giant ou Liv afin de déterminer la taille appropriée.
Les différentes tailles peuvent varier d'un pays à l'autre.

Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  • XS
      157 cm5’2” to 169 cm5’7”
  • S
      165 cm5’5” to 175 cm5’9”
  • M
      171 cm5’7” to 181 cm5’11”
  • L
      183 cm6’0” to 193 cm6’4”
bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
 XSSML
A Longueur du tube de selle (mm) (inch)68026,87102874029,180031,5
B Angle du tube de selle (degrees)74,5°74,0°73,5°73,0°
C Longueur du tube supérieur (top tube) (mm) (inch)52020,553521,155021,758022,8
D Longueur du tube de direction (head tube) (mm) (inch)1204,71305,11455,71857,3
E Angle du tube de direction (degrees)71,0°72,3°73,0°73,0°
F Déport (rake) de fourche (mm) (inch)451,8451,8451,8451,8
G Trail (mm) (inch)70,52,862,52,457,82,257,82,2
H Empattement (mm) (inch)97638,497738,598038,6100639,6
I Longueur des bases (mm) (inch)40515,940515,940515,940515,9
J Hauteur du boitier de pédalier (mm) (inch)722,8702,8702,8672,6
K Portée Verticale (Stack) (mm) (inch)51720,452820,854521,558122,9
L Portée Horizontale (Reach) (mm) (inch)37614,838315,138815,340215,8
M Hauteur du cadre (mm) (inch)73428,975529,777530,582132,3
N Largeur du Guidon (mm) (inch)40015,740015,742016,544017,3
O Longueur de la Potence (mm) (inch)803,1903,51003,91104,3
P Longueur des manivelles (mm) (inch)1706,71706,7172,56,81756,9
Q Diamètre des Roues 700C700C700C700C
Caractéristiques techniques
  • Tailles
    XS, S, M, M/L, L, XL
  • Cadre
    Advanced SL-grade Composite, 12x142mm thru-axle, integrated seatpost, disc
  • Fourche
    Advanced SL-grade composite, full-composite OverDrive Aero steerer, 12x100mm thru-axle, disc
  • Tige de selle
    Advanced SL-grade composite, integrated design, -5/+15mm offset
  • Extras
    computer mount, water bottle cages, tubeless prepared, 32mm max tire size
  • Max Tire Clearance
    32mm
  • Poids
    Quel est le poids du vélo ? C’est une question classique et importante. Il n’y a aucun standard dans l’industrie du vélo qui permet de comparer les poids des vélos d’une marque à une autre. Ce qui conduit très souvent à de mauvaises informations. Les différences reposent sur les tailles, les matériaux utilisés, les finitions, les éléments inclus ou non dans l’évaluation du poids…Nous considérons que la seule façon d’évaluer le poids d’un vélo et toute simplement de l’essayer.

Télécharger le PDF

GIANT Canada se réserve le droit de modifier les spécifications sans préavis. Photos non contractuelles.
