Professional-grade raw carbon is woven in the Giant composite factory using the most advanced engineering and construction methods. Continuous Fiber Technology adds strength and minimizes weight.

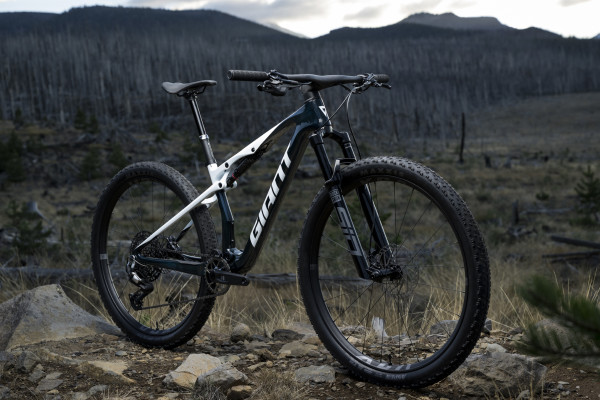

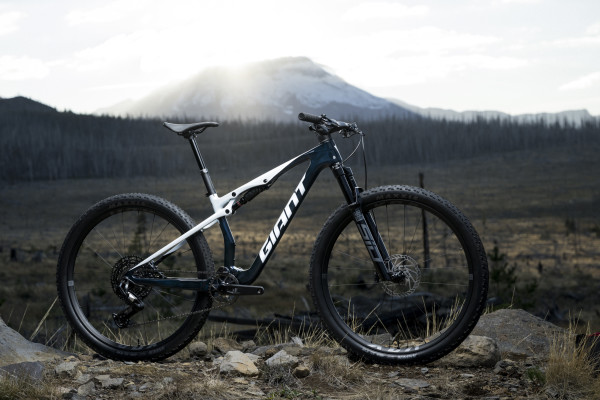

Anthem Advanced SL
Developed to help Giant pro Alan Hatherly win the 2025 Elite Men’s XCO World Championship, this superlight XC composite flyer is engineered with a semi-integrated 120mm FlexPoint Pro rear suspension system and a flip chip to adjust geometry for any racecourse or XC terrain.
Comparer les modèles |
|||
|
|
|
|
|
Roues
|
Giant XCR WheelSystem | Giant XCR WheelSystem | Giant XCA 29 WheelSystem |
|---|---|---|---|
|
Leviers de vitesse
|
SRAM AXS Pod, 1x12 | SRAM AXS Pod, discrete clamp, 1x12 | Shimano Deore mechanical, 1x12 |
|
Pédalier
|
SRAM XX SL Eagle Transmission with Quark power meter 34t, 55mm chainline S:170mm, M:170mm, L:175mm, XL:175mm | SRAM GX Transmission, 34t, 55mm chainline S:170mm, M:170mm, L:175mm, XL:175mm | Praxis Cadet HD M24, 32t, 55mm chainline S:170mm, M:170mm, L:175mm, XL:175mm |
|

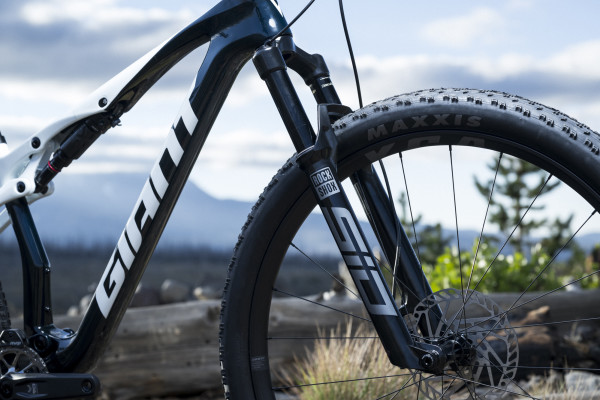

Fourche
|
RockShox Sid Flight Attendant XC, 120mm, Flight Attendant Race Day damper, Boost 15x110, 44mm offset | RockShox Sid Select+ 3P, 120mm, Charger Race Day 2 damper, Boost 15x110, 44mm offset, remote lockout | Fox 34 SL Performance, 120mm, GRIP damper, Boost 15x110, 44mm offset, remote lockout |
|
Couleurs
|
White/Carbon | Rainbow Black/Rainbow Charcoal | Carbon/Moon Dust |
Points importants
1
ADVANCED SL COMPOSITE
2
FLEXPOINT PRO SUSPENSION
Developed as superlight rear suspension for XC bikes that demand efficiency, control and responsive handling, this 120mm, linkage-driven, single-pivot system is semi-integrated and attached beneath the top tube with a full-composite swingarm to minimize frame weight.
3
ADVANCED FORGED COMPOSITE
A high-pressure molding process is used to produce a complex shaped carbon-fiber upper rocker arm that is lighter, stiffer and stronger than an aluminum version.
4
ADJUSTABLE GEOMETRY
A two-position flip chip lets you adjust frame geometry and fine-tune the handling for your riding style and terrain. The High setting locks in a steeper head and seat tube angle, along with a higher bottom bracket, for sharp, aggressive handling on tight, technical terrain. The Low setting reduces the head and seat tube angles and lowers the bottom bracket, offering slightly more relaxed handling and greater control for high-speed descents.
5

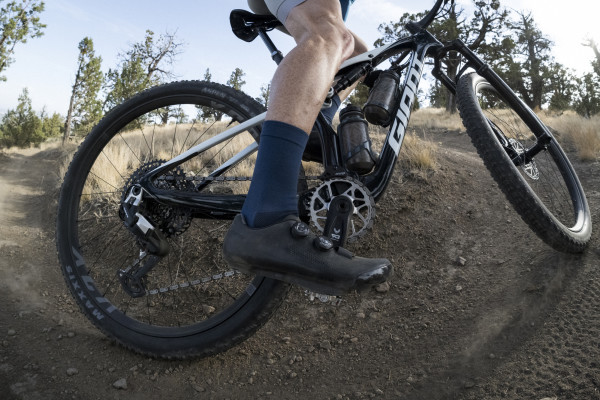

TWO BOTTLES
New frame design has space for a second water bottle. Integrated mounts on the the seat tube allow you to carry more hydration without having to wear a pack—a major upgrade for marathon races or longer XC rides.
6

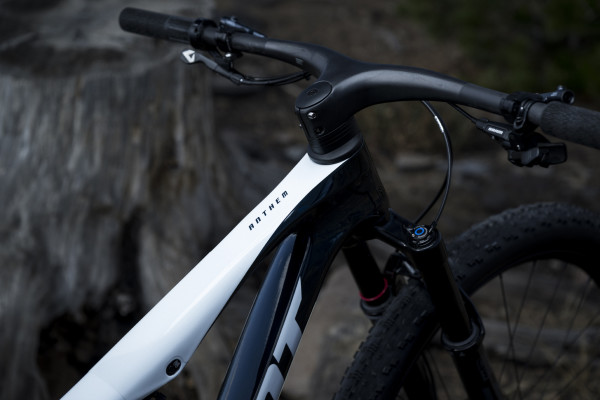

OVERDRIVE
Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/2” lower and 1 1/8” upper) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
7
MEGADRIVE
A massive down tube and oversized top tube provide superior front end lateral and torsional stiffness. The precisely engineered, rectangular shaped down tube yields unprecedented steering precision and pedaling performance.
8
POWERCORE
A massively oversized bottom bracket area features a fully integrated, 92mm wide design. Asymmetric chainstays provide additional stiffness on the driveside and increased stability on the non-driveside.
9
WIDE GUARD
Hookless rims with a 30mm inner width and robust 5mm rounded-edge sidewalls let you run lower tire pressures for greater control, and a reduced risk of rim damage and punctures.
10
RATCHET DRIVE SYSTEM
A 10° helical engagement between the hub and ratchet rings produces efficient, consistent power transfer with reduced stress on components. 120-tooth helical ratchet rings deliver rapid 3° engagement for immediate response and precise power.
11
GIANT TUBELESS SYSTEM
Integrated Tubeless WheelSystem and tires deliver improved efficiency, comfort and control in the most user-friendly and reliable system.
Technologies
Technologie de Composite Advanced Forged
Un processus de moulage haute-pression à la pointe de la technologie est utilisé afin de produire des composantes aux formes complexes en fibre de carbone, plus légères, rigides et robustes que les composantes similaires fabriquées à partir d'aluminium. Cette technologie est utilisée pour les composantes nécessitant la plus haute performance, telles que le bras oscillant du système de suspension Maestro.
Technologie d'aluminium ALUXX SL
Ce matériel de Haute-Performance à la pointe de la technologie est principalement fait d'alliage 6011 et livre le meilleur ratio rigidité-poids de sa catégorie. Ces cadres sont aussi caractérisés par une technique de soudure unique pour une qualité de randonnée de haute-performance.
FlexPoint Pro Suspension Technology
Developed as a superlight rear suspension setup for XC bikes that demand efficiency, control and responsive handling, FlexPoint Pro is a linkage-driven, single-pivot system that delivers 100mm of rear-wheel travel. It’s engineered with a full-composite swingarm that significantly reduces overall frame weight.
MegaDrive
Un tube diagonal rectangulaire massif et un tube horizontal surdimensionné travaillent d'unisson afin de fournir une précision de conduite. Le tube diagonal rectangulaire, conçu avec précision, produit une rigidité de direction et de pédalage sans précédent.
OverDrive
La technologie originale de Giant. Conçu pour fournir une conduite de précision, le système de roulements surdimensionnés du jeu de direction (1 1/4” en bas, 1 1/8” en haut pour la route, 1 1/2” en bas, 1 1/8” en haut pour la montagne) et le pivot de fourche conique travaillent conjointement afin d'offrir une rigidité directionnelle optimale.
PowerCore
Une zone de jeu de pédalier/base arrière extrêmement surdimensionnée, caractérisée par un jeu de pédalier de 86mm (92mm pour les vélos de montagne) de diamètre totalement intégré. La base arrière asymétrique fournit plus de rigidité du côté du pédalier et plus de stabilité du côté opposé.
Dynamic Balanced Lacing
Conçu avec un effet de levier plus grand sur les rayons “tirants” et moindre sur les rayons “poussants”, la technologie DBL maximise la performance de la roue en état dynamique en formant un équilibre parfait de tension des rayons, le tout, afin de livrer une rigidité de transmission et une performance de freinage optimale.
Wide Guard Technology
When your wheel hits a sharp or square edge, especially at speed, pinch flats and rim damage can occur. Wide Guard technology minimizes this risk by broadening the contact point between the rim and tire with a solid 5mm rim sidewall. That means you can skip the heavy tire inserts to have less unsprung weight on your bike and allow your suspension to perform better. The wide sidewalls also better protect your wheel from big impacts, reducing the possibility of rim damage.
Tubeless System
Moins de crevaisons. Meilleure traction. Moins de résistance et un roulement plus doux et plus rapide. Le système Tubeless Giant vous permet d'expérimenter ces avantages plus facilement que jamais.
