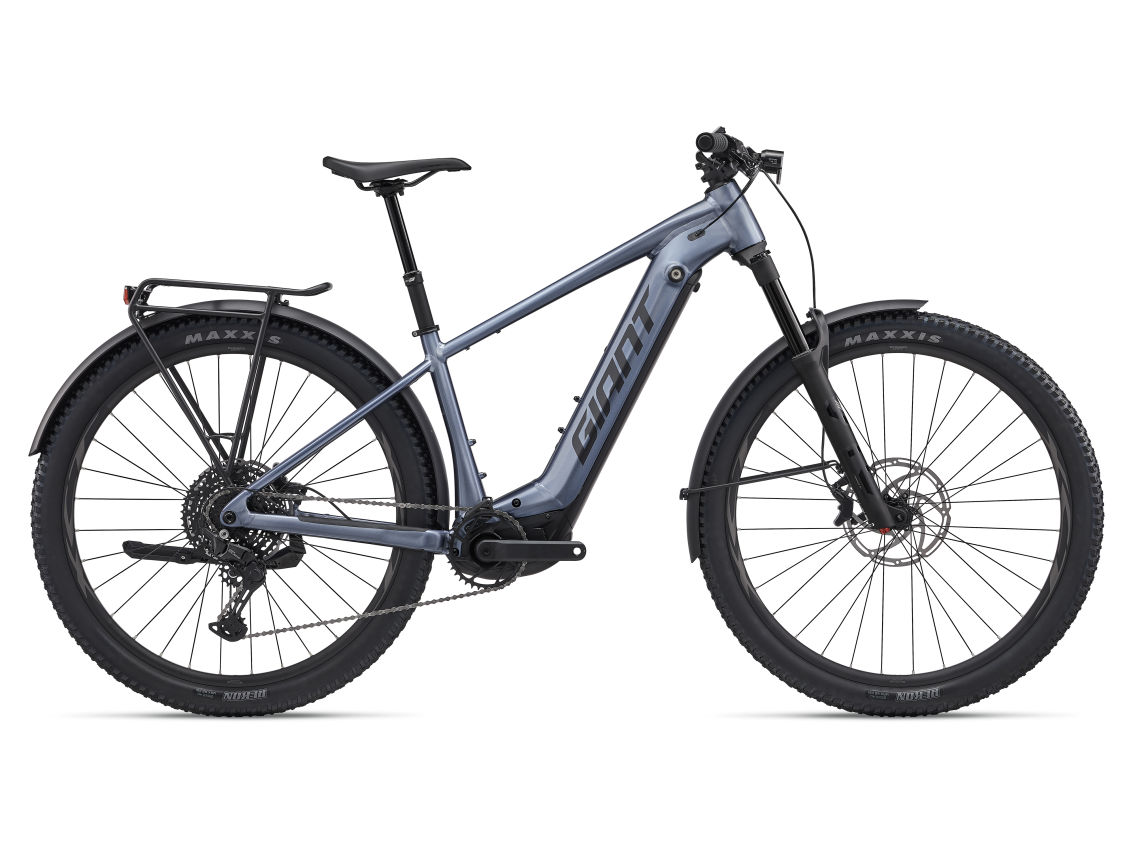

Fathom E+ 1 EX

Similar Products

Best For: Trail

Fathom E+ 1

Best For: Enduro

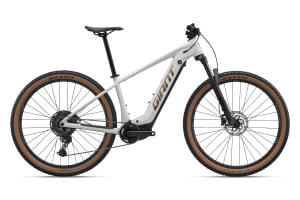

Fathom E+ 2

Take control of the trail with this fun new hardtail E-bike. Now you can climb with greater ease and ride farther—the perfect formula for a great day on the trail.

Key Performance Factors

POWER TO PUSH FURTHER

The new SyncDrive Pro 3X motor delivers strong, instantaneous power with 100Nm of torque, helping you attack climbs, hold momentum and level up your trail riding capabilities.

BALANCED, CONFIDENT HANDLING

A lightweight aluminum frame with trail-friendly geometry, 130mm of front suspension, and stable 29-inch wheels helps you tame challenging off-road terrain.

RANGE TO RIDE FURTHER

An integrated 800Wh EnergyPak Smart battery delivers the range and power needed for high-output trail rides. It charges quickly, up to 80 percent in less than 4 hours using the 4A Smart Charger.

Range

How far can I expect to ride on a single battery charge?

The range for a single battery charge can vary greatly depending on conditions such as the combined weight of the rider and cargo; wind resistance; tire pressure and tread profile; terrain and elevation changes; road or trail surface; outdoor temperature; maintenance of the E-Bike; and the condition of the battery.

The bar below gives an approximate range. Conditions are categorized as extreme, good and ideal. Extreme conditions typically occur when riding with a heavy load, strong headwinds or excessive climbs.

EnergyPak 800 / SyncDrive Sport3X 100Nm

  • Range
  • Extreme: 108 km 67 miles
  • Good: 164 km 101 miles
  • Ideal: 214 km 132 miles

Techs & Features

ALUXX SL Aluminum Technology
Energypak
EnergyPak Plus
RideControl Dash
Smart Assist
SyncDrive Pro 3X

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
 SMLXLXXL
B Seat Tube Angle (degrees)75,0°75,0°75,0°75,0°75,0°
C Top Tube Length (mm) (inch)59023,26102463024,865025,667026,4
D Head Tube Length (mm) (inch)1104,31204,71305,11405,51505,9
E Head Tube Angle (degrees)66,0°66,0°66,0°66,0°66,0°
H Wheelbase (mm) (inch)119747,1121948124148,9126249,7128450,6
I Chain Stay Length (mm) (inch)47018,547018,547018,547018,547018,5
K Stack (mm) (inch)64725,565625,866526,267426,568426,9
L Reach (mm) (inch)41616,443417,145117,846918,548619,1
P Crank Length (mm) (inch)1656,51656,51656,51656,51656,5
Specs
  • Motor
    Giant SyncDrive Pro 3X, 100Nm, PedalPlus 6-Sensor technology
  • Controller
    Giant RideControl Dash 2, Smart Assist automatic mode, 5 support levels
  • Display
    Giant RideControl Dash 2, full color LCD display
  • Battery
    Giant EnergyPak, 800Wh
  • Charger
    Giant EnergyPak 4A smart charger
  • Frame
    ALUXX-grade aluminium, OverDrive, 148x12mm thru-axle, integrated KSA40 kickstand mount
  • Fork
    Giant STL 36 Air, 130mm travel, 5-position compression adjust, tapered steerer, 72mm crown, e-bike optimized, 110x15mm Boost axle, full fender compatible
  • Handlebar
    Giant Connect TR35, 20mm rise, 35x760mm [S], 35x780mm [M-XXL]
  • Grips
    Giant Sole-O
  • Stem
    Giant Contact SL 35, 40 mm
  • Seatpost
    Giant Contact Switch AT, 30.9 mm travel-adjust dropper post, XS & S: 110-140 mm, M & L: 140-170 mm
  • Saddle
    Giant Ergo Contact Trail
  • Pedals
    Large platform pedal, 28-pins, PP cage, steel axle
  • Shifters
    Shimano CUES, LinkGlide
  • Rear Derailleur
    Shimano CUES, LinkGlide, 10-speed, Shadow+
  • Brakes
    Tektro Orion, hydraulic disc, 4-piston, 203mm [F/R] rotors
  • Brake Levers
    Tektro Orion
  • Cassette
    Shimano CUES, LinkGlide, 10-speed, 11x48
  • Chain
    Shimano LinkGlide
  • Crankset
    Forged aluminium, [XS/S] 165mm, [M/L] 170mm
  • Rims
    Giant XCT 29, tubeless ready, 25mm, e-bike optimized
  • Hubs
    Shimano TC500, Boost, Center-Lock, 15x110mm [F] 12x148mm [R]
  • Spokes
    Stainless steel
  • Tires
    Maxxis Rekon, 29x2.4", wire bead, EXO, 60TPI
  • Lighting
    Giant Recon EL50 Axa BlueLine Steady E6 rear
  • Lock
    ABUS Xplus battery lock
  • Carrier
    MIK rack, system bag & basket compatibility
  • Combined Maximum Load Limit
    150kg
  • Weight
    TBC

All specifications listed are subject to change without notice.
