36.499 kr.
Du har tilføjet

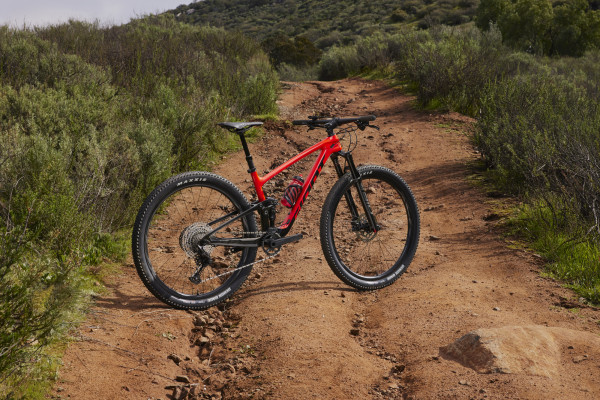

Anthem Advanced Pro 29 3
til din kurv
Best For: Sport XC
Anthem Advanced Pro 29 1
59.499 kr.

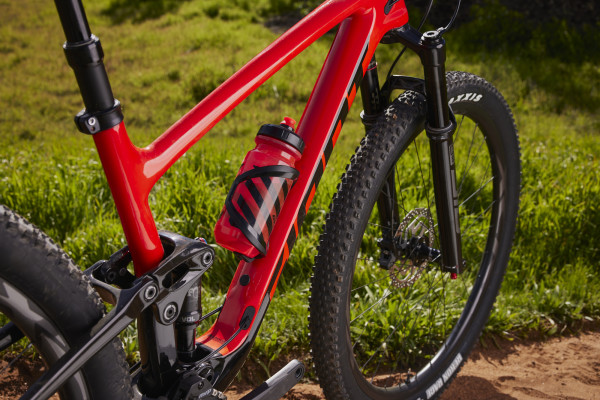

Næste generations avancerede carbon-ramme og bagsvingarm er 241 g lettere end tidligere version. Krankboksens område er stivere for hurtigere acceleration, og et stejlere sadelrør sætter rytteren i en effektiv klatreposition.

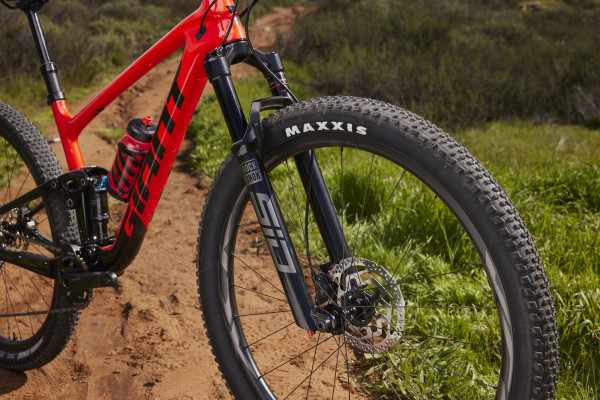

FlexPoint Pro affjedring leverer 100 mm jævn, aktiv vandring bagi. Rammesættet har moderne XC-geometri, herunder et 67,5-graders kronrør og 110 mm affjedret gaffel til tekniske nedkørsler.
Rammegeometri og affjedring er optimeret til hurtige og stabile 29-tommer hjul. En længere rækkevidde og modificeret cockpit inklusive et 35 mm carbonstyr og alu-frempind øger balancen og stabiliteten yderligere på XC-terræn.
Engineered with a full composite frameset, this 29er has 100mm of rear suspension travel and 110mm up front. The linkage-driven, single-pivot FlexPoint Pro rear suspension makes room for shorter chainstays to improve climbing capabilities and overall agility. Other updates include new 29er-specific XC race geometry with a longer reach and a slacker headtube angle plus a lightweight, stiff composite wheelset for quick, precise handling.
High-performance grade raw carbon material is used to produce this custom frame material in our own composite factory. The mainframe and rear swingarm are handcrafted with monocoque construction for optimized stiffness-to-weight and an ultra-responsive ride quality.

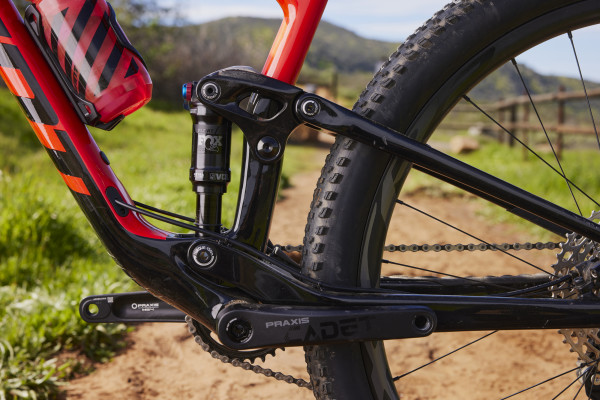

Developed as superlight rear suspension for XC bikes that demand efficiency, control and responsive handling, this linkage-driven, single-pivot system delivers 100mm of rear-wheel travel. It’s engineered with a full-composite swingarm to minimize frame weight.
The superlight composite frame is optimized for efficiency and control with an updated 67.5-degree head tube angle, longer reach, and a 110mm suspension fork for fast, technical XC performance.
Giant’s proven oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/2” lower and 1 1/8” upper) and tapered steerer tube work in conjunction to provide optimal steering stiffness.

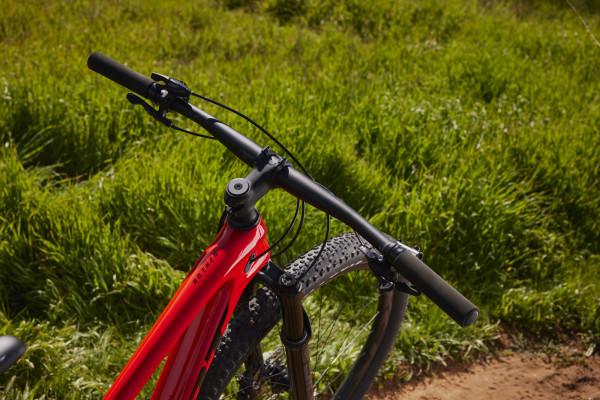

New Giant Contact SL stem and composite handlebar with a larger 35mm diameter and ample width for more control and leverage while descending, sprinting and climbing.
Wider hub spacing (110mm front/148mm rear) results in stiffer wheels for added control plus more tire clearance and an improved chainline to improve drivetrain performance.
A state-of-the-art high-pressure molding process is used to produce the composite rocker arm, making it lighter, stiffer and stronger than aluminum.
A massively oversized bottom bracket/chainstay area features a fully integrated, 92mm bottom bracket design. Asymmetric chainstays provide additional stiffness on the driveside and stability on the non-driveside.
Lightweight, stiff and durable carbon wheels and tubeless tires deliver race-ready efficiency and precision handling.
New design for internal cable routing offers a clean look and performance for derailleur, brake and dropper post cables and housing.
All-new Giant/MRP chain guide reduces the chance of the chain falling off the chainring on rough, technical XC terrain.
Størrelsesskemaet må kun bruges som reference. Besøg din lokale forhandler for at få målt den korrekt størrelse da den ikke kun er afhængig af din højde men bla. også ben- og kropslængde. Hvilke størrelser der er til rådighed kan variere fra land til land.
172 cm5’8” 180 cm5’11” 188 cm6’2” 198 cm6’6”
| S | M | L | XL | ||
|---|---|---|---|---|---|
| A | Sadelrørslængde (mm) (inch) | 39015,4 | 42016,5 | 46518,3 | 49519,5 |
| B | Sadelrørsvinkel (degrees) | 75,5° | 75,5° | 75,5° | 75,5° |
| C | Overrørslængde (mm) (inch) | 57222,5 | 60423,8 | 62624,6 | 65325,7 |
| D | Kronrørslængde (mm) (inch) | 903,5 | 953,7 | 1054,1 | 1154,5 |
| E | Kronrøsvinkel (degrees) | 67,5° | 67,5° | 67,5° | 67,5° |
| F | Forgaffel fremspring (rake) (mm) (inch) | 441,7 | 441,7 | 441,7 | 441,7 |
| G | Sti (mm) (inch) | 1094,3 | 1094,3 | 1094,3 | 1094,3 |
| H | Akselafstand (mm) (inch) | 112744,4 | 115945,6 | 118346,6 | 121247,7 |
| I | Kædestagslængde (mm) (inch) | 43517,1 | 43517,1 | 43517,1 | 43517,1 |
| J | Krankboks drop (mm) (inch) | 421,7 | 421,7 | 421,7 | 421,7 |
| K | Stack (mm) (inch) | 48919,3 | 59323,3 | 60323,7 | 61224,1 |
| L | Reach (mm) (inch) | 42016,5 | 45017,7 | 47018,5 | 49519,5 |
| M | Skridthøjde (mm) (inch) | 74529,3 | 75029,5 | 77730,6 | 80031,5 |
| N | Styrbredde (mm) (inch) | 76029,9 | 76029,9 | 76029,9 | 76029,9 |
| O | Frempindslængde (mm) (inch) | 602,4 | 702,8 | 702,8 | 702,8 |
| P | Pedalarmslængde (mm) (inch) | 1706,7 | 1756,9 | 1756,9 | 1756,9 |
| Q | Hjulstørrelse | 29" | 29" | 29" | 29" |
Alle de anførte specifikationer kan ændres uden varsel.
