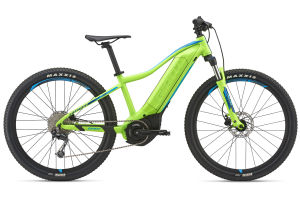

Fathom E+ Jr.

2019

Skip to compare section

Everything a young rider needs to climb higher, ride longer and have more fun on XC trails. This all-new E-bike will put a smile on any kid’s face and make off-road family adventures more fun than ever.

The all new Fathom E+ Jr. opens up a world of off-road adventures for young riders. Its lightweight ALUXX aluminum frame and trail-friendly geometry makes it easy to handle for smaller riders. Equipped with our SyncDrive Sport 80Nm technology, which delivers up to 350 percent more pedaling power, it helps young riders tackle tough climbs with ease. Designed with the new integrated EnergyPak400 and RideControl One button controls, it has an integrated look and feel that’s incredibly user-friendly. The frame is designed for and fitted with a 120mm suspension fork and a 9-speed drivetrain which offers you everything you need for a comfortable and longer ride.

Wichtige Leistungsfaktoren

Tuneable support

Equipped with our SyncDrive Sport 80Nm technology, which delivers up to 350 percent more pedaling power, it helps young riders tackle tough climbs with ease

User-Friendly support control

Designed with the new integrated EnergyPak400 and RideControl One button controls, it has an integrated look and feel that’s incredibly user-friendly.

Connectivity

This E-bike is ready for the future with the possibilities to connect your E-bike through Bluetooth.

Technologien

ALUXX SL Aluminum Technologie
Hybrid Cycling Technologie
SyncDrive Sport
RideControl One

Grössen- und Geometriedaten

Die Größen- und Geometriedaten stellen eine Orientierung für dich dar. Dein lokaler GIANT- bzw. Liv-Händler hilft dir gerne, die perfekte Größe zu finden.

bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  One Size
ASitzrohrlänge (mm) (inch)36514,4
BSitzwinkel (degrees)73,5°
COberrohrlänge (mm) (inch)55021,7
DSteuerrohrlänge (mm) (inch)1104,3
ELenkwinkel (degrees)68,0°
FGabelvorbiegung (mm) (inch)401,6
GGabelnachlauf (mm) (inch)933,7
HRadstand (mm) (inch)107242,2
IKettenstrebenlänge (mm) (inch)45517,9
JTretlagerabsenkung (mm) (inch)351,4
KStack (mm) (inch)54921,6
LReach (mm) (inch)38715,2
NLenkerbreite (mm) (inch)69027,2
OVorbaulänge (mm) (inch)502
PKurbelarmlänge (mm) (inch)1606,3
QRaddurchmesser 26"
Spezifikationen
  • Motor
    GIANT SyncDrive Sport powered by Yamaha Mittelmotor, 250 W, 80 Nm
  • Sensorik
    Giant PedalPlus 4-sensor technology
  • Displayeinheit
    GIANT RideControl One
  • Akku
    GIANT EnergyPak 400 Lithium-Ionen Unterrohr-Akku, SideRelease semi-integriert, 36 V - 11.36 Ah (409 Wh), abschließbar, Onboard- / Offboard-Charging
  • Rahmengrößen
    26" / 36,5 cm
  • Farbe(n)
    Neongreen-Blue Matt
  • Rahmen
    GIANT Fathom E+ 26" AluxX Aluminium für SyncDrive Sport Mittelmotor mit semi-integriertem SideRelease EnergyPak-Akku, OverDrive Steuerrohr, interne Zugverlegung, integrierte Gepäckträger-, Ständer- und Radschutz-Aufnahme
  • Gabel
    SR Suntour XCM HLO 26", 80mm, Lockout, 1⅛"~1½"-OverDrive Alu-Schaft
  • Lenker
    GIANT Connect TR RiserBar, 25mm Rise, 6° up / 9° back, 31.8x670
  • Vorbau
    GIANT Connect, 8°, 31.8x50
  • Sattelstütze
    GIANT Connect 2-Bolt, 30.9x350
  • Sattel
    GIANT Contact Neutral
  • Pedale
    Wellgo M149 MTB Aluminium
  • Schalthebel
    Shimano Altus M2000 Rapidfire Plus 1x9
  • Schaltwerk
    Shimano Deore Shadow M592
  • Bremsen
    Tektro Junior HD-M282, Hydraulik-Scheibenbremse, 160mm
  • Bremshebel
    Tektro Junior HD-M282
  • Kassette
    Shimano HG201-9f. (Acera-Serie), 11-36 Z.
  • Kette
    KMC e.9 Sport, E-Bike optimized
  • Kurbelsatz
    Samox Aone Steel Forged Kettenblatt, 34 Z. / GIANT Kurbelarme, 160mm, Aluminium
  • Felgen
    GIANT GX03V Disc Laufrad-Satz, v: ungeöst / h: geöst, ETRTO 21-559
  • Naben (v/h)
    GIANT eTracker Sport Disc, QR
  • Speichen
    Niro 2.0/2.3 schwarz, 28/32 Speichen
  • Reifen
    Maxxis Ikon, 57-559
  • Zubehör (teilw. verbaut)
    4A Schnell-Ladegerät, Kettenstreben-Protektor, Glocke
  • Gewicht (kg)
    21,4

Datenblatt herunterladen

Spezifikations-, Preis- und Farbänderungen vorbehalten.
