$ 5.941.500

What is my size?

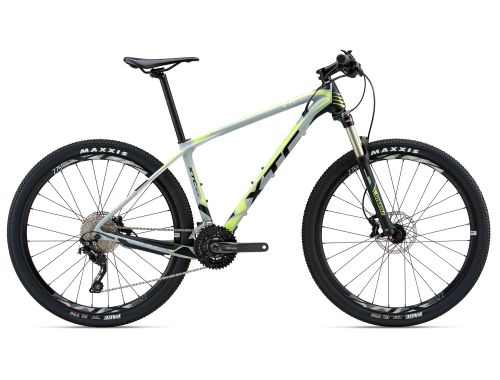

  • ALUXX SLR-grade aluminium frame
  • SR Suntour Raidon RL-R 100mm-travel fork with remote lockout
  • Shimano SLX/XT 2x11-speed drivetrain
  • TRP Slate T4 hydraulic disc brakes
  • Giant XCR 1 27.5 Carbon WheelSystem with Maxxis tubeless tires
  • Color: Matte/Black/Orange, Matte/Charcoal/Neon Green

Download PDF

ColoresMatte/Black/Orange, Matte/Charcoal/Neon Green
MarcoALUXX SLR-Grade Aluminum
TenedorSR Suntour Raidon RL-R 27.5", 100mm Travel, QR15x110mm, Remote Lockout, Tapered
ManubrioGiant Connect XC Flat, 620 x 31.8mm
EspigaGiant Connect, 8 Degree
Tubo de sillínGiant Connect
SillínGiant Contact (Neutral)
PedalesWellgo M255RB
CambiosShimano SLX, 2x11
Front DerailleurShimano SLX
TensorShimano XT, Shadow+
FrenosTektro TRP Slate T4, [F] 180mm [R] 160mm, hydraulic disc
Levas de frenosTektro TRP Slate T4
CassetteShimano SLX M7000, 11-42t
CadenaKMC X11-1
BielasShimano SLX, 28/38t
Eje centroShimano PressFit
RinesGiant XCR 1 27.5 Carbon WheelSystem [F] Boost 15x110 [R] 12x142 NUN XD Driver Body
LlantasMaxxis Pace M333RU TLR 27.5X2.10 60TPI Folding , Tubeless
PesoThe most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All Giant bikes are designed for best-in-class weight and ride quality.

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized Liv or Giant dealer to determine the correct size.
Available sizes may vary from country to country.

XS   157 cm5’2” 165 cm5’5”
S   165 cm5’5” 173 cm5’8”
M   173 cm5’8” 180 cm5’11”
L   180 cm5’11” 188 cm6’2”
XL   188 cm6’2” 194 cm6’4”
ASeat Tube Length (mm) (inch)35013,839015,444017,349019,352020,5
BSeat Tube Angle (degrees)73,5°73,5°73,0°73,0°73,0°
CTop Tube Length (mm) (inch)55521,957522,659523,461524,264025,2
DHead Tube Length (mm) (inch)953,7953,71003,91104,31204,7
EHead Tube Angle (degrees)69,5°69,5°69,5°69,5°69,5°
FFork Rake (mm) (inch)421,7421,7421,7421,7421,7
GTrail (mm) (inch)883,5883,5883,5883,5883,5
HWheelbase (mm) (inch)105341,5107342,2108842,8110943,7113444,6
IChain Stay Length (mm) (inch)43016,943016,943016,943016,943016,9
JBottom Bracket Drop (mm) (inch)502502502502502
KStack (mm) (inch)58022,858022,85852359423,460423,8
LReach (mm) (inch)38315,140315,941616,44331745517,9
MStand Over Height (mm) (inch)68827,170627,873929,177530,579831,4
NAncho de Manubrio (mm) (inch)78030,778030,778030,778030,778030,7
OLargo de espiga (mm) (inch)502602,4702,8803,1903,5
PLargo de bielas (mm) (inch)1706,71706,71756,91756,91756,9
QTamaño de rueda 27.5"27.5"27.5"27.5"27.5"

All specifications listed are subject to change without notice.
