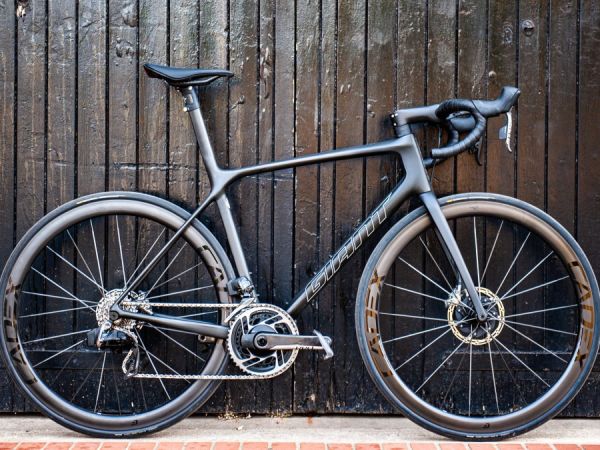

TCR Advanced SL Disc Frameset

2021

$ 11.590.000

¿Cuál es mi talla?

Share
A legend reborn. The bike that has been at the leading edge of road racing innovation for more than three decades is redesigned to be even lighter, stiffer and more aerodynamic. It’s the ultimate all-rounder for the performance obsessed.

Updated and improved in all aspects of road racing performance, the new TCR Advanced SL Disc achieves a previously unobtainable stiffness-to-weight ratio for faster climbing and sprinting, plus new aerodynamic gains for all-around efficiency. It’s the choice of CCC Team WorldTour racers like Greg Van Avermaet on challenging road courses that demand uncompromised performance in the pursuit of victory. New aerodynamic tube shaping on the headtube, downtube and fork makes it a killer on breakaways, sprints and solo chase efforts. The new TCR Advanced SL Disc also builds on its proven climbing capabilities, boasting the highest stiffness-to-weight ratio ever seen in a TCR. Additional key updates include added clearance in the frame and fork to fit larger diameter tires up to 32mm, the latest integrated WheelSystem technology, and a new aero-engineered Contact SLR composite handlebar to make it even faster against the wind.

Key Performance Factors

Class-leading efficiency

With the highest pedaling stiffness-to-weight ratio of any bike in its class and updated aero tube shaping, this frameset is engineered to give Giant pro road racers superior climbing capabilities, aerodynamic efficiency and sprint stiffness for race-winning performance.

Advanced aerodynamics

This is where the TCR’s most quantifiable gains can be found compared to previous generation models. Every tube shape was analyzed, engineered and tested to create an overall structure with significantly lower drag at a wider range of yaw angles. The result is a TCR that’s faster than ever in sprints and solo situations.

Total Control

Integrated disc brakes deliver smooth, powerful stopping power and modulation for added control in variable weather and road conditions. Flat mounts and new thru-axles boost stiffness and improve overall handling, while added frame and fork clearance allows for larger diameter tires up 32mm.

Especificaciones
  • Tallas
    XS, S, M, ML, L, XL
  • Colores
    Chrysocolla / Sincity
  • Marco
    Advanced SL-Grade Composite, integrated seatpost, disc
  • Tenedor
    Advanced SL-Grade Composite, full-composite OverDrive 2 steerer, disc
  • Tubo de sillín
    integrated design
  • Peso
    La forma más precisa de determinar el peso de una bicicleta es pedirle a tu distribuidor local que la pese por ti. Muchas marcas se esfuerzan por enumerar el peso más bajo posible, pero en realidad el peso puede variar según el tamaño, el acabado, la configuración y los accesorios. Todas nuestras bicicletas están diseñadas para ofrecer el mejor balance entre peso y calidad de su gama.

Todas las especificaciones anteriores están sujetas a cambios sin previo aviso.
Imagen de referencia.

Destacados

From materials to tube shapes to cutting-edge engineering and production, every aspect of the new TCR Advanced SL Disc was researched, designed and tested to improve overall performance on the road. More aerodynamic and efficient than ever, these are the key technologies that make this the fastest TCR ever.

TCR Advanced SL Disc with interactive tooltips

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized Liv or Giant dealer to determine the correct size.
Available sizes may vary from country to country.

Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  • XS
      157 cm5’2”  to 169 cm5’7”
  • S
      165 cm5’5”  to 175 cm5’9”
  • M
      171 cm5’7”  to 181 cm5’11”
  • ML
      177 cm5’10”  to 187 cm6’2”
  • L
      183 cm6’0”  to 193 cm6’4”
  • XL
      189 cm6’2”  to 199 cm6’6”
bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
    XS S M ML L XL
A Seat Tube Length (mm) (inch) 68026,8 71028 74029,1 77030,3 80031,5 83032,7
B Seat Tube Angle (degrees) 74,5° 74,0° 73,5° 73,0° 73,0° 72,5°
C Top Tube Length (mm) (inch) 52020,5 53521,1 55021,7 56522,2 58022,8 60023,6
D Head Tube Length (mm) (inch) 1204,7 1305,1 1455,7 1656,5 1857,3 2007,9
E Head Tube Angle (degrees) 71,0° 72,3° 73,0° 73,0° 73,0° 73,0°
F Fork Rake (mm) (inch) 451,8 451,8 451,8 451,8 451,8 451,8
G Trail (mm) (inch) 72,12,8 642,5 59,22,3 59,22,3 59,22,3 59,22,3
H Wheelbase (mm) (inch) 97638,4 97738,5 98038,6 99139 100639,6 102040,2
I Chain Stay Length (mm) (inch) 40515,9 40515,9 40515,9 40515,9 40515,9 40515,9
J Bottom Bracket Drop (mm) (inch) 722,8 69,52,7 69,52,7 672,6 672,6 672,6
K Stack (mm) (inch) 51720,4 52820,8 54521,5 56222,1 58122,9 59623,5
L Reach (mm) (inch) 37614,8 38315,1 38815,3 39315,5 40215,8 41216,2
M Stand Over Height (mm) (inch) 70627,8 72528,5 74729,4 77330,4 80031,5 81632,1
N Ancho de Manubrio (mm) (inch) 40015,7 40015,7 42016,5 42016,5 44017,3 44017,3
O Largo de espiga (mm) (inch) 803,1 903,5 1003,9 1104,3 1104,3 1204,7
P Largo de bielas (mm) (inch) 1706,7 1706,7 172,56,8 172,56,8 1756,9 1756,9
Q Tamaño de rueda 700C 700C 700C 700C 700C 700C
