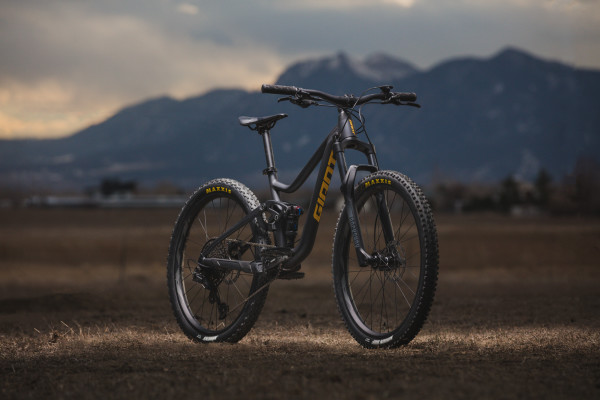

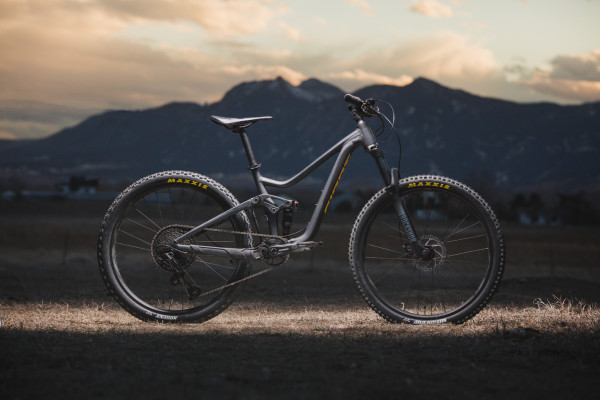

Trance Jr 26

2022

$2,399 Original price $2,999

Financing available . Learn more

AWARD-WINNING BIKES

Skip to compare section

This is a carousel with slides. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.

Techs & Features

ALUXX Aluminum Technology
Maestro Suspension Technology

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  • One Size
      145 cm4’9” to 165 cm5’5”
bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
 One Size
A Seat Tube Length (mm) (inch)38015
B Seat Tube Angle (degrees)73.0°
C Top Tube Length (mm) (inch)54021.3
D Head Tube Length (mm) (inch)953.7
E Head Tube Angle (degrees)68.0°
F Fork Rake (mm) (inch)401.6
G Trail (mm) (inch)91.43.6
H Wheelbase (mm) (inch)106842
I Chain Stay Length (mm) (inch)43517.1
J Bottom Bracket Drop (mm) (inch)100.4
K Stack (mm) (inch)55321.8
L Reach (mm) (inch)37114.6
M Stand Over Height (mm) (inch)65725.9
N Handlebar Width (mm) (inch)69027.2
O Stem Length (mm) (inch)502
P Crank Length (mm) (inch)1606.3
Q Wheel Size 26"
Specs
  • Sizes
    one size
  • Colours
    Black
  • Frame
    ALUXX SL-Grade Aluminum, 120mm Maestro suspension

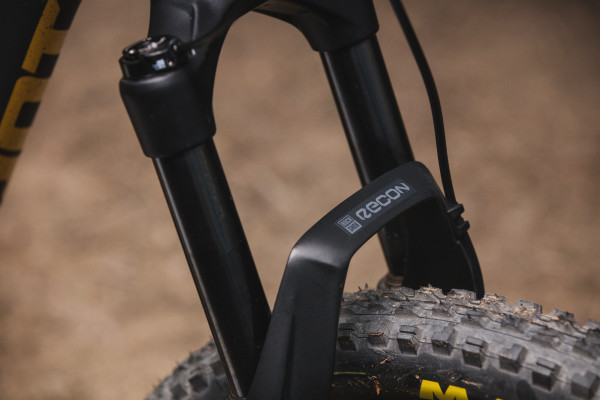

  • Fork
    RockShox Recon Silver RL, 15x110mm120mm, with remote lockout

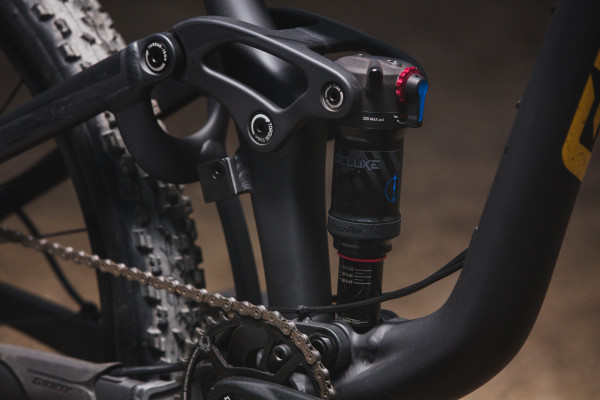

  • Shock
    RockShox Deluxe Select+

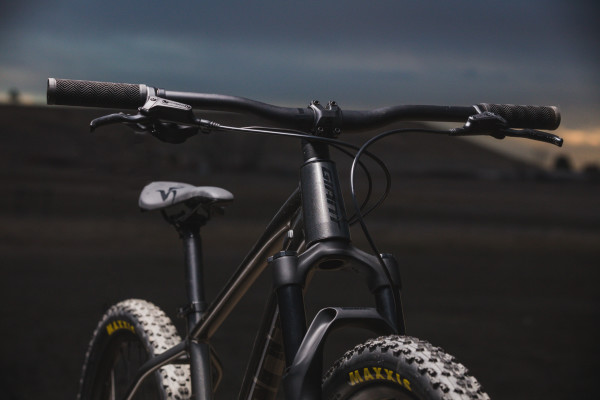

  • Handlebar
    Giant Connect, 690mm
  • Grips
    Giant Sole-O
  • Stem
    forged alloy Ahead, 50mm
  • Seatpost
    alloy, two-bolt, 30.9x350mm
  • Saddle
    Giant Contact Forward
  • Pedals
    N/A
  • Shifters
    SRAM SX Eagle, 1x12
  • Front Derailleur
    N/A
  • Rear Derailleur
    SRAM SX Eagle
  • Brakes
    Shimano BR-M201, hydraulic [F]160mm, [R]160mm rotors
  • Brake Levers
    Shimano BL-M201
  • Cassette
    SRAM SX Eagle, 11x50
  • Chain
    SRAM SX Eagle
  • Crankset
    SRAM SX DUB, 32t
  • Bottom Bracket
    SRAM DUB, press fit
  • Rims
    Giant AM 26, sleeve-joint, 30mm inner width
  • Hubs
    Giant Disc, 28h, [F] Boost 110x15mm, [R] Boost 148x12mm
  • Spokes
    stainless, 14g
  • Tires
    [F]Maxxis Minion DHF 26x2.35, 60 TPI[R]Maxxis Ardent 26" 2.25
  • Extras
    Giant 1x chain guide
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

All prices and specifications are subject to change without notice.
