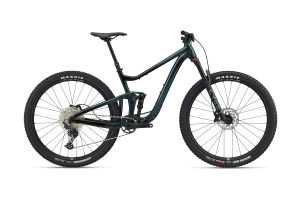

Trance 29 2

$3,199

Financing available . Learn more

20_Web_Bike_Demo_v2 Curious about a demo ride? Click here to see which participating retailer has this model available for you to try!

Buying a bike online is as easy as 1-2-3!

AWARD-WINNING BIKES

Starting at $1000

Skip to compare section

This is a carousel with slides. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.

Techs & Features

Advanced Forged Composite Technology
ALUXX SL Aluminum Technology
Flip Chip - Maestro
Maestro Suspension Technology
OverDrive
Tubeless System

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  • S
      163 cm5’4” to 172 cm5’8”
  • M
      171 cm5’7” to 180 cm5’11”
  • L
      179 cm5’10” to 188 cm6’2”
  • XL
      187 cm6’2” to 198 cm6’6”
bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
 SMLXL
 LOW | HIGHLOW | HIGHLOW | HIGHLOW | HIGH
A Seat Tube Length (mm) (inch)42016.543016.946518.349619.5
A1 Seat Post Insertion Depth (mm) (inch)29011.430011.833513.236614.4
B Seat Tube Angle (degrees)77.2° | 78.0°76.3° | 77.0°76.3° | 77.0°76.3° | 77.0°
C Top Tube Length (mm) (inch)56122.1 | 5592259923.6 | 59723.562624.6 | 62424.666326.1 | 66126
D Head Tube Length (mm) (inch)1003.91104.31204.71305.1
E Head Tube Angle (degrees)65.4° | 66.2°65.5° | 66.2°65.5° | 66.2°65.5° | 66.2°
F Fork Rake (mm) (inch)441.7441.7441.7441.7
G Trail (mm) (inch)1265 | 1204.71265 | 1204.71265 | 1204.71265 | 1204.7
H Wheelbase (mm) (inch)116645.9 | 116545.9119547 | 119447112444.3 | 112344.2126349.7 | 126249.7
I Chain Stay Length (mm) (inch)43917.3 | 43717.243917.3 | 43717.243917.3 | 43717.243917.3 | 43717.2
J Bottom Bracket Drop (mm) (inch)451.8 | 351.4451.8 | 351.4451.8 | 351.4451.8 | 351.4
K Stack (mm) (inch)61024 | 60423.861924.4 | 61324.162824.7 | 62224.563725.1 | 63124.8
L Reach (mm) (inch)42216.6 | 4311744717.6 | 4561847218.6 | 48018.950720 | 51520.3
M Stand Over Height (mm) (inch)73028.7 | 73829.172528.5 | 73428.974929.5 | 75929.977130.4 | 78130.7
N Handlebar Width (mm) (inch)78030.778030.778030.778030.7
O Stem Length (mm) (inch)401.6401.6502502
P Crank Length (mm) (inch)1656.51706.71706.71706.7
Q Wheel Size 29"29"29"29"
Specs
  • Sizes
    S, M, L, XL
  • Colours
    Asphalt Green, Solar Flare
  • Frame
    ALUXX SL-grade aluminum front and rear triangles, 120mm Maestro suspension, flip chip - Maestro, 12x148mm thru-axle
  • Fork
    Giant Crest SL, 130mm, 15x110, 44mm offset
  • Shock
    Giant Crest, 185/50, custom tuned for Giant
  • Handlebar
    Giant Contact TR35, 780x35mm
  • Grips
    Giant Trail S:120mm, M:120mm, L:130mm, XL:130mm
  • Stem
    Giant Contact SL 35 S:40mm, M:40mm, L:50mm, XL:50mm
  • Seatpost
    Contact Switch AT dropper, remote S: 110-140mm travel / 30.9 x 395mm
  • Saddle
    Giant Romero
  • Pedals
    platform [GC,GT]
  • Shifters
    Shimano Deore, 1x12
  • Front Derailleur
    N/A
  • Rear Derailleur
    Shimano Deore
  • Brakes
    Shimano Deore BR-MT420, hydraulic, Shimano RT-26 rotors [F]180mm, [R]180mm
  • Brake Levers
    Shimano BL-MT401
  • Cassette
    Shimano Deore, 10x51
  • Chain
    KMC X-12
  • Crankset
    Praxis Cadet M24, 30t, 55mm chainline S:165mm, M:170mm, L:170mm, XL:170mm
  • Bottom Bracket
    Praxis, press fit
  • Rims
    Giant TRA 2 6061 alloy, sleevejoint, 30mm IW, 40mm OW, 21mm H, Wide Guard technology, [F] 29, [R] 29 *some bikes may be substituted: Giant AM 29, 6061 alloy, sleevejoint
  • Hubs
    Front : Giant MTB alloy, 6-bolt, [R] Giant MTB alloy, 3-pawl driver, 6-bolt
  • Spokes
    Sapim
  • Tires
    [F] Maxxis Minion DHF 29x2.5 WT, 3C MaxxTerra, EXO, TR [R] Maxxis Aggressor 29x2.5, EXO, TR, tubeless
  • Extras
    tubeless prepared, 2.6" max tire size, 34t max chainring size
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Download PDF

All prices and specifications are subject to change without notice.
