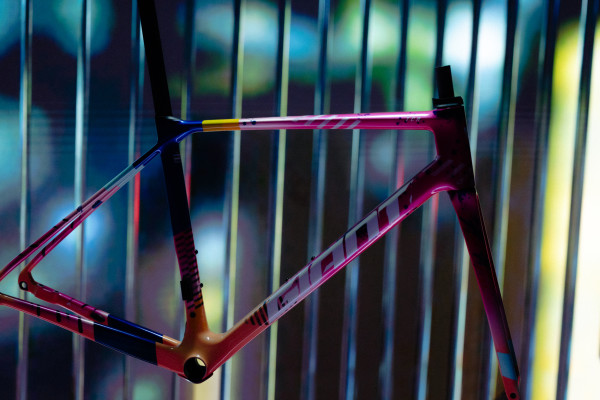

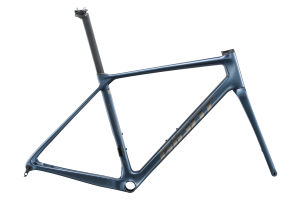

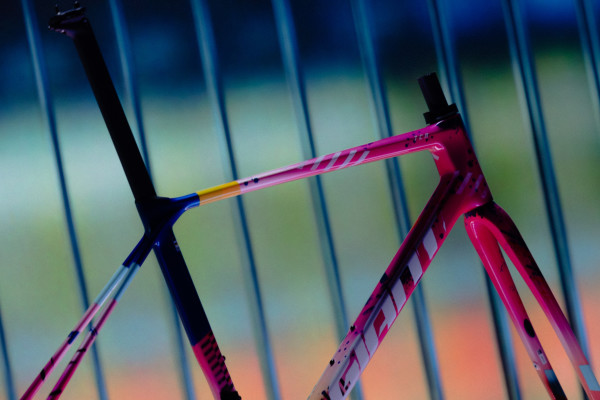

TCR Advanced Pro Frameset

$2,499

Superlight, ultra-efficient and rides like a dream. This well-rounded race bike blends industry-leading composite frame engineering with fully integrated components to help you climb, corner and descend with astonishing speed and sublime road handling.

Key Performance Factors

SYSTEM OPTIMIZATION

The frameset, wheels, cockpit and other parts are engineered, developed and tested together to perform as a system. The all-new OverDrive Aero steerer tube technology is combined with a Contact SL AeroLight stem and Contact SL handlebar to incorporate internal cable routing that integrates the top cap, cables and spacers in a more aerodynamic, user-friendly setup.

WINNING EFFICIENCY

Featuring a greater stiffness-to-weight ratio than the previous generation, along with new aero tube shaping and a lighter overall weight, this uncompromising race bike delivers explosive acceleration and unyielding pedaling stiffness. The result is race-winning performance in the moments that count.

INTEGRATED AERODYNAMICS

All tube shapes are engineered and developed using Computational Fluid Dynamics (CFD) modeling and wind-tunnel testing. From the truncated ellipse shape of frameset tubing to a new cockpit design and component integration, it all adds up to a more streamlined profile that improves overall aero performance compared to the previous generation.

Techs & Features

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

XS
157 cm5’2” 169 cm5’7”
S
165 cm5’5” 175 cm5’9”
M
171 cm5’7” 181 cm5’11”
ML
177 cm5’10” 187 cm6’2”
L
183 cm6’0” 193 cm6’4”
XL
189 cm6’2” 199 cm6’6”

bike diagram with measurements referenced in table that follows

	XS	S	M	ML	L	XL
A Seat Tube Length (mm) (inch)	42516.7	44517.5	47018.5	50019.7	53020.9	56022
B Seat Tube Angle (degrees)	74.5°	74.0°	73.5°	73.0°	73.0°	72.5°
C Top Tube Length (mm) (inch)	52020.5	53521.1	55021.7	56522.2	58022.8	60023.6
D Head Tube Length (mm) (inch)	1204.7	1305.1	1455.7	1656.5	1857.3	2007.9
E Head Tube Angle (degrees)	71.0°	72.3°	73.0°	73.0°	73.0°	73.0°
F Fork Rake (mm) (inch)	451.8	451.8	451.8	451.8	451.8	451.8
G Trail (mm) (inch)	72.12.8	642.5	59.22.3	59.22.3	59.22.3	59.22.3
H Wheelbase (mm) (inch)	97638.4	97738.5	98038.6	99139	100639.6	102040.2
I Chain Stay Length (mm) (inch)	40515.9	40515.9	40515.9	40515.9	40515.9	40515.9
J Bottom Bracket Drop (mm) (inch)	722.8	702.8	702.8	672.6	672.6	672.6
K Stack (mm) (inch)	51720.4	52820.8	54521.5	56222.1	58122.9	59623.5
L Reach (mm) (inch)	37614.8	38315.1	38815.3	39315.5	40215.8	41216.2
M Stand Over Height (mm) (inch)	71928.3	73428.9	75229.6	76830.2	78630.9	80331.6
N Handlebar Width (mm) (inch)	42016.5	42016.5	44017.3	44017.3	44017.3	44017.3
O Stem Length (mm) (inch)	803.1	903.5	1003.9	1104.3	1104.3	1204.7
P Crank Length (mm) (inch)	1656.5	1656.5	1706.7	1706.7	172.56.8	172.56.8

Sizes
XS, S, M, M/L, L, XL
Colours
Ice Age/Chrome, White/Venom Green, Snow Drift/Iris, Carnival
Frame
Advanced-grade Composite, 12x142mm thru-axle, disc
Fork
Advanced SL-grade Composite, full-composite OverDrive Aero steerer, 12x100mm thru-axle, disc
Seatpost
Giant Variant, composite, -5/+15mm offset
Extras
computer mount, tubeless prepared, 33mm max tire size
Max Tire Clearance
33mm
Weight
The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Download PDF

All prices and specifications are subject to change without notice.
