STP 26

$2,149

Similar Products

Best For: Dirt Jumper

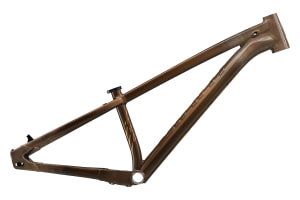

STP Frame

$899

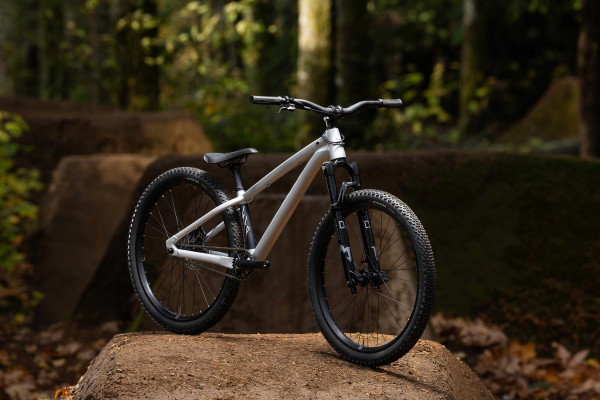

Rail the corner, boost a jump, give it a go on that tricky line. The all-new STP 26 is built for pushing limits. With its lightweight, super strong ALUXX aluminum frame, 100mm Marzocchi Bomber DJ fork, and 26-inch Giant TRA 2 wheels, it’s rugged and ready for takeoff.

Key Performance Factors

RUGGED DURABILITY

Super strong and lightweight ALUXX aluminum frameset is backed by a warranty for hard-charging durability. A 26-inch Giant TRA 2 wheelset features Wide Guard rim technology, allowing lower tire pressures for better control along with increased puncture protection.

AGILITY AND CONTROL

The frame’s lower stand-over height offers balance and stability with a lower center of gravity. The 26-inch wheels and steeper head tube, combined with a shorter wheelbase and chainstays, make it quick and easily maneuverable for dirt jump performance. Gyro compatibility enables 360-degree handlebar rotation for bar spins.

READY FOR LANDING

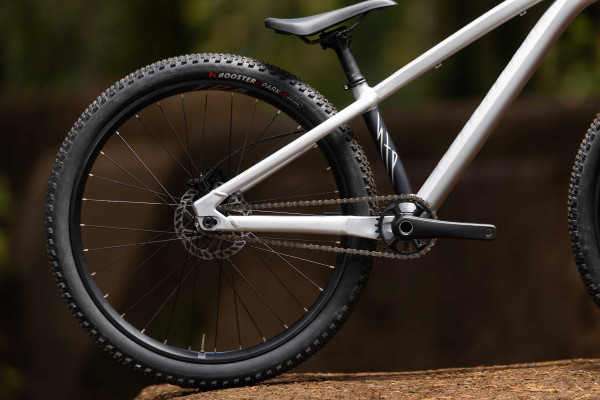

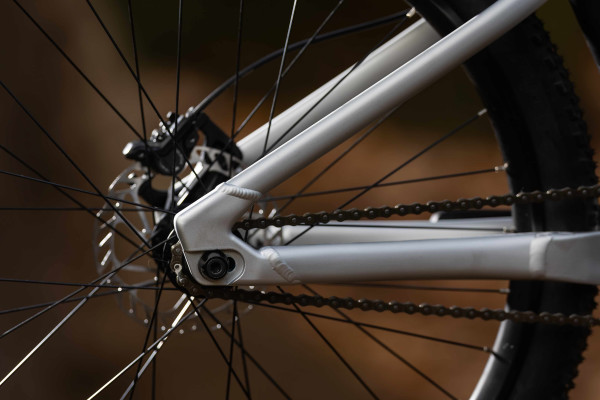

The 135x10mm horizontal sliding rear dropout and Marzocchi Bomber DJ fork with 100mm of travel deliver smooth control on rugged terrain, jumps or drops—making it a versatile choice for dirt jumps or technical trails. A Giant Contact TR35 handlebar and shorter stem deliver pinpoint control that stands up to hard-charging dirt sessions.

Highlights

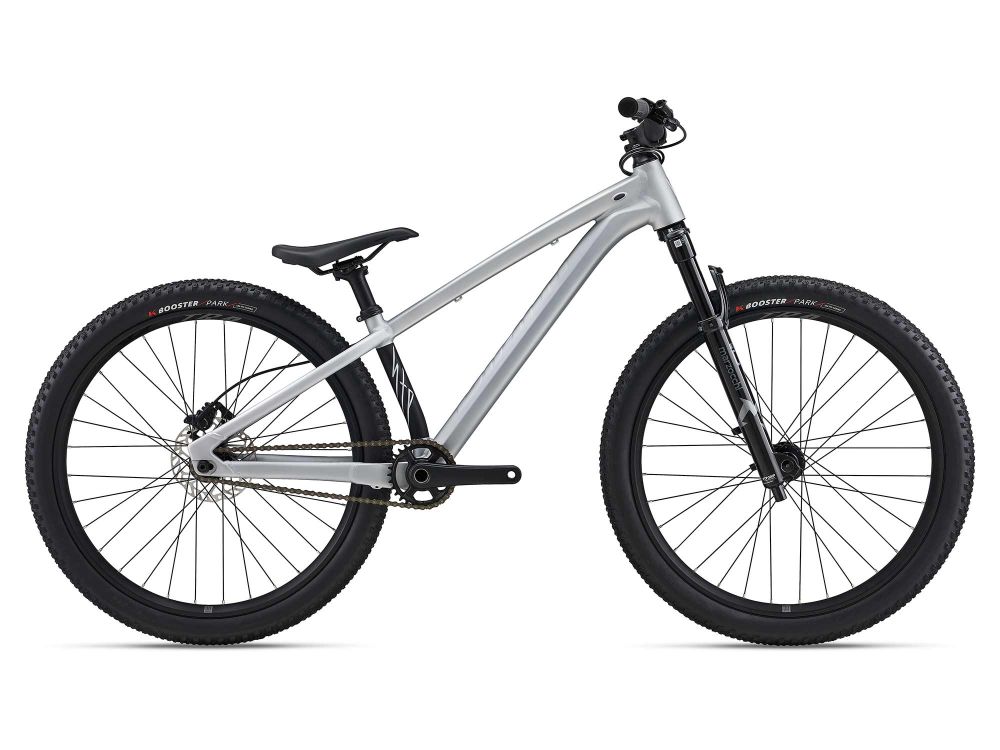

STP 26 with interactive tooltips

Techs & Features

ALUXX Aluminum Technology
Tubeless System

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  • One Size
      155 cm5’1”  to 185 cm6’1”
bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
 One Size
A Seat Tube Length (mm) (inch)31012.2
A1 Seat Post Insertion Depth (mm) (inch)2258.9
B Seat Tube Angle (degrees)72.0°
C Top Tube Length (mm) (inch)59423.4
D Head Tube Length (mm) (inch)1204.7
E Head Tube Angle (degrees)68.5°
F Fork Rake (mm) (inch)371.5
G Trail (mm) (inch)953.7
H Wheelbase (mm) (inch)104741.2
I Chain Stay Length (mm) (inch)38515.2
J Bottom Bracket Drop (mm) (inch)251
K Stack (mm) (inch)56622.3
L Reach (mm) (inch)41016.1
M Stand Over Height (mm) (inch)67226.5
N Handlebar Width (mm) (inch)76029.9
O Stem Length (mm) (inch)351.4
P Crank Length (mm) (inch)1656.5
Specs
  • Sizes
    OSFM
  • Colours
    Quicksilver
  • Frame
    ALUXX-grade aluminum, 10x135mm horizontal sliding dropouts
  • Fork
    Marzocchi Bomber DJ, 36mm stanchions, GRIP damper, 20x110mm, 100mm travel
  • Shock
    N/A
  • Handlebar
    Giant Contact TR35, alloy, 760mm, 35mm rise
  • Grips
    Giant Tactal Pro, lock on
  • Stem
    Giant Contact 35 DJ, 0-degree, 35mm
  • Seatpost
    alloy, two-bolt, 30.9x300mm
  • Saddle
    Giant Ergo Contact Trail
  • Shifters
    N/A
  • Front Derailleur
    N/A
  • Rear Derailleur
    N/A
  • Brakes
    [F] mechanical disc, [R] Shimano MT500, hydraulic TR-55 [F]180mm, [R]160mm rotors
  • Brake Levers
    Shimano BL-MT501
  • Cassette
    13t, stainless steel
  • Chain
    KMC Z1 wide
  • Crankset
    Prowheel forged, alloy, 30t, 165mm
  • Bottom Bracket
    73mm, threaded
  • Rims
    Giant TRA 2, 26", alloy
  • Hubs
    Giant Disc, 32h, [F] 20x110 [R] 10x135 thru-axle, alloy, disc
  • Spokes
    stainless, 14g
  • Tires
    Kenda Booster, 26x2.25"
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

All prices and specifications are subject to change without notice.
