This Performance-grade material features 6061 alloy with single-butted tubes to produce a strong, lightweight frameset.

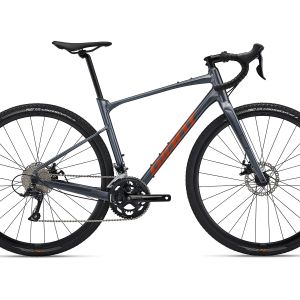

Revolt
Gravel Crusher
Ride roads, gravel or dirt with this all-new aluminum all-rounder. A composite fork gives it a smooth ride, and a flip chip lets you adjust wheelbase and tire clearance.
Key Performance Factors
Confident handling
Frame is designed with endurance positioning and shorter chainstays for precise handling, agility and control. A longer reach, shorter stem and lower bottom bracket drop improves stability on rugged terrain.
Tuned compliance
New frame features thinner, dropped seatstays to absorb road shocks and vibrations. D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.
Adaptable to the terrain
A flip chip on the rear dropout adjusts the wheelbase short for quicker handling and acceleration, or long for improved stability at speed. You can choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.
Highlights
The all-new Revolt features a lightweight ALUXX aluminum frame with updated gravel geometry including a longer reach and lower bottom bracket for added stability. A flip chip on the rear dropout adjusts wheelbase and tire clearance, and you can choose the included D-Fuse seatpost for maximum compliance or switch to a 30.9mm round or dropper post. The frame is integrated for disc brakes and it has clearance for larger tires up to 53mm.
1
Aluxx Aluminum
2
Composite Fork
Advanced-grade composite fork with an OverDrive tapered steerer tube absorbs road shock and vibrations and allows added clearance for tires up to 53mm wide.
3
D-Fuse Technology
Proprietary D-shaped seatpost and handlebar work together to dampen vibrations and absorb road shock, resulting in a smooth, compliant ride quality.
4
OverDrive
Designed to boost front-end stiffness and steering for precise handling, this oversized steerer tube technology features oversized headset bearings (1 1/4” lower and 1 1/8” upper) and a tapered steerer tube to provide optimal steering stiffness.
5
Seatpost Adaptor
New frame design allows you to switch from the proprietary D-Fuse seatpost to a standard round 30.9mm seatpost. This enables riders to choose any type of seatpost, including a dropper seatpost, depending on riding style and terrain.
6
Disc-Brake Integration
The frame and fork are engineered specifically for disc brakes for reliable braking performance in all weather and road conditions.
7
Giant Tubeless System
Integrated Tubeless WheelSystem and tires delivers improved efficiency, comfort and control in the most user-friendly and reliable system.
8
PowerCore
A massively oversized bottom bracket/chainstay area features a fully integrated, 86mm wide bottom bracket design. Asymmetric chainstays provide additional stiffness on the driveside and stability on the non-driveside.
9
Flip Chip Dropout
Allows riders to quickly adjust the geometry and rear-wheel tire clearance with eccentric, offset two-position hardware in the rear wheel dropouts.
10
Integrated Mounts
Frameset features six water bottle mounts: two on the down tube, two on the fork, plus one each on the top tube and seat tube. Also includes a special adaptor at the seatpost for mounting a rack and is compatible with third-party setups so it’s easy to customize with fenders and other accessories.
Techs & Features
Advanced Composite Technology
Giant’s High Performance Grade raw carbon material is used to produce this custom frame material in our own composite factory with a high stiffness-to-weight ratio. The front triangle of these framesets is assembled and molded as one continuous piece in a proprietary manufacturing process called Modified Monocoque Construction.
ALUXX Aluminum Technology
This Performance level frame material features 6061 alloy with single-butted tubes to produce strong, lightweight framesets for a variety of different bikes and riding styles.
D-Fuse Technology
The D-Fuse seatpost and handlebar were designed to function as a system, absorbing road shocks and vibrations so you can ride farther, faster.
Flip Chip - Dropout
Allows riders to quickly adjust the geometry and rear-wheel tire clearance with eccentric, offset two-position hardware in the rear wheel dropouts.
OverDrive
Giant’s original oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
PowerCore
A massively oversized bottom-bracket/chainstay area features a fully integrated, 86-millimeter wide bottom-bracket design (92-millimeter wide for off-road bikes). Asymmetric chainstays provide additional stiffness on the driveside and stability on the non-driveside.
Tubeless System
Fewer flat tires. Greater traction. Less rolling resistance and a smoother, faster ride. Giant’s Tubeless System makes it easier than ever to experience all these benefits.
