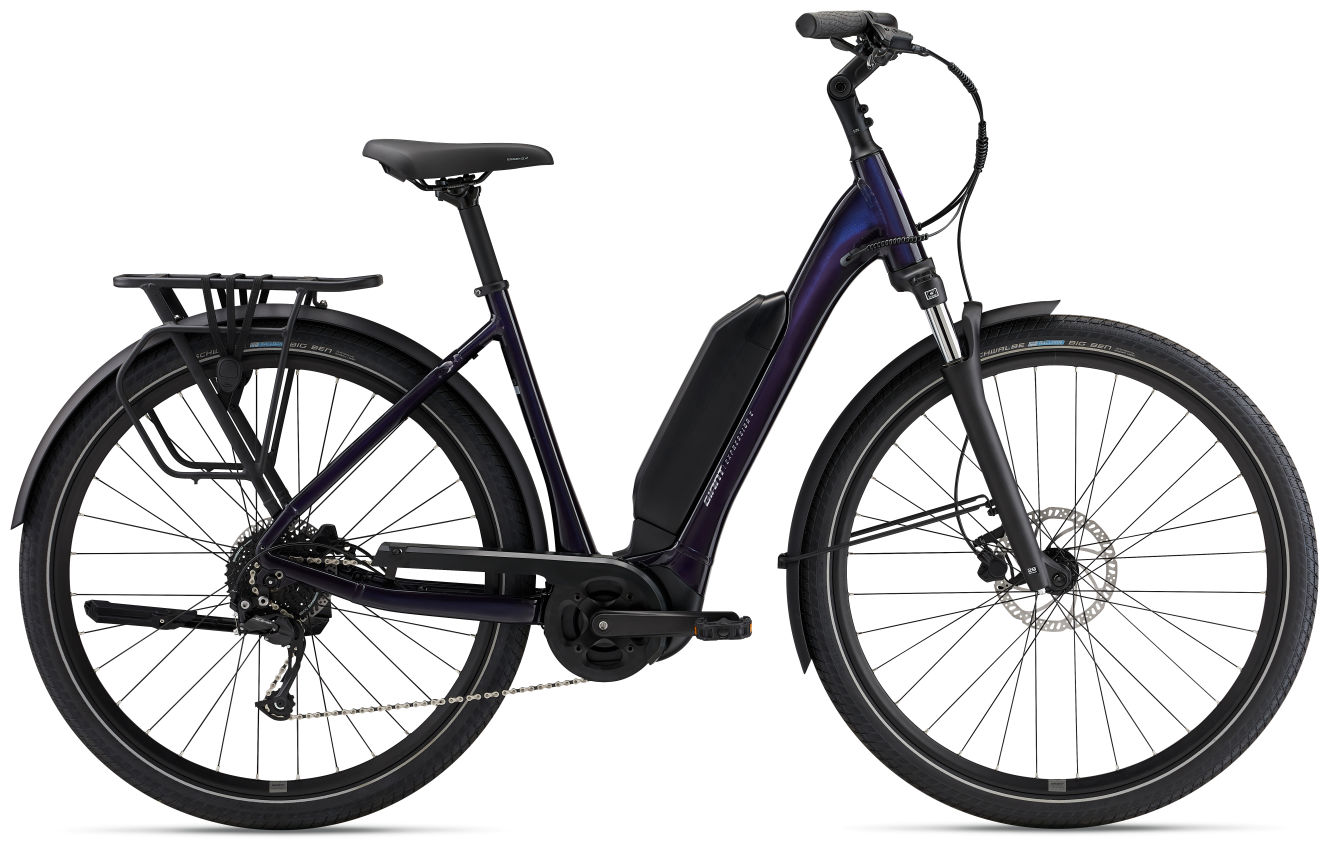

Expression E+

$3,299

Exhilarating yet relaxing. With smooth, powerful pedaling assistance and comfortable handling, the new Expression E+ is a motivating companion for commuting, fitness riding, or just pedaling for the fun of it.

Key Performance Factors

Smart support

The new SyncDrive Core 2 55Nm motor has Smart Assist mode, which uses sensors to constantly determine and deliver the optimal level of support by automatically adjusting power output.

Comfort and control

A step-thru frame design with a 63mm suspension fork, suspension seatpost, powerful disc brakes and extra-wide 55mm tires combine for smooth confidence and control on a variety of road surfaces and conditions.

HEAD TUBE CHARGE PORT

Newly designed charge port has been relocated from the motor mount to the head tube. This higher placement offers easier access and convenience for charging the battery.

Range

How far can I expect to ride on a single battery charge?

The range for a single battery charge can vary greatly depending on conditions such as the combined weight of the rider and cargo; wind resistance; tire pressure and tread profile; terrain and elevation changes; road or trail surface; outdoor temperature; maintenance of the E-Bike; and the condition of the battery.

The bar below gives an approximate range. Conditions are categorized as extreme, good and ideal. Extreme conditions typically occur when riding with a heavy load, strong headwinds or excessive climbs.

Energypak 500 / SyncDrive Core

  • Range
  • Extreme: 55 km 34 miles
  • Good: 100 km 62 miles
  • Ideal: 170 km 105 miles

Highlights

This low-step through E-bike features the new Syncdrive Core2 55Nm, a compact and lightweight motor that’s ideal for commuters and recreational riders. It delivers 55Nm of torque and utilizes Smart Assist technology, which features six sensors including slope detection and an accelerometer to produce the precise amount of power needed at all times. The result is a quiet, natural ride experience. A suspension fork helps smooth out rough roads.

Expression E+ with interactive tooltips

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  • S
      158 cm5’2”  to 180 cm5’11”
  • M
      165 cm5’5”  to 187 cm6’2”
  • L
      172 cm5’8”  to 194 cm6’4”
bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  SML
ASeat Tube Length (mm) (inch)45017.750019.755021.7
BSeat Tube Angle (degrees)73.0°72.0°71.0°
CTop Tube Length (mm) (inch)58022.859523.462024.4
DHead Tube Length (mm) (inch)1405.51606.31807.1
EHead Tube Angle (degrees)70.0°70.0°70.0°
FFork Rake (mm) (inch)441.7441.7441.7
GTrail (mm) (inch)883.5883.5883.5
HWheelbase (mm) (inch)110743.6111143.7112444.3
IChain Stay Length (mm) (inch)47018.547018.547018.5
JBottom Bracket Drop (mm) (inch)602.4602.4602.4
KStack (mm) (inch)62224.564125.265925.9
LReach (mm) (inch)39015.438715.239315.5
MStand Over Height (mm) (inch)51520.351520.351520.3
NHandlebar Width (mm) (inch)69027.269027.269027.2
OStem Length (mm) (inch)903.5903.51104.3
PCrank Length (mm) (inch)1706.71706.71706.7
QWheel Size 700C700C700C
Specs
  • Motor
    SyncDrive Core2, 55Nm, powered by Yamaha
  • Controller
    RideControl Ergo, 5 power levels plus Smart Assist auto mode
  • Display
    N/A
  • Battery
    EnergyPak 500Wh, CO2 neutral production
  • Charger
    EnergyPak 4A smart charger compact, 60% in 2:30h
  • Maximum speed
    32km/h
  • Sizes
    S, M, L
  • Colours
    Black Currant, Early Espresso
  • Frame
    ALUXX-grade aluminum, 1.125" head tube, semi-integrated battery, KSA18 kickstand mount
  • Fork
    SR Suntour Mobie A32 DC coil spring, 63mm, 15x100mm thru-axle
  • Shock
    N/A
  • Handlebar
    Alloy, mid-rise, 31.8mm
  • Grips
    Giant Comfort Ergo Microtech Plus lock-on
  • Stem
    Alloy angle adjustable
  • Seatpost
    Giant forged alloy, 30.9mm, 2-bolt micro adjustable
  • Saddle
    Selle Royal Vivo Essenza Plus
  • Pedals
    platform
  • Front Derailleur
    N/A
  • Rear Derailleur
    Shimano Alivio RD-M3100
  • Brakes
    Tektro HD-M275, hydraulic Tektro TR-52 rotors, [F] 180mm, [R] 160mm
  • Brake Levers
    Tektro HD-M275
  • Cassette
    Shimano Alivio, 9-speed, 11x36
  • Chain
    KMC e.9 Sport, e-bike optimized
  • Crankset
    forged alloy, 38t
  • Bottom Bracket
    N/A
  • Rims
    Giant GX03V, alloy, 700c
  • Hubs
    Shimano [F] HB-TC500 100x15mm thru-axle, [R] Shimano FH-QC300-HM 135mm QR
  • Spokes
    stainless
  • Tires
    Schwalbe Big Ben, 622x55, RaceGuard, ADDIX, wire bead w/ Reflective
  • Extras
    fenders, KSA18 direct mount kickstand, MIK HD rack system - bag & basket compatible
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

All prices and specifications are subject to change without notice.
