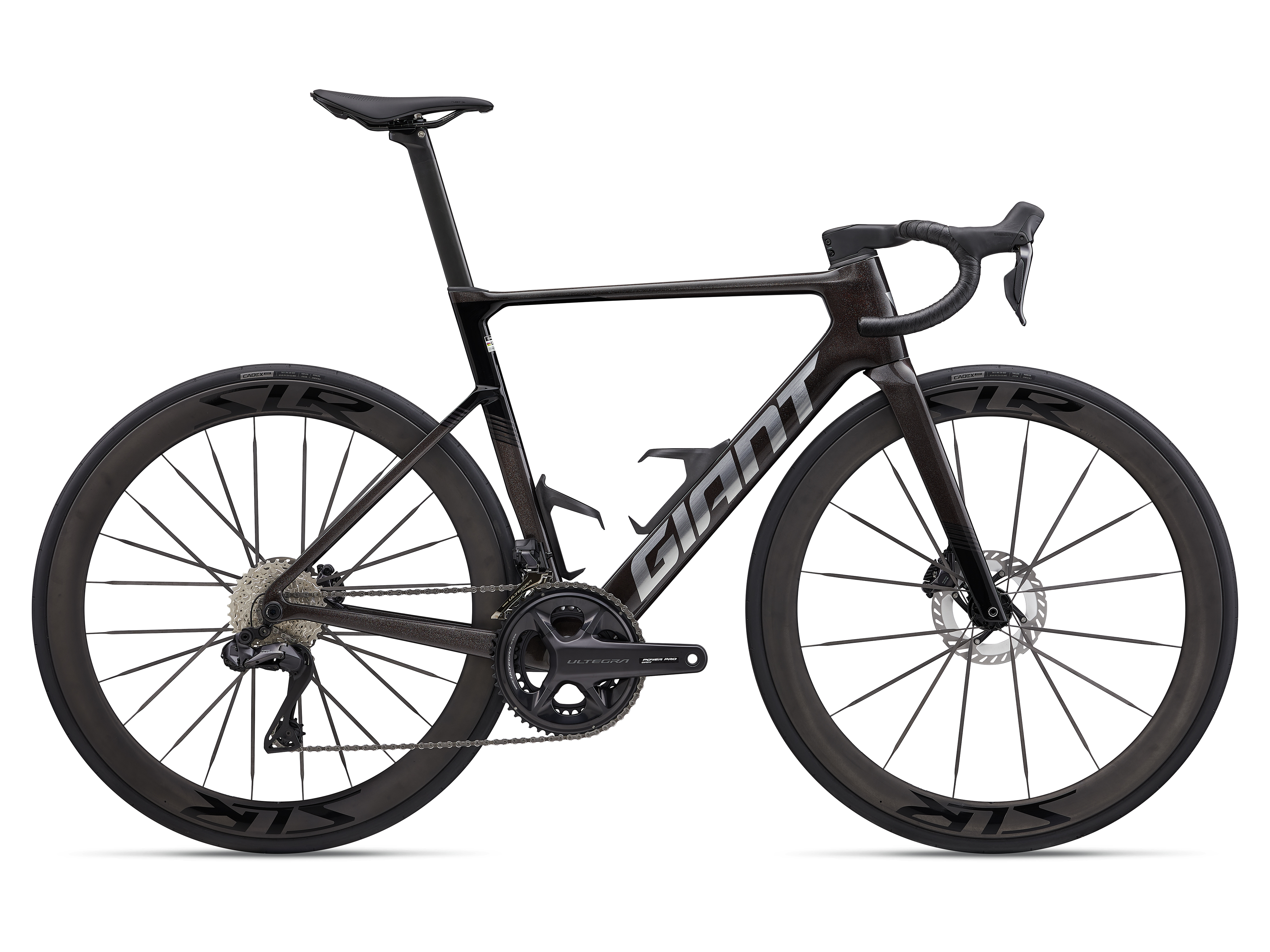

Propel Advanced Pro 0-Di2
Specificaties
| Frame | |
|---|---|
| Maten | S, M, M/L, L, XL |
| Kleuren | Abyss Teal/Fluorescent Mint, Obsidian Pulse |
| Frame | Advanced-grade Composite, 12x142mm thru-axle, disc |
| Voorvork | Advanced SL-grade Composite, full-composite OverDrive Aero steerer, 12x100mm thru-axle, disc |
| Onderdelen | |
| Stuur | Giant Contact SLR 0 Aero Integrated XS:380/360mm, S:380/360mm, M:400/370mm, M/L:400/370mm, L:420/390mm, XL:420/390mm |
| Handvatten | Stratus Lite 2.0 |
| Stuurpen | Giant Contact SLR 0 Aero Integrated XS:80mm, S:90mm, M:100mm, M/L:110mm, L:110mm, XL:120mm |
| Zadelpen | Giant Vector, composite, -5/+15mm offset |
| Zadel | Giant Fleet SL |
| Afmontage | |
| Shifters | Shimano Ultegra Di2 ST-R8170 |
| Voorderailleur | Shimano Ultegra Di2 FD-R8150 |
| Achterderailleur | Shimano Ultegra Di2 RD-R8150 |
| Remmen | Shimano Ultegra Di2 hydraulic, Shimano RT-CL800 rotors [F]160mm, [R]140mm |
| Remhendels | Shimano Ultegra Di2 hydraulic |
| Cassette | Shimano Ultegra, 12-speed, 11x34 |
| Aandrijving | Shimano Ultegra, CN-M8100 |
| Crankset | Shimano Ultegra, 36/52, with Giant Power Pro power meter XS:165mm, S:165mm, M:170mm, M/L:170mm, L:172.5mm, XL:172.5mm |
| Bottom Bracket | Shimano, press fit |
| Wielset | |
|---|---|
| Velgen | Giant SLR 0 50 Carbon WheelSystem, [F]50mm, [R]50mm |
| Naven | [F] Giant Aero Hub, CenterLock [R] Giant Aero Hub, 40T ratchet driver, CenterLock 12mm thru-axle |
| Spaken | Aero Carbon |
| Banden | CADEX Aero, tubeless, 700x28c (28mm), folding |
| Extra's | computer mount, water bottle cages, tubeless prepared, 32mm max tire size |
Adviesprijs: € 6.599,00
Geometrie
| FRAME | S | M | M/L | L | XL |
|---|---|---|---|---|---|
| Zitbuis Lengte (mm) (inch) | 50519,9 | 528,520,8 | 55421,8 | 57622,7 | 59523,4 |
| Zitbuis Hoek (degrees) | 74,0° | 73,5° | 73,0° | 73,0° | 72,5° |
| Frame Lengte (horizontaal) (mm) (inch) | 53521,1 | 55021,7 | 56522,2 | 58022,8 | 60023,6 |
| Balhoofdbuis Lengte (mm) (inch) | 1275 | 1455,7 | 1656,5 | 1857,3 | 2007,9 |
| Balhoofdbuis Hoek (degrees) | 72,5° | 73,0° | 73,0° | 73,0° | 73,0° |
| Vork Sprong (mm) (inch) | 451,8 | 451,8 | 451,8 | 451,8 | 451,8 |
| Naloop (mm) (inch) | 61,42,4 | 58,32,3 | 58,32,3 | 58,32,3 | 58,32,3 |
| Wielbasis (mm) (inch) | 97338,3 | 98038,6 | 99039 | 100639,6 | 102040,2 |
| Liggende achtervork lengte (mm) (inch) | 40515,9 | 40515,9 | 40515,9 | 40515,9 | 40515,9 |
| Bottom Bracket Drop (mm) (inch) | 722,8 | 69,52,7 | 69,52,7 | 672,6 | 672,6 |
| Stack (mm) (inch) | 53020,9 | 54621,5 | 56522,2 | 58222,9 | 59623,5 |
| Reach (mm) (inch) | 38315,1 | 38815,3 | 39215,4 | 40215,8 | 41216,2 |
| Stand Over Height (mm) (inch) | 76430,1 | 78731 | 80831,8 | 83232,8 | 84733,3 |
| Stuur breedte (mm) (inch) | 38015 | 40015,7 | 40015,7 | 42016,5 | 42016,5 |
| Stuurpen Lengte (mm) (inch) | 903,5 | 1003,9 | 1104,3 | 1104,3 | 1204,7 |
| Cranklengte (mm) (inch) | 1656,5 | 1706,7 | 1706,7 | 172,56,8 | 172,56,8 |
| Wielmaat | 700C | 700C | 700C | 700C | 700C |
