This Performance level frame material features 6061 alloy with single-butted tubes to produce strong, lightweight framesets for a variety of different bikes and riding styles.
This is an image carousel with thumbnail navigation. Select any thumbnail to view an enlarged version in a gallery modal. In the gallery, use the Next and Previous buttons to navigate between images, or close the modal to return to the thumbnails.

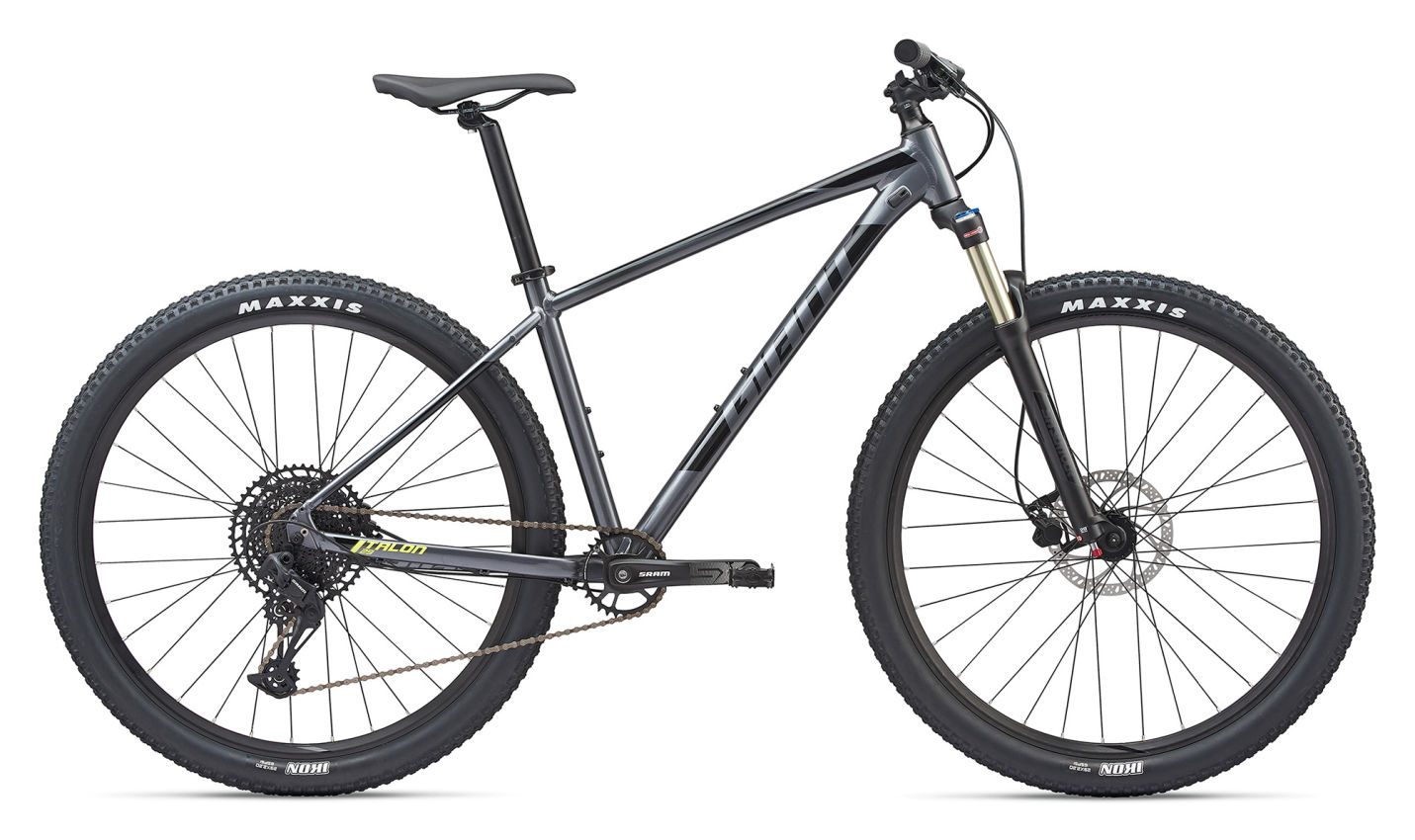

Talon 29 1
2020
Get a feel for the trail with this aluminum hardtail made for aspiring singletrack riders. It features stable, fast-rolling 29-inch wheels so you can push the pace on climbs and let loose on the descents.
Built on a lightweight ALUXX aluminum frame that features classic hardtail design plus the balanced riding characteristics of larger diameter 29-inch wheels, Talon 29 is a great choice for XC terrain. The frame geometry is specifically designed for its wheel size and a 100mm suspension fork. It’s a confident ride that’s perfect for ambitious riders who want to take their off-road skills to the next level.
Key Performance Factors
Proven alloy performance
ALUXX SL aluminum frameset is hand-built in-house by the world leader in aluminum engineering.
Balance and stability
Frame geometry is designed to optimize the balance and roll-over capabilities of 29-inch wheels.
XC control
Suspension fork offers 100mm of smooth travel for added XC control.
Techs & Features
ALUXX Aluminum Technology
Sizing Guide and Geometry
Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.
- S
- 163 cm5’4”
172 cm5’8”
- M
- 171 cm5’7” 180 cm5’11”
- L
- 179 cm5’10” 188 cm6’2”
- XL
- 187 cm6’2” 198 cm6’6”
| S | M | L | XL | ||
|---|---|---|---|---|---|
| A | Seat Tube Length (mm) (inch) | 39015,4 | 44017,3 | 49019,3 | 53521,1 |
| B | Seat Tube Angle (degrees) | 73,5° | 73,5° | 73,5° | 73,5° |
| C | Top Tube Length (mm) (inch) | 57722,7 | 59923,6 | 62224,5 | 64625,4 |
| D | Head Tube Length (mm) (inch) | 953,7 | 1054,1 | 1244,9 | 1405,5 |
| E | Head Tube Angle (degrees) | 69,0° | 69,0° | 69,0° | 69,0° |
| F | Fork Rake (mm) (inch) | 461,8 | 461,8 | 461,8 | 461,8 |
| G | Trail (mm) (inch) | 94,33,7 | 94,33,7 | 94,33,7 | 94,33,7 |
| H | Wheelbase (mm) (inch) | 111043,7 | 113244,6 | 115745,6 | 118246,5 |
| I | Chain Stay Length (mm) (inch) | 45517,9 | 45517,9 | 45517,9 | 45517,9 |
| J | Bottom Bracket Drop (mm) (inch) | 552,2 | 552,2 | 552,2 | 552,2 |
| K | Stack (mm) (inch) | 60123,7 | 61124,1 | 62924,8 | 64325,3 |
| L | Reach (mm) (inch) | 39915,7 | 41816,5 | 43517,1 | 45517,9 |
| M | Stand Over Height (mm) (inch) | 72628,6 | 76029,9 | 79831,4 | 83332,8 |
| N | Handlebar Width (mm) (inch) | 78030,7 | 78030,7 | 78030,7 | 78030,7 |
| O | Stem Length (mm) (inch) | 502 | 602,4 | 702,8 | 803,1 |
| P | Crank Length (mm) (inch) | 1706,7 | 1756,9 | 1756,9 | 1756,9 |
| Q | Wheel Size | 29" | 29" | 29" | 29" |
All specifications listed are subject to change without notice.
