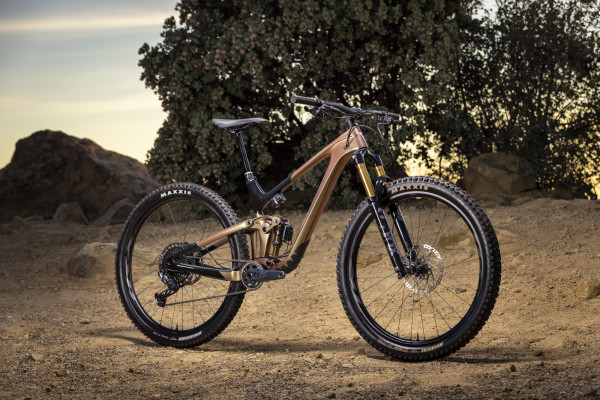

Trance X Advanced Pro 29 1

2021

$7,699 RRP

What is my size?

Share
Extra travel, extra fun. From rowdy enduro runs to backcountry missions on steep, chunky singletrack, this new composite 29er builds on the Trance 29 platform with beefed up suspension and adjustable frame geometry.

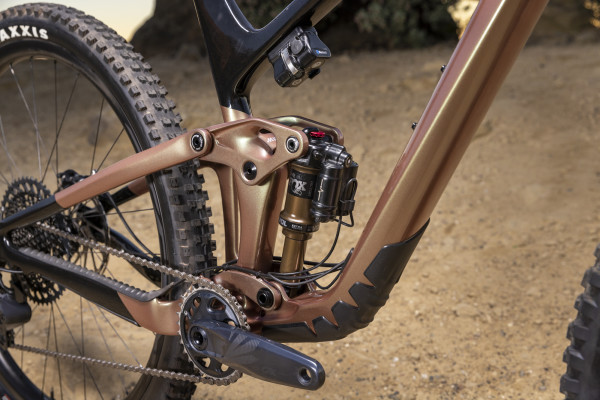

This new member of the Trance family is designed with a longer travel suspension setup for added control on the most challenging trails. The full composite frame is engineered for 135mm of rear travel and 150mm up front. The Maestro rear suspension has a two-stage adjustable Advanced Forged Composite rocker arm with a trunnion-mount shock. The flip-chip equipped rocker arm lets you adjust frame geometry for your own riding style and terrain. To fine tune the ride, you can choose a steeper or slacker headtube angle (66.2 or 65.5 degrees) and seattube angle (77.9 or 77.2 degrees), which results in either a 30mm or 40mm bottom bracket drop. And it’s all built around 29-inch wheels for added stability on rugged terrain.

Key Performance Factors

29er confidence and control

Optimised Maestro suspension for 29-inch wheels with 135mm rear/ 150mm front travel to roll over rough terrain with balance and stability, giving you more momentum for technical climbs and the confidence to fly on fast, rugged singletrack descents. Added clearance for up to 2.5-inch tyres.

Full Composite Construction

Mainframe and rear swingarm are engineered with proprietary material featuring high-performance carbon fibre and resin. Handcrafted monocoque construction makes it lightweight, stiff and compliant.

Adjustable frame geometry

Flip chip lets you change the headtube and seattube angles, along with the bottom bracket height, to fine-tune the handling. You can choose the low position (65.5/77.2 head/seattube angle and 40mm BB drop) for faster, open terrain or high (66.2/77.9 head/seattube angle and 30mm drop) for slower, tighter singletrack.

Specs
  • Sizes
    S, M, L, XL
  • Colours
    Carbon/Metallic Black
  • Frame
    Advanced grade composite main frame, Advanced grade composite rear triangle, Maestro 135mm travel w/flip chip, Boost, ISCG 05
  • Fork
    Fox 36 Float Performance Elite, GRIP2 Damper, 15x110mm Kabolt-X Axle, OverDrive steerer, 150mm travel, Boost
  • Shock
    Fox Float DPX2 Performance, Trunnion mount
  • Handlebar
    Giant Contact SLR trail rise, 35mm
  • Stem
    Giant Contact SL, 35mm, 8 degree
  • Seatpost
    Giant Contact Switch dropper, 30.9mm
  • Saddle
    Giant Romero SL
  • Pedals
    N/A
  • Shifters
    SRAM GX Eagle, 12sp
  • Front Derailleur
    N/A
  • Rear Derailleur
    SRAM GX Eagle
  • Brakes
    SRAM G2 R hydraulic disc, Fr: 200mm, Rr: 180mm
  • Brake Levers
    SRAM G2 R hydraulic disc
  • Cassette
    SRAM XG-1275 Eagle, 10-52T, 12sp
  • Chain
    SRAM NX Eagle
  • Crankset
    Truvativ Descendant Eagle, 30T
  • Bottom Bracket
    SRAM GXP DUB, press fit
  • Rims
    Giant TRX 2 29 Hookless Composite, DBL, WheelSystem, 28H
  • Hubs
    Giant TRX 2, 28H
  • Spokes
    Giant Round DBL
  • Tires
    Fr: Maxxis Minion DHF, TR, EXO, 3C Maxx Terra, WT, Folding, 29x2.5” Rr: Maxxis Dissector, TR, EXO, 3C Maxx Terra, WT, Folding, 29x2.4”
  • Extras
    Tubeless prepared, MRP AMG V2 alloy chain guide
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products with your local retailer at the time of sale if purchasing in-store. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs.

Highlights

This full-composite, fully capable trail bike is engineered with a longer-travel Maestro suspension system and progressive geometry that you can fine tune with a flip chip to suit your riding style and terrain. Here’s a look at the key technologies in the new Trance X Advanced Pro 29.

Trance X Advanced Pro 29 with interactive tooltips

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized Liv or Giant dealer to determine the correct size.
Available sizes may vary from country to country.

Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  • S
      163 cm5’4”  to 172 cm5’8”
  • M
      171 cm5’7”  to 180 cm5’11”
  • L
      179 cm5’10”  to 188 cm6’2”
  • XL
      187 cm6’2”  to 196 cm6’5”
bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
    S M L XL
    LOW | HIGH LOW | HIGH LOW | HIGH LOW | HIGH
A Seat Tube Length (mm) (inch) 43016.9 43016.9 46518.3 49619.5
B Seat Tube Angle (degrees) 77.2° | 77.9° 77.2° | 77.9° 77.2° | 77.9° 77.2° | 77.9°
C Top Tube Length (mm) (inch) 56622.3 | 56422.2 59723.5 | 59523.4 62924.8 | 62724.7 65625.8 | 65425.7
D Head Tube Length (mm) (inch) 953.7 1003.9 1104.3 1204.7
E Head Tube Angle (degrees) 65.5° | 66.2° 65.5° | 66.2° 65.5° | 66.2° 65.5° | 66.2°
F Fork Rake (mm) (inch) 441.7 441.7 441.7 441.7
G Trail (mm) (inch) 125.14.9 | 119.54.7 125.14.9 | 119.54.7 125.14.9 | 119.74.7 125.14.9 | 119.54.7
H Wheelbase (mm) (inch) 117346.2 | 117146.1 120547.4 | 120347.4 123948.8 | 123848.7 126849.9 | 126649.8
I Chain Stay Length (mm) (inch) 43817.2 | 43517.1 43817.2 | 43517.1 43817.2 | 43517.1 43817.2 | 43517.1
J Bottom Bracket Drop (mm) (inch) 401.6 | 301.2 401.6 | 301.2 401.6 | 301.2 401.6 | 301.2
K Stack (mm) (inch) 61724.3 | 61124.1 62124.4 | 61524.2 63124.8 | 62424.6 64025.2 | 63425
L Reach (mm) (inch) 42616.8 | 43417.1 45618 | 46418.3 48619.1 | 49419.4 51020.1 | 51920.4
M Stand Over Height (mm) (inch) 72928.7 | 73829.1 72928.7 | 73729 75229.6 | 76130 76029.9 | 77030.3
O Stem Length (mm) (inch) 401.6 401.6 502 502
P Crank Length (mm) (inch) 1656.5 1706.7 1706.7 1706.7
Q Wheel Size 29" 29" 29" 29"
