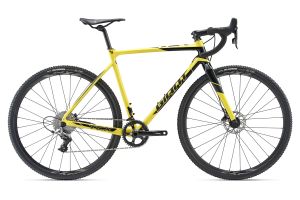

TCX SLR 1

2017

$2699 RRP

What is my size?

Share

FROM TIGHT CX COURSES TO WIDE-OPEN GRAVEL AND DIRT, THIS LIGHTWEIGHT AND SUPER VERSATILE ’CROSS MACHINE DOES IT ALL.

Move up through the field in heated cyclocross battles, or go long on gravel road epics. With a superlight ALUXX SLR aluminium frame, matched with a composite fork and 12mm front and rear thru-axles, the TCX SLR gives you smooth, confident handling on all types of terrain. Disc-brake technology boosts control on tight CX courses or wide-open dirt road descents. Symmetrical chainstays add pedaling stiffness, and the D-Fuse seatpost helps smooth out rough terrain.

  • ALUXX SLR-grade aluminium frame with D-Fuse composite seatpost
  • Advanced-grade composite fork with alloy/composite OverDrive steerer and 12mm thru-axle
  • Giant SX-2 rims, Giant Sport Tracker hubs, stainless spokes
  • SRAM Rival 1, 1x11-speed shifting
  • SRAM Rival hydraulic disc brakes

Download PDF

Sizes S, M, M/L, L
Colors Black/Blue/Red
Frame ALUXX SLR-grade aluminium with hidden rack mounts
Fork Advanced-grade composite, Hybrid OverDrive steerer
Shock N/A
Handlebar Giant Contact, 31.8mm
Stem Giant Contact
Seatpost Giant D-Fuse, Composite
Saddle Giant Contact Neutral
Pedals N/A
Shifters SRAM Rival 1
Front Derailleur N/A
Rear Derailleur SRAM Rival 1
Brakes SRAM Rival hydraulic disc, 140mm rotors
Brake Levers SRAM Rival hydraulic
Cassette SRAM PG1130, 11-32T, 11sp
Chain KMC X11
Crankset FSA Gossamer Pro, 40T, w/Giant 1x chain guide
Bottom Bracket FSA, Press fit
Rims Giant PX-2 Disc
Hubs Giant Sport Tracker Disc, 32h, [F] 12x100mm [R] 12x142mm
Spokes Stainless steel, 14g
Tires Schwalbe Super Swan, 700x35c
Weight The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All Giant bikes are designed for best-in-class weight and ride quality.

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized Liv or Giant dealer to determine the correct size.
Available sizes may vary from country to country.

XS   157 cm5’1” 167 cm5’5”
S   167 cm5’5” 173 cm5’8”
M   173 cm5’8” 177 cm5’9”
ML   177 cm5’9” 183 cm6’0”
L   183 cm6’0” 188 cm6’2”
XL   188 cm6’2” 194 cm6’4”
    XS S M ML L XL
A Seat Tube Length (mm) (inch) 47518.7 50019.7 52520.7 54521.5 55521.9 56522.2
B Seat Tube Angle (degrees) 74.5° 73.5° 73.0° 73.0° 73.0° 73.0°
C Top Tube Length (mm) (inch) 51520.3 53020.9 54521.5 56022 57522.6 59023.2
D Head Tube Length (mm) (inch) 1154.5 1305.1 1455.7 1606.3 1756.9 1907.5
E Head Tube Angle (degrees) 71.0° 71.0° 71.5° 72.0° 72.5° 72.5°
F Fork Rake (mm) (inch) 502 502 502 502 502 502
G Trail (mm) (inch) 722.8 682.7 652.6 622.4 592.3 592.3
H Wheelbase (mm) (inch) 100839.7 101439.9 101940.1 103040.6 104040.9 105541.5
I Chain Stay Length (mm) (inch) 43016.9 43016.9 43016.9 43016.9 43016.9 43016.9
J Bottom Bracket Drop (mm) (inch) 602.4 602.4 602.4 602.4 602.4 602.4
K Stack (mm) (inch) 52620.7 54021.3 55621.9 57222.5 58923.2 60323.7
L Reach (mm) (inch) 36914.5 37014.6 37514.8 38515.2 39515.6 40616
M Stand Over Height (mm) (inch) 75829.8 75829.8 80331.6 82132.3 83232.8 84333.2
N Handlebar Width (mm) (inch) 40015.7 40015.7 42016.5 42016.5 44017.3 44017.3
O Stem Length (mm) (inch) 803.1 903.5 1104.3 1104.3 1104.3 1204.7
P Crank Length (mm) (inch) 165.06.5 170.06.7 172.56.8 172.56.8 175.06.9 177.57
Q Wheel Size 700C 700C 700C 700C 700C 700C

Technologies

All specifications listed are subject to change without notice. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs.
