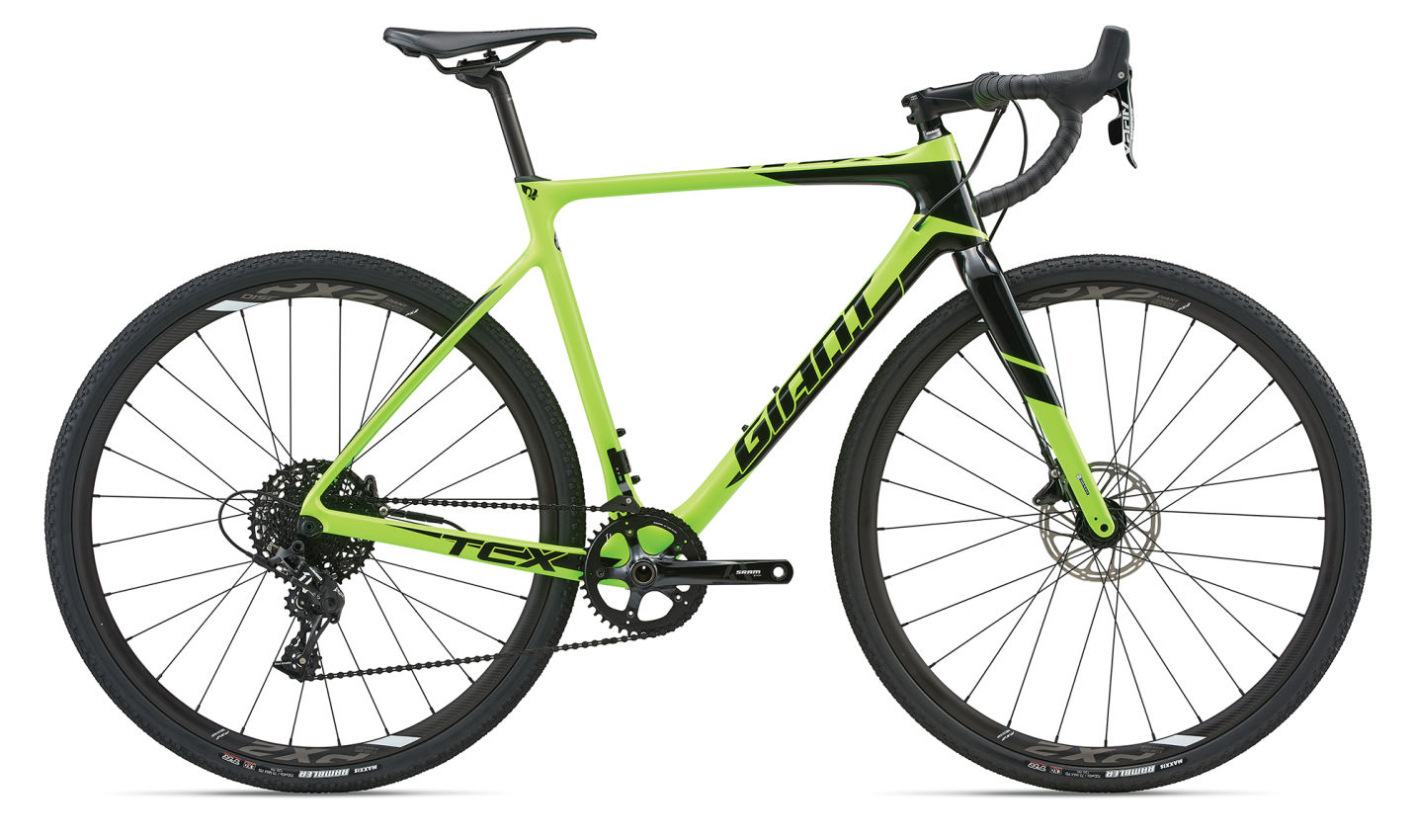

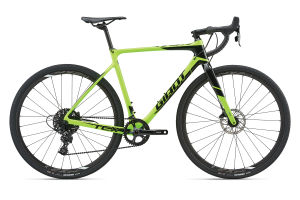

TCX Advanced SX
2018
$3,199 RRP
Recommended Retail Prices and specifications are subject to change without notice. Prices at retail stores may vary based on freight, assembly, and local operating costs. All Giant retail stores are independently owned and operated businesses.
PUSH PAST CITY LIMITS WITH CONFIDENCE AND SPEED. THIS COMPOSITE ADVENTURE BIKE CRUSHES PAVED ROADS, GRAVEL OR DIRT.
We took our pro-level cyclocross race machine and modified it for longer adventures on rough roads, gravel and dirt. With a lightweight Advanced-grade composite frame featuring flat-mount disc brakes and 12mm thru axles front and rear, the TCX Advanced SX puts you in control on rough roads and dirt. The frame has plenty of clearance for its oversized 40c tyres. The cockpit, featuring wider handlebars and a slightly shorter stem, gives you confidence and control riding through ruts and over rocks. And a wide-range 1x11 drivetrain is perfect for off-road adventure. The D-Fuse composite seatpost adds compliance, allowing you to float through washboard bumps and stay smooth all day long.
- Advanced-grade composite frame with D-Fuse composite seatpost
- Advanced-grade composite fork with composite OverDrive 2 steerer and 12mm thru-axle
- Giant PX2 Disc wheelset with Maxxis Rambler tubeless tyres
- SRAM Apex 1 1x11 speed drivetrain
- SRAM Apex 1 hydraulic disc brakes
Techs & Features
Advanced Composite Technology
Giant’s High Performance Grade raw carbon material is used to produce this custom frame material in our own composite factory with a high stiffness-to-weight ratio. The front triangle of these framesets is assembled and moulded as one continuous piece in a proprietary manufacturing process called Modified Monocoque Construction.
OverDrive
Giant’s original oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
D-Fuse Technology
The D-Fuse seatpost and handlebar were designed to function as a system, absorbing road shocks and vibrations so you can ride further, faster.
Sizing Guide and Geometry
Sizing to be used as a reference only. Please check with a local authorised dealer to determine the correct size.
Available sizes may vary from country to country.
- XS
- 157 cm5’2”
167 cm5’6”
- S
- 167 cm5’6” 173 cm5’8”
- M
- 173 cm5’8” 177 cm5’10”
- M/L
- 177 cm5’10” 183 cm6’0”
- L
- 183 cm6’0” 188 cm6’2”
- XL
- 188 cm6’2” 194 cm6’4”
| XS | S | M | M/L | L | XL | |
|---|---|---|---|---|---|---|
| A Seat Tube Length (mm) (inch) | 47518.7 | 50019.7 | 52520.7 | 54521.5 | 55521.9 | 56522.2 |
| B Seat Tube Angle (degrees) | 74.5° | 73.5° | 73.0° | 73.0° | 73.0° | 73.0° |
| C Top Tube Length (mm) (inch) | 51520.3 | 53020.9 | 54521.5 | 56022 | 57522.6 | 59023.2 |
| D Head Tube Length (mm) (inch) | 1154.5 | 1305.1 | 1455.7 | 1606.3 | 1756.9 | 1907.5 |
| E Head Tube Angle (degrees) | 71.0° | 71.0° | 71.5° | 72.0° | 72.5° | 72.5° |
| F Fork Rake (mm) (inch) | 502 | 502 | 502 | 502 | 502 | 502 |
| G Trail (mm) (inch) | 722.8 | 682.7 | 652.6 | 622.4 | 592.3 | 592.3 |
| H Wheelbase (mm) (inch) | 100839.7 | 101439.9 | 101940.1 | 103040.6 | 104040.9 | 105541.5 |
| I Chain Stay Length (mm) (inch) | 43016.9 | 43016.9 | 43016.9 | 43016.9 | 43016.9 | 43016.9 |
| J Bottom Bracket Drop (mm) (inch) | 602.4 | 602.4 | 602.4 | 602.4 | 602.4 | 602.4 |
| K Stack (mm) (inch) | 52620.7 | 54021.3 | 55621.9 | 57222.5 | 58923.2 | 60323.7 |
| L Reach (mm) (inch) | 36914.5 | 37014.6 | 37514.8 | 38515.2 | 39515.6 | 40616 |
| M Stand Over Height (mm) (inch) | 75829.8 | 75829.8 | 80331.6 | 82132.3 | 83232.8 | 84333.2 |
| O Stem Length (mm) (inch) | 803.1 | 903.5 | 1104.3 | 1104.3 | 1104.3 | 1204.7 |
| P Crank Length (mm) (inch) | 1706.7 | 1706.7 | 172.56.8 | 172.56.8 | 1756.9 | 1756.9 |
| Q Wheel Size | 700C | 700C | 700C | 700C | 700C | 700C |
Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products with your local retailer at the time of sale if purchasing in-store. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs.
