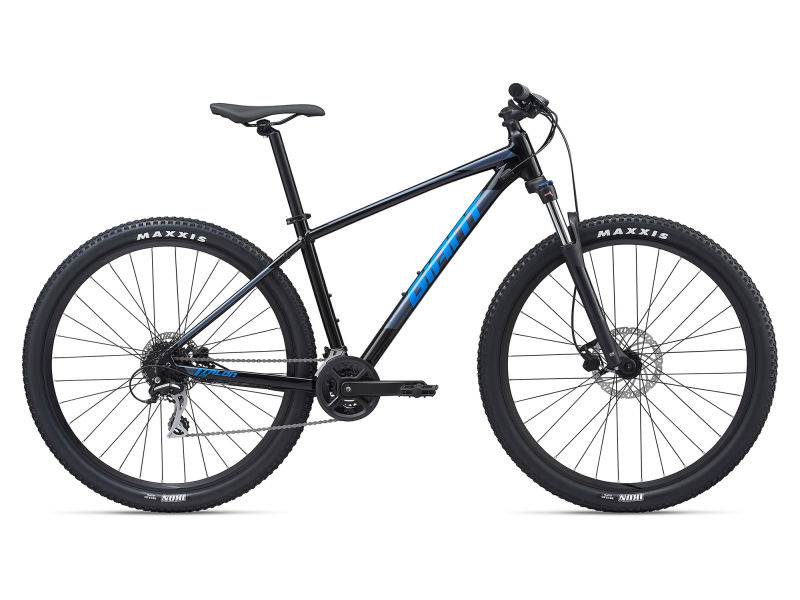

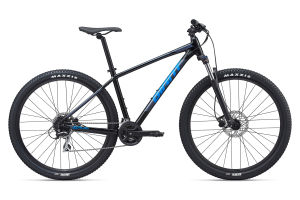

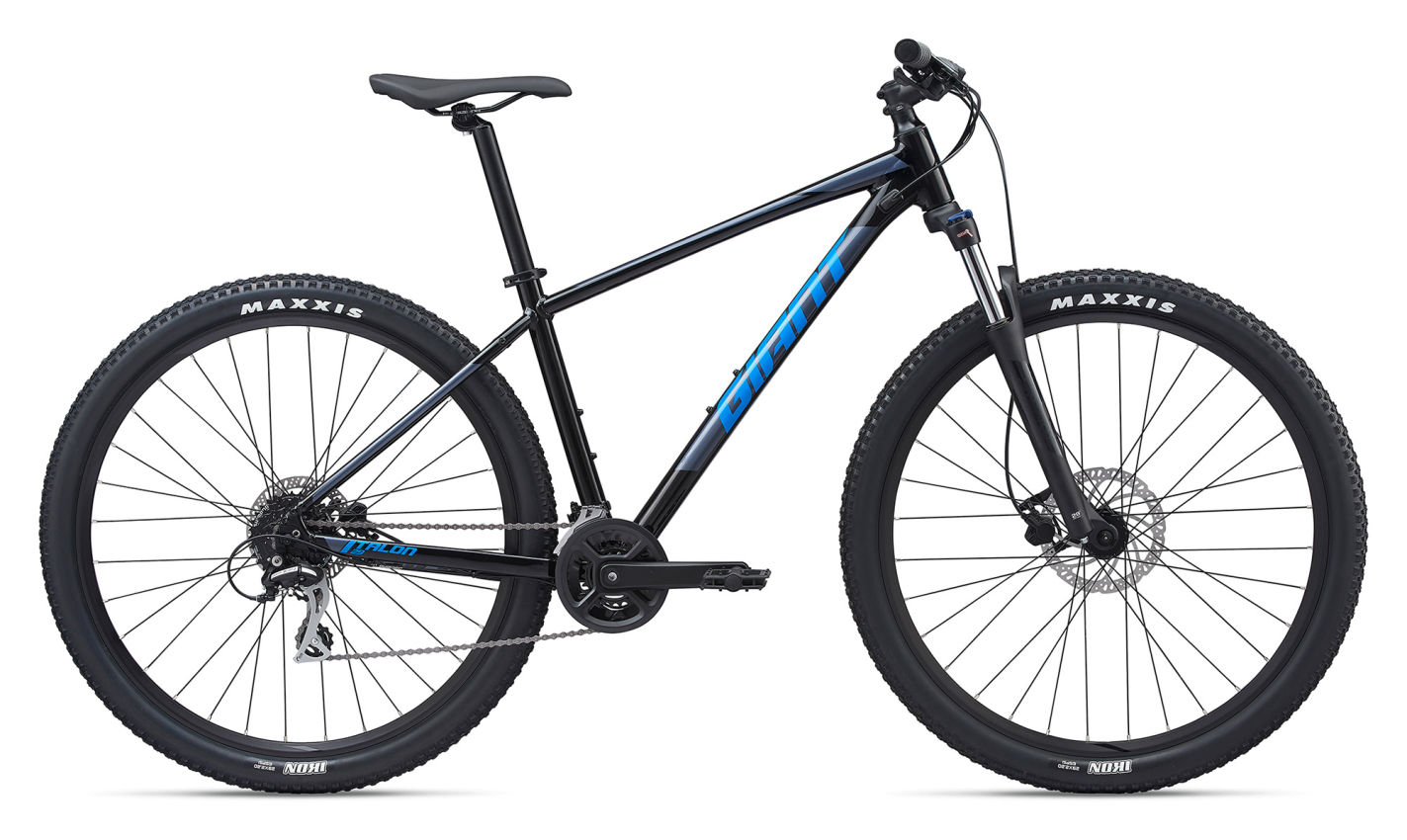

Talon 29 3
2020
Get a feel for the trail with this aluminium hardtail made for aspiring singletrack riders. It features stable, fast-rolling 29-inch wheels so you can push the pace on climbs and let loose on the descents.
Built on a lightweight ALUXX aluminium frame that features classic hardtail design plus the balanced riding characteristics of larger diameter 29-inch wheels, Talon 29 is a great choice for XC terrain. The frame geometry is specifically designed for its wheel size and a 100mm suspension fork. It’s a confident ride that’s perfect for ambitious riders who want to take their off-road skills to the next level.
Key Performance Factors
Proven alloy performance
ALUXX aluminium frameset is hand-built in-house by the world leader in aluminium engineering.
Balance and stability
Frame geometry is designed to optimise the balance and roll-over capabilities of 29-inch wheels.
XC control
Suspension fork offers 100mm of smooth travel for added XC control.
Techs & Features
ALUXX Aluminium Technology
This Performance level frame material features 6061 alloy with single-butted tubes to produce strong, lightweight framesets for a variety of different bikes and riding styles.
Sizing Guide and Geometry
Sizing to be used as a reference only. Please check with a local authorised dealer to determine the correct size.
Available sizes may vary from country to country.
- S
- 163 cm5’4”
172 cm5’8”
- M
- 171 cm5’7” 180 cm5’11”
- L
- 179 cm5’10” 188 cm6’2”
- XL
- 187 cm6’2” 198 cm6’6”
| S | M | L | XL | |
|---|---|---|---|---|
| A Seat Tube Length (mm) (inch) | 39015.4 | 44017.3 | 49019.3 | 53521.1 |
| B Seat Tube Angle (degrees) | 73.5° | 73.5° | 73.5° | 73.5° |
| C Top Tube Length (mm) (inch) | 57722.7 | 59923.6 | 62224.5 | 64625.4 |
| D Head Tube Length (mm) (inch) | 953.7 | 1054.1 | 1244.9 | 1405.5 |
| E Head Tube Angle (degrees) | 69.0° | 69.0° | 69.0° | 69.0° |
| F Fork Rake (mm) (inch) | 461.8 | 461.8 | 461.8 | 461.8 |
| G Trail (mm) (inch) | 94.33.7 | 94.33.7 | 94.33.7 | 94.33.7 |
| H Wheelbase (mm) (inch) | 111043.7 | 113244.6 | 115745.6 | 118246.5 |
| I Chain Stay Length (mm) (inch) | 45517.9 | 45517.9 | 45517.9 | 45517.9 |
| J Bottom Bracket Drop (mm) (inch) | 552.2 | 552.2 | 552.2 | 552.2 |
| K Stack (mm) (inch) | 60123.7 | 61124.1 | 62924.8 | 64325.3 |
| L Reach (mm) (inch) | 39915.7 | 41816.5 | 43517.1 | 45517.9 |
| M Stand Over Height (mm) (inch) | 72628.6 | 76029.9 | 79831.4 | 83332.8 |
| O Stem Length (mm) (inch) | 502 | 602.4 | 702.8 | 803.1 |
| P Crank Length (mm) (inch) | 1706.7 | 1756.9 | 1756.9 | 1756.9 |
| Q Wheel Size | 29" | 29" | 29" | 29" |
Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products with your local retailer at the time of sale if purchasing in-store. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs.
