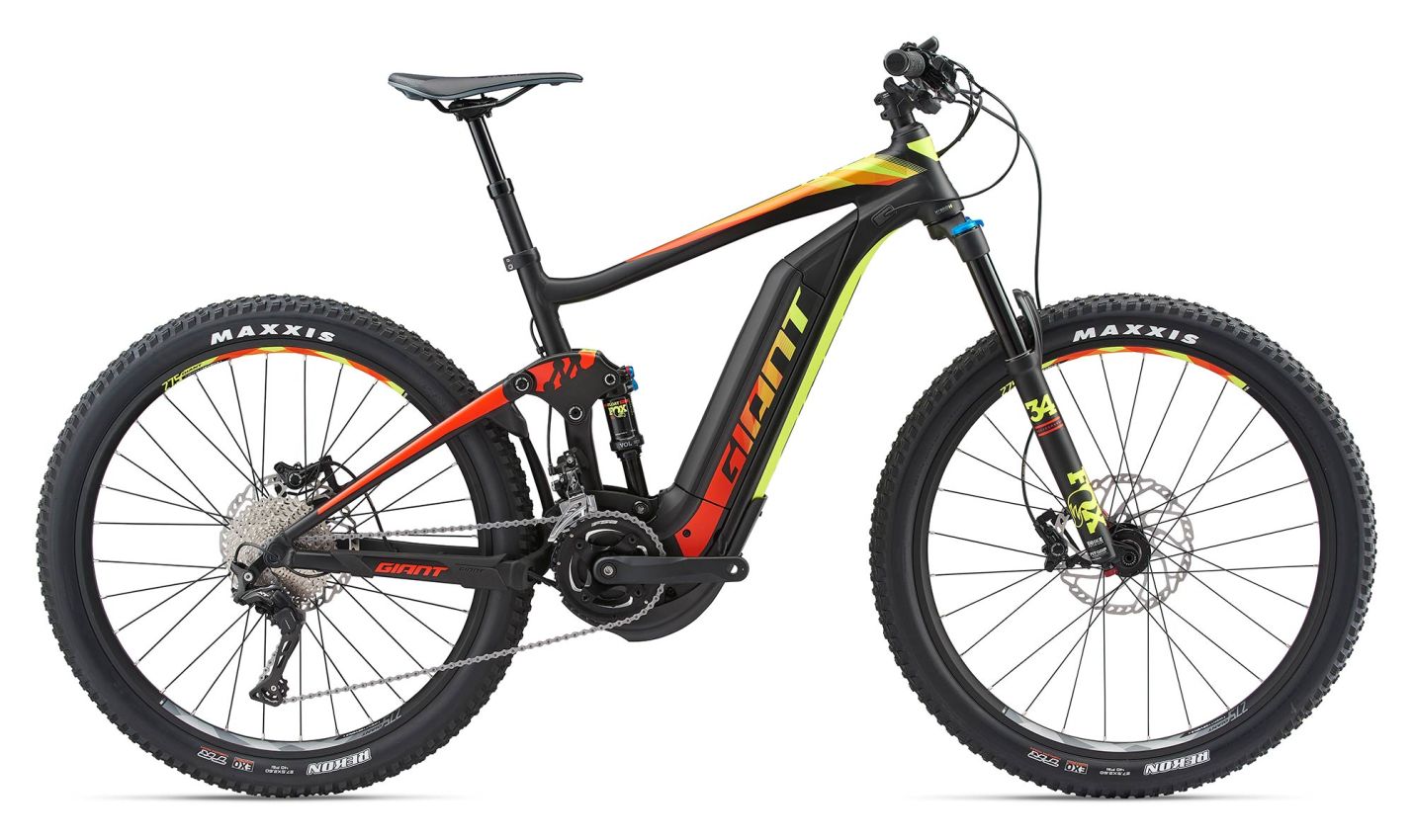

Full-E+ 1 Pro

2018

$6,499 RRP

What is my size?

Important message regarding COVID-19 restrictions for customers. While online Click & Collect orders are still being dispatched from our warehouse, if you are in a lockdown effected area, we highly recommend you contact your local retailer prior to purchasing to confirm they’re operating during any current restrictions.

Share

TAKE YOUR TRAIL RIDING TO NEW HEIGHTS. THE FULL-E+ Pro GIVES YOU THE POWER TO CLIMB HIGHER AND RIDE ALL DAY.

Powered by the new central SyncDrive Pro motor, this incredibly capable trail bike gives you a massive 80Nm torque to conquer steep climbs and enjoy every aspect of your off-road adventures. The 500WH EnergyPak is cleanly integrated with a lightweight ALUXX SL aluminium frame. Featuring 140mm of smooth Maestro suspension travel, and frame geometry that’s designed for 27.5 wheels, it’s a fun way to tackle technical singletrack trails.

  • Giant SyncDrive Pro central motor, performance tuned
  • Giant EnergyPak500 lithium-ion battery for longest range
  • Fox 34 Performance 140mm travel fork
  • Shimano XT/SLX 2x11-speed Drivetrain
  • Contact Switch remote height adjust seatpost
  • Shimano Deore hydraulic brakes with 200mm rotors
  • Colour: Black/Yellow/Red
Specs
  • Motor

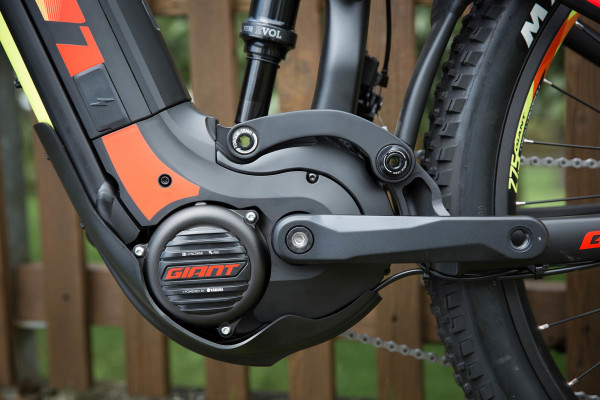

    Giant SyncDrive Pro
  • Sensors
    Giant PedalPlus 4-sensor technology
  • Display

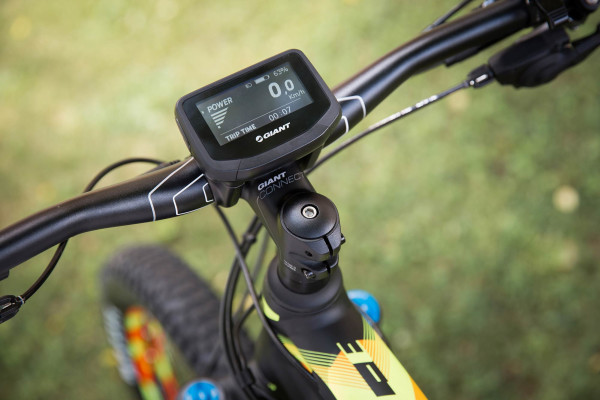

    Giant RideControl EVO, grip launch control with walk assist, mini USB charger
  • Battery
    Giant EnergyPak 500, 36V 13.8Ah Rechargeable Lithium-Ion
  • Sizes
    S, M, L, XL
  • Colours
    Black/Yellow/Red
  • Frame
    ALUXX-SL Grade Aluminium
  • Fork

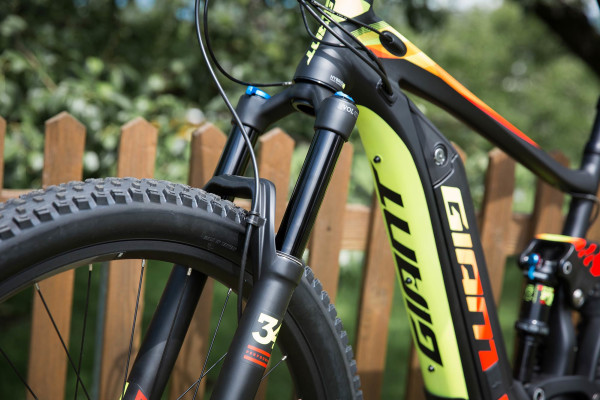

    Fox 34 Float Performance 27.5+ 140mm, EVOL, 3-position Grip Damper, tapered steerer,'Boost' 110x15QR, e-Bike optimised
  • Shock

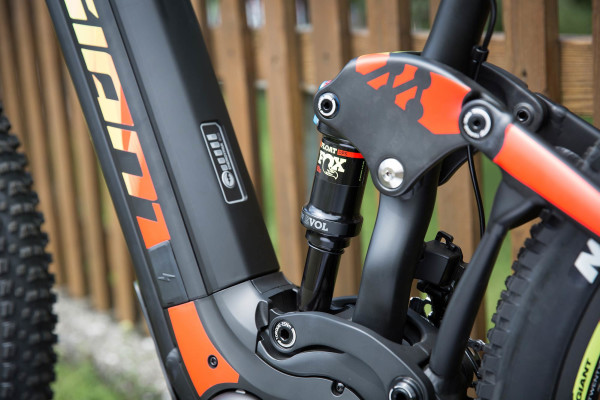

    Fox Float DPS Performance, EVOL Large Volume sleeve, 3-position lever, 185x52.5mm Trunnion mount, custom tuned
  • Handlebar
    Giant Connect TR, 31.8mm
  • Stem
    Giant Connect
  • Seatpost
    Giant Contact Switch, remote height adjust [100 S/M, 125 L, 150 XL]
  • Saddle
    Giant Contact neutral
  • Pedals
    Giant Original MTB-Sport, Aluminium Platform, CrMo, replaceable pins
  • Shifters
    Shimano SLX 2x11sp
  • Front Derailleur
    Shimano XT direct mount
  • Rear Derailleur
    Shimano XT Shadow+, 11sp
  • Brakes
    Shimano BR-M6000 200mm rotors
  • Brake Levers
    Shimano BL-M6000 i-spec II
  • Cassette
    SunRace CS-MS8 11-40T, 11sp
  • Chain
    KMC X.11e EcoProteQ, e-bike optimised
  • Crankset

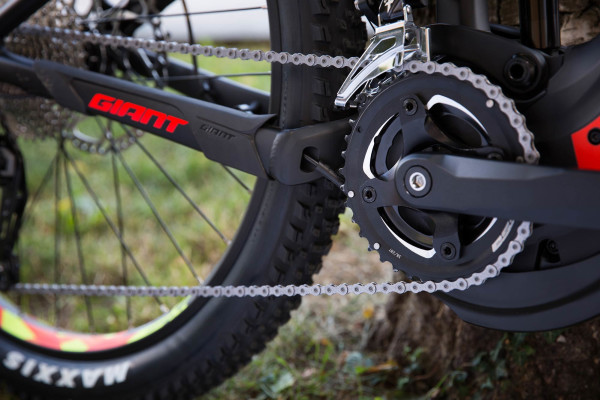

    Custom forged crankset by FSA, 28/38T, Boost 2x spider
  • Rims
    Giant GE35, Tubeless ready, 27.5" 35mm aluminium, e-bike optimised
  • Hubs
    Giant eTracker Boost, Sealed Cartridge bearing, IS 6-bolt, [F] 110x15 [R] 148x12mm Thru-axle, e-bike optimised
  • Spokes
    Giant eTracker Boost, Sealed Cartridge bearing, IS 6-bolt, [F] 110x15 [R] 148x12mm Thru-axle, e-bike optimised
  • Tires
    Maxxis Rekon 27.5x2.6" foldable, EXO protect, Dual Compound [R], 3C Maxx Grip [F], Tubeless
  • Extras
    Giant EnergyPak 3A fast charger
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products with your local retailer at the time of sale if purchasing in-store. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs.

Highlights

Powered by the new central SyncDrive Pro motor, this incredibly capable trail bike gives you a massive 80Nm torque to conquer steep climbs and enjoy every aspect of your off-road adventures. The 500WH EnergyPak is cleanly integrated with a lightweight ALUXX SL aluminum frame. Featuring 140mm of smooth Maestro suspension travel, and frame geometry that’s designed for 27.5 wheels, it’s a fun way to tackle technical singletrack trails.

2018 Full-E+ Pro with interactive tooltips

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized Liv or Giant dealer to determine the correct size.
Available sizes may vary from country to country.

Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  • S
      160 cm5’3”  to 170 cm5’7”
  • M
      170 cm5’7”  to 182 cm6’0”
  • L
      182 cm6’0”  to 190 cm6’3”
  • XL
      190 cm6’3”  to 196 cm6’5”
bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  SMLXL
ASeat Tube Length (mm) (inch)4311745017.750019.753020.9
BSeat Tube Angle (degrees)73.0°73.0°73.0°73.0°
CTop Tube Length (mm) (inch)56522.259023.26102463525
DHead Tube Length (mm) (inch)1254.91254.91405.51606.3
EHead Tube Angle (degrees)67.0°67.0°67.0°67.0°
FFork Rake (mm) (inch)421.7421.7421.7421.7
GTrail (mm) (inch)1094.31094.31094.31094.3
HWheelbase (mm) (inch)114345116846119046.9121747.9
IChain Stay Length (mm) (inch)46318.246318.246318.246318.2
JBottom Bracket Drop (mm) (inch)120.5120.5120.5120.5
KStack (mm) (inch)610246102462424.664225.3
LReach (mm) (inch)37814.940315.941916.543817.2
MStand Over Height (mm) (inch)76830.276930.380631.783232.8
OStem Length (mm) (inch)502602.4602.4702.8
PCrank Length (mm) (inch)1706.71706.71706.71706.7
QWheel Size 27.5+27.5+27.5+27.5+

Techs & Features

ALUXX SL Aluminium Technology
Maestro Suspension Technology
Hybrid Cycling Technology
SyncDrive Pro
RideControl EVO
