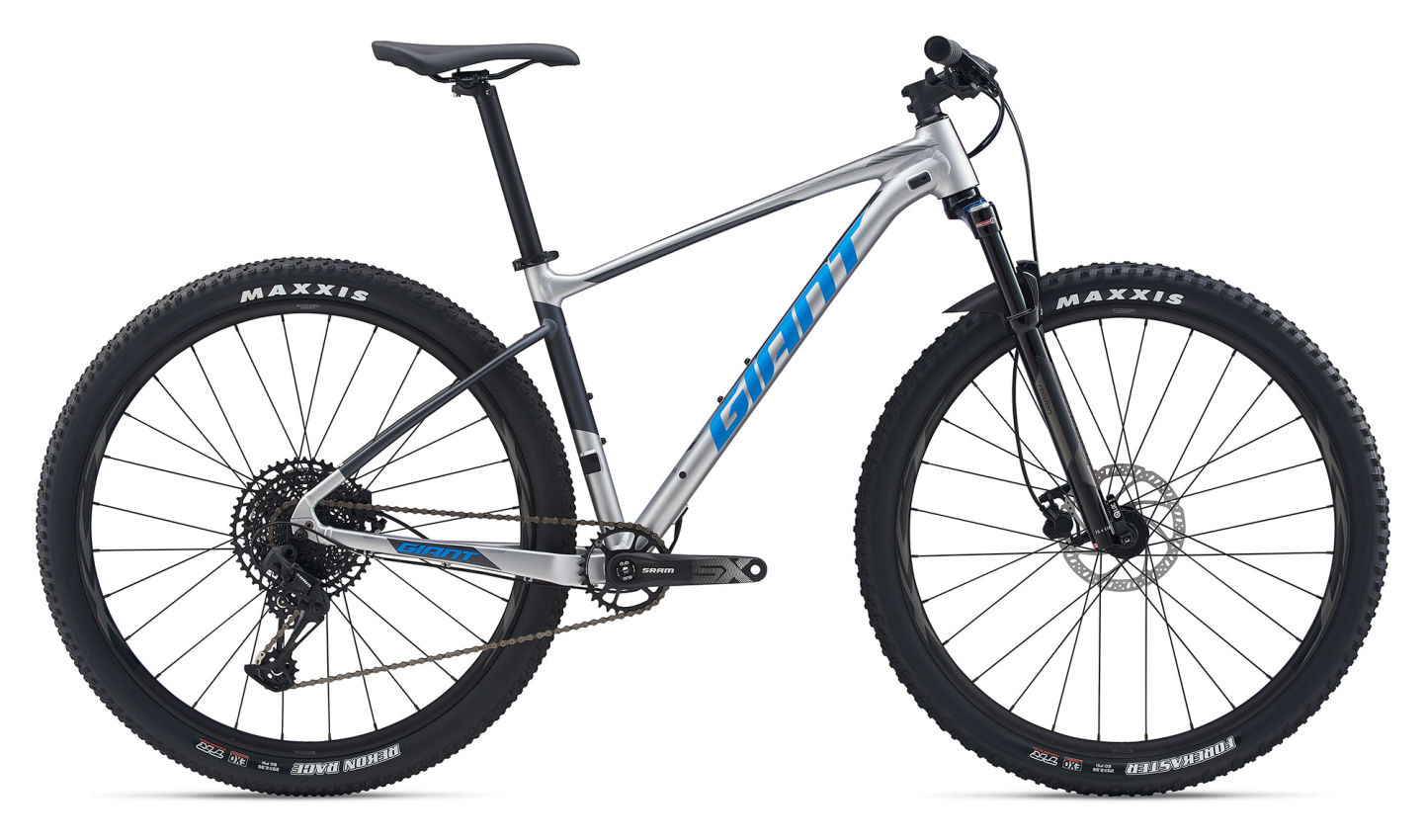

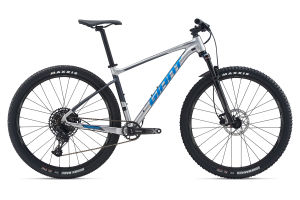

Fathom 29 2

2020

Skip to compare section

Crank up steep climbs with smooth-rolling efficiency and swoop down singletrack descents with stability and speed. This aluminium hardtail 29er delivers a balanced ride quality on XC terrain.

Built on an ALUXX SL aluminium frame, Fathom 29 features updated geometry that produces a stable ride quality for challenging XC trails. The frame is optimised for a 100mm suspension fork giving you efficiency on the climbs and total control on the descents. And a Giant WheelSystem makes it easy to experience added efficiency and control on technical terrain.

Key Performance Factors

Proven alloy performance

ALUXX SL aluminium frameset is hand-built in-house by the world leader in aluminium engineering.

Balance and stability

Frame geometry is designed to optimise the balance and roll-over capabilities of 29-inch wheels.

XC control

Suspension fork offers 100mm of smooth travel for added XC control.

Techs & Features

ALUXX SL Aluminium Technology
OverDrive

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorised dealer to determine the correct size.
Available sizes may vary from country to country.

Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  • S
      163 cm5’4” to 172 cm5’8”
  • M
      171 cm5’7” to 180 cm5’11”
  • L
      179 cm5’10” to 188 cm6’2”
  • XL
      187 cm6’2” to 198 cm6’6”
bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
 SMLXL
A Seat Tube Length (mm) (inch)39015.444517.548018.953020.9
B Seat Tube Angle (degrees)73.5°73.5°73.5°73.5°
C Top Tube Length (mm) (inch)5852360523.862524.664525.4
D Head Tube Length (mm) (inch)953.71003.91154.51305.1
E Head Tube Angle (degrees)69.0°69.0°69.0°69.0°
F Fork Rake (mm) (inch)421.7421.7421.7421.7
G Trail (mm) (inch)100.53.9100.53.9100.53.9100.53.9
H Wheelbase (mm) (inch)110043.3112144.1114245116345.8
I Chain Stay Length (mm) (inch)44217.444217.444217.444217.4
J Bottom Bracket Drop (mm) (inch)552.2552.2552.2552.2
K Stack (mm) (inch)60323.760823.962224.563625
L Reach (mm) (inch)4061642516.744117.445718
M Stand Over Height (mm) (inch)70027.673929.175129.678230.8
O Stem Length (mm) (inch)602.4702.8803.1903.5
P Crank Length (mm) (inch)1706.71756.91756.91756.9
Q Wheel Size 29"29"29"29"
Specs
  • Sizes
    S, M, L, XL
  • Colours
    Silver
  • Frame
    ALUXX SL grade aluminium
  • Fork
    SR Suntour Raidon 32 XC LO R, 100mm travel
  • Shock
    N/A
  • Handlebar
    Giant Connect trail rise, 31.8mm
  • Stem
    Giant Contact, 8 degree
  • Seatpost
    Giant Alloy 30.9mm
  • Saddle
    Giant Sport
  • Pedals
    N/A
  • Shifters
    SRAM SX Eagle, 12sp
  • Front Derailleur
    N/A
  • Rear Derailleur
    SRAM SX Eagle
  • Brakes
    Tektro HD-M275 hydraulic disc, Fr:180mm, Rr:160mm
  • Brake Levers
    Tektro HD-M275 hydraulic
  • Cassette
    SRAM PG-1210, 11-50T, 12sp
  • Chain
    SRAM SX Eagle
  • Crankset
    SRAM SX Eagle DUB, 30T
  • Bottom Bracket
    SRAM GXP DUB, press fit
  • Rims
    Giant XCT disc, tubeless
  • Hubs
    Alloy cassette, 28H
  • Spokes
    Stainless steel, 14g
  • Tyres
    Fr: Maxxis Forekaster, TR, EXO, Folding, 29x2.35” Rr: Maxxis Rekon Race, TR, EXO, Folding, 29x2.35”
  • Extras
    N/A
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products with your local retailer at the time of sale if purchasing in-store. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs.
